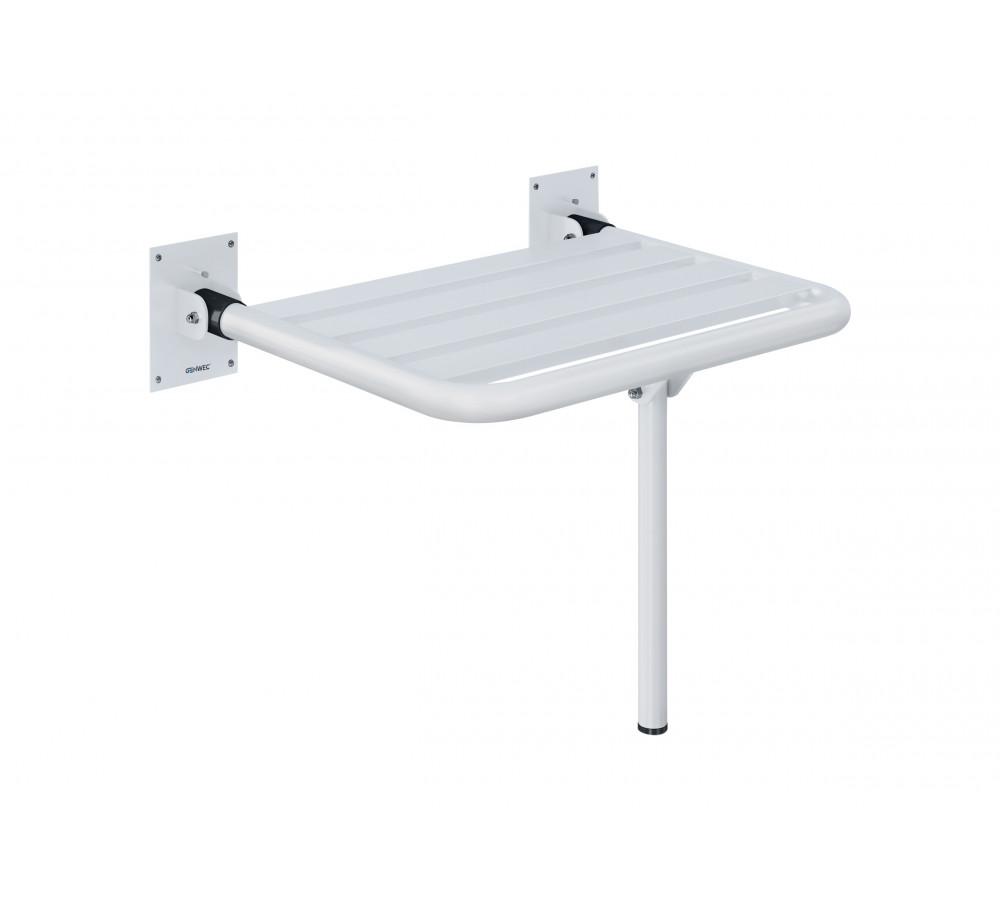

Folding seat with leg for bathrooms and showers white steel

The Folding seat with leg for bathrooms and showers, reference GW11 24 03 00 from Genwec, is an essential accessory for accessible and safe bathrooms, designed to provide comfort and durability in showers and wet areas. With a structure made of carbon steel and a white epoxy finish, this seat is prepared to support a maximum weight of 227 kg (500 lb), making it a robust and reliable solution in both domestic environments and public or commercial installations.

Design and Materials

The seat structure is entirely made of high-strength carbon steel, with a tube diameter of 32 mm and a thickness of 1.5 mm, ensuring its durability and robustness even in intensive use situations. The seat includes a foldable leg to the floor, providing extra stability and safety for the user. This design makes it an ideal option for people with reduced mobility or for those seeking greater safety in the shower.

The sitting surface is formed by four carbon steel slats, each with a thickness of 1.5 mm, offering comfortable and sturdy support. These slats are welded using TIG welding, ensuring a firm and durable connection between the components of the structure.

Functionality and Safety

The seat can be easily folded against the wall when not in use, saving space in the shower. Thanks to the pivot axis located in the steel supports, the seat remains firmly in a vertical position when folded, preventing accidental unfolding. The foldable leg of the seat is designed to provide additional support when the seat is in use, offering greater stability. Additionally, the leg is equipped with a plastic cap at the bottom, which protects the floor from scratches and adds a cushioning point.

The white epoxy finish provides the seat with high resistance to corrosion and wear, ensuring its durability in humid environments such as showers or bathrooms. This coating not only enhances the product's aesthetics but also facilitates its cleaning and maintenance.

Installation

The installation of the seat is simple and secure. It is fixed to the wall using 6 AISI304 stainless steel screws of 8x70mm and 6 nylon plugs of 10x50mm, ensuring a firm and durable attachment to the wall. It is suitable for installation on brick or similar walls, where high load-bearing capacity is ensured.

Product Specifications

• Structure material: Carbon steel
• Tube diameter: 32 mm
• Tube thickness: 1.5 mm
• Seat material: Carbon steel slats welded by TIG
• Finish: White epoxy
• Dimensions: 450 x 401 x 480 mm
• Support leg: Foldable with a plastic cap at the bottom for greater stability and floor protection.
• Wall attachment: Using 6 AISI304 stainless steel screws of 8x70mm and 6 nylon plugs of 10x50mm.
• Load capacity: Supports a maximum static and dynamic force of 227 kg (500 lb).

Advantages

1. Durability and strength: Made of carbon steel with an epoxy finish, the seat offers high resistance to corrosion and wear, ensuring a long lifespan in humid environments.

2. Enhanced safety: The foldable leg provides greater stability, while the progressive brake system prevents accidental unfolding.

3. Comfort and accessibility: Ideal for accessible showers and bathrooms, facilitating use for people with reduced mobility or those needing additional support during personal hygiene.

Applications

This folding seat with leg is ideal for installation in bathrooms of hospitals, nursing homes, public facilities, and private residences where greater safety and comfort in the shower are required. Its foldable design allows for space-saving when not in use, and its robustness ensures an adequate load capacity for most users.
