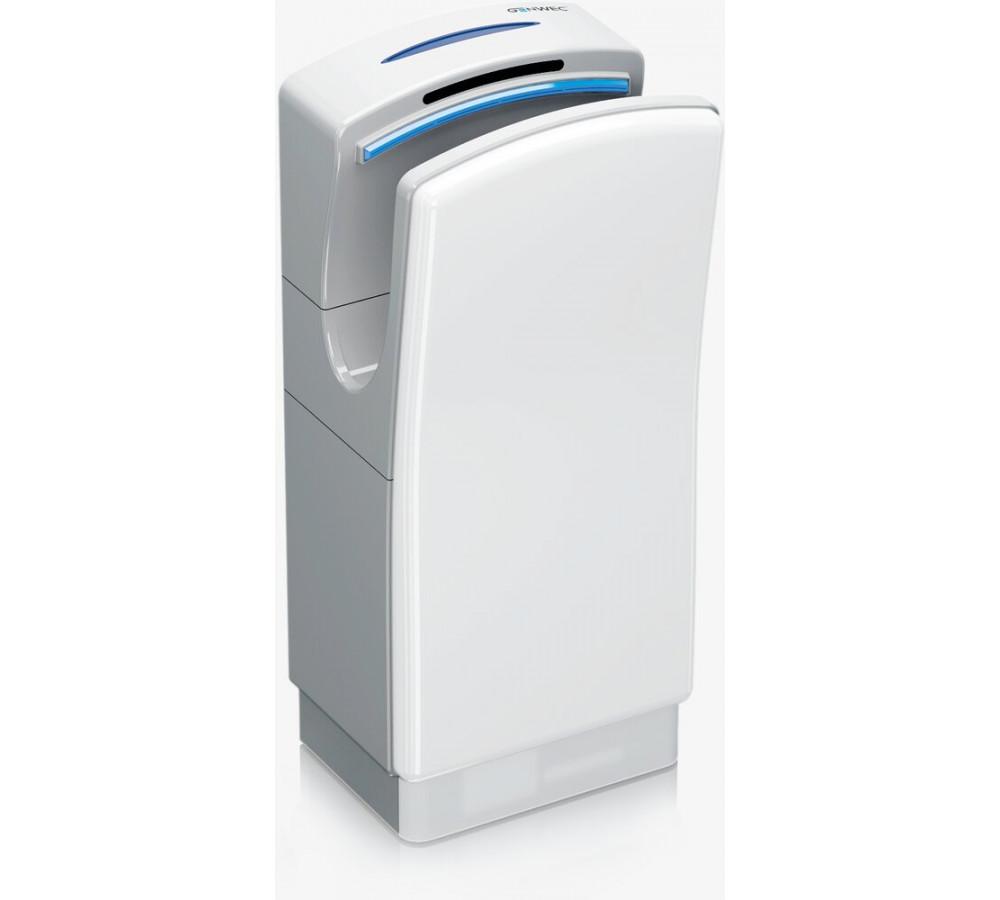

Bladeflow white ABS automatic hand dryer (brushless)

The automatic hand dryer Bladeflow by Genwec, reference GW01 15 01 00, is designed to provide fast, efficient, and extremely hygienic hand drying. Thanks to its brushless motor, which eliminates the need for frequent maintenance, and its HEPA H13 filter, this dryer is ideal for high-traffic public spaces that require a durable, low-consumption device that ensures the removal of particles and bacteria from the air. With a compact and robust design in high-strength white ABS, the Bladeflow hand dryer combines advanced technology with a modern style, perfect for restrooms in environments such as hotels, offices, shopping centers, and airports.

Fast and efficient drying

The Bladeflow hand dryer stands out for its ability to dry hands in approximately 15 seconds, making it an extremely efficient option for high-traffic facilities. The brushless motor, which reaches a speed of 35,000 r.p.m., generates an airflow of 3333 l/min (200 m³/h) with an exit speed of 396 km/h. This powerful airflow ensures quick drying, while its low energy consumption, with a total power of 1400W, makes it an eco-efficient and cost-effective option for any type of installation.

Guaranteed hygiene with HEPA H13 filter

The Bladeflow hand dryer includes a HEPA H13 filter, capable of removing up to 99.95% of particles with a minimum size of 0.3 microns, ensuring clean air free of contaminants during hand drying. This feature makes it especially suitable for places that require a high level of hygiene, such as hospitals, clinics, and health centers. Additionally, the HEPA filter ensures that the circulating air is safer for users, reducing the spread of bacteria and particles in public spaces.

Robust and functional design

The Bladeflow hand dryer features a robust casing made of 3 mm thick white ABS, which offers high resistance to wear and potential impacts. This material is durable and easy to clean, ensuring simple maintenance and a long lifespan in demanding environments. The casing is securely mounted on the wall using a carbon steel frame, with a 5-point fixation that includes a security screw behind the water tank to prevent possible tampering.

Temperature control and ability to turn off the heating element

This hand dryer also offers the option to turn off the heating element via a switch located on the side of the dryer, allowing energy consumption to be adjusted according to the needs of the environment. Additionally, the dryer is equipped with an overheating thermostat with automatic reset, ensuring its safety and optimal operation at all times. The air temperature is electronically controlled, reaching a maximum of 40ºC, providing comfortable and safe drying for users.

Technical specifications of the product:

• Manufacturer: Genwec
• Reference: GW01 15 01 00
• Model: Automatic hand dryer Bladeflow
• Material: 3 mm thick white ABS
• Dimensions: 680 x 300 x 250 mm
• Weight: 8.5 kg
• Motor: Brushless (35,000 r.p.m.)
• Total power: 1400W
  • Heating element power: 700W
  • Motor power: 700W
• Maximum consumption: 8 A
• Air speed: 396 km/h
• Airflow: 3333 l/min (200 m³/h)
• Drying time: Approx. 15 seconds
• Noise level: 76 dB at 2 meters
• Protection index: IP22
• Filter: HEPA H13, removes 99.95% of particles
• Overheating thermostat: Automatic reset
• Activation system: Infrared sensor
• Anti-vandal disconnection: 18 seconds

Recommended use

The Bladeflow hand dryer is ideal for hospitals, shopping centers, gyms, offices, and other public spaces that require fast and efficient hand drying with a superior level of hygiene. Its brushless motor, combined with its HEPA H13 filter, makes it perfect for environments where hygiene and efficiency are key priorities.
