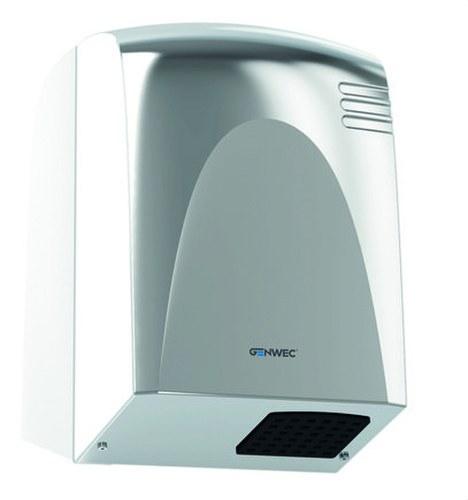

Electronic sensor hand dryer Wecflow shiny stainless steel

The Wecflow hand dryer from Genwec, reference GW01 14 04 02, is a high-performance device that combines modern design with advanced technology to provide a fast and efficient drying experience. Its 304 stainless steel casing with a shiny finish gives it an elegant look and great resistance to corrosion, making it an ideal choice for both public spaces and high-traffic environments such as shopping malls, hospitals, airports, and restaurants.

Robust and Functional Design

The body of this hand dryer is made from a single piece of 304 stainless steel with a thickness of 1.2 mm, providing unmatched robustness. This design, along with a polycarbonate protective grille and an ABS base that supports the air outlet system, ensures that the device operates efficiently even under intensive use conditions. The shiny finish not only enhances its aesthetics but also makes it easier to clean, making it more resistant to scratches and fingerprints, keeping its appearance impeccable for longer.

Sensor Activation and Brushless Motor

The Wecflow is equipped with an infrared sensor that detects the presence of hands at an appropriate distance, automatically activating the drying process. This contactless operation system is hygienic and prevents the transmission of germs, making it a safe option for areas where high standards of cleanliness and health safety are required.

The universal brushless motor has a speed of 2800 revolutions per minute (r/min), ensuring a long lifespan without the need for frequent part replacements. Additionally, the hand dryer provides an airflow of 4000 l/min (240 m³/h), with an air speed of 65 km/h, resulting in quick and efficient drying in just a few seconds.

Energy Efficiency and Safety

The Genwec Wecflow hand dryer has a total power of 1800W, with a heating element of 1740W and a motor of 60W, ensuring optimal performance without excessive energy consumption. Thanks to its electronic control system, the device automatically turns off after hands are removed from the sensor, reducing energy waste and prolonging the dryer’s lifespan.

To ensure safety, the dryer features an overheating thermostat with automatic reset, which cuts off power if the device reaches dangerous temperatures. Additionally, it complies with the IPX1 protection standard, protecting it against water splashes, ensuring its proper operation in humid environments such as bathrooms.

Noise Level and User Comfort

One of the advantages of the Wecflow is its low noise level. At a distance of 2 meters, the dryer emits only 60 dB, making it a quiet dryer compared to other similar products. This feature makes it suitable for installation in environments where noise control is important, such as hospitals, offices, and libraries.

Product Technical Specifications:

• Manufacturer: Genwec
• Reference: GW01 14 04 02
• Material: Shiny 304 stainless steel casing
• Total Power: 1800 W
• Brushless Motor: 2800 r/min
• Airflow: 4000 l/min (240 m³/h)
• Air Speed: 65 km/h
• Protection Index: IPX1 (splash resistant)
• Noise Level: 60 dB at 2 meters
• Dimensions: 355 x 255 x 153 mm
• Net Weight: 3.2 kg
• Voltage/Frequency: 220-240V, 50/60 Hz
• Maximum Current: 7.5 A
• Air Output Temperature: 65ºC (at ambient temperature of 21ºC)
• Overheating Thermostat: Automatic reset
• Protective Grille: Polycarbonate
• Base: Durable ABS

Installation and Maintenance

The Wecflow dryer is easy to install and maintain. Its wall mounting is done with 4 screws, ensuring stability during use. Maintenance is also straightforward thanks to its removable protective grille, which facilitates cleaning and prevents the accumulation of dust and dirt.
