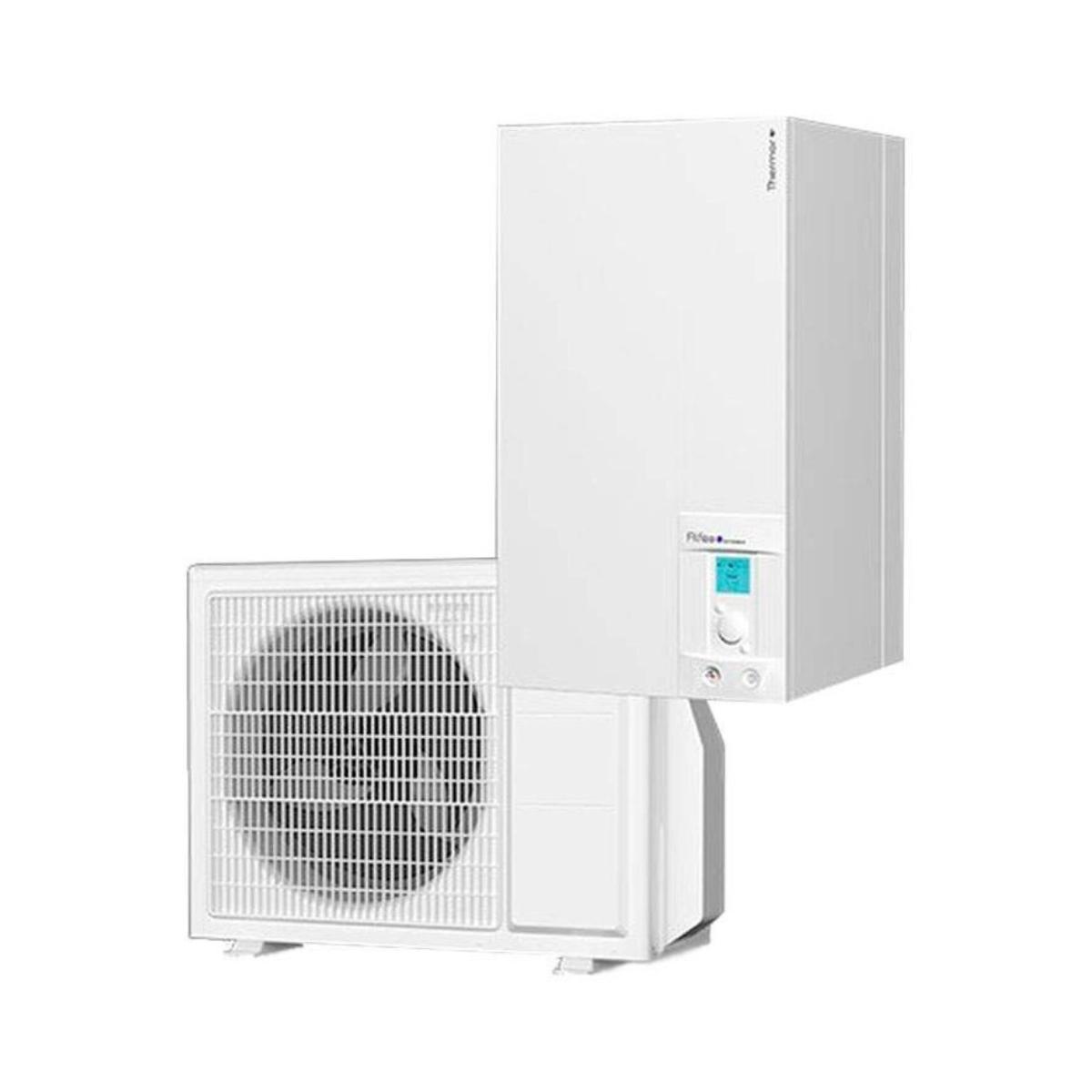

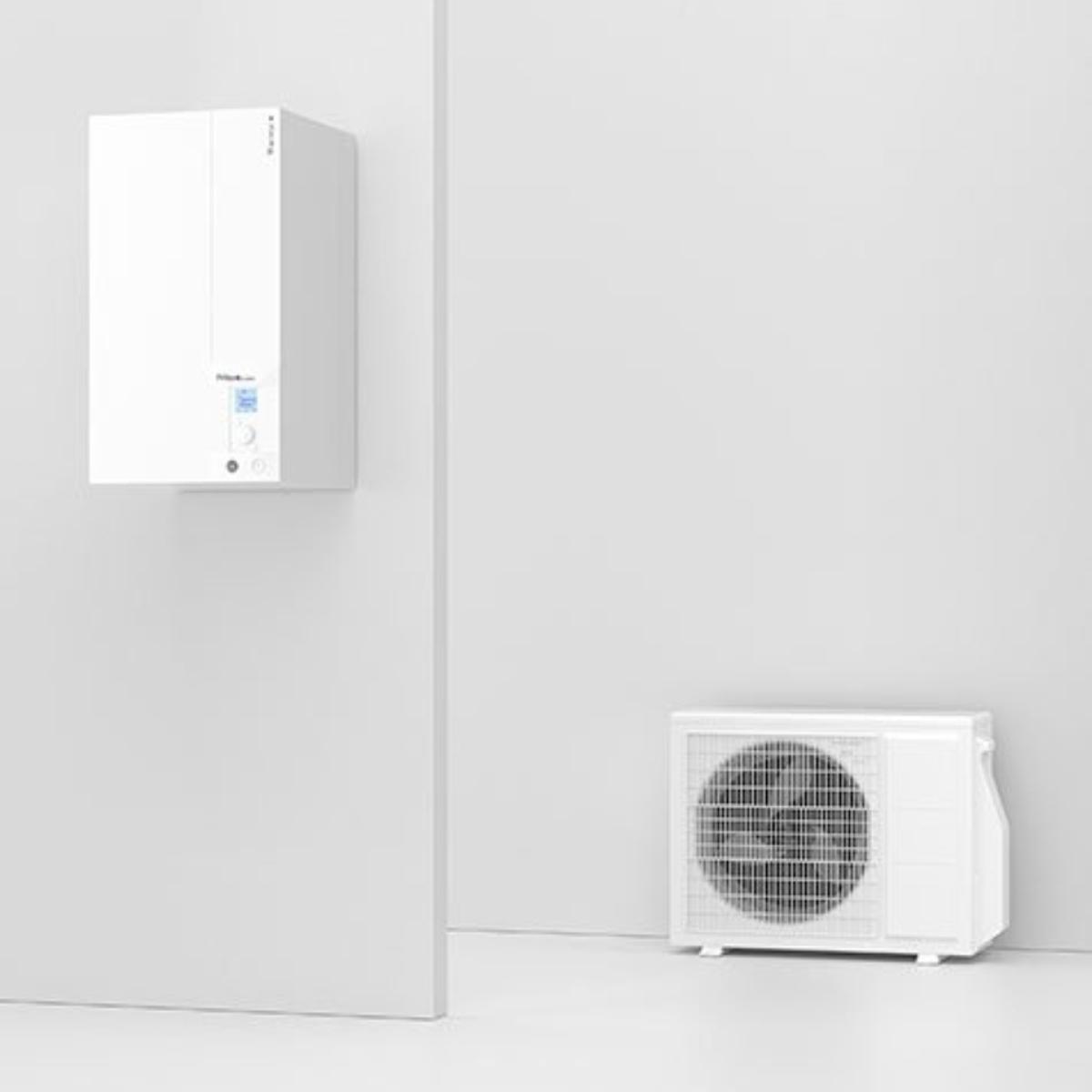

Aerothermal Thermor Alféa Extensa Ai 10

The Thermor Alféa Extensa Ai 10 aerothermal system is an advanced and efficient solution for heating and producing domestic hot water (DHW) in the home. This model combines the latest Full Inverter technology and a patented coaxial heat exchanger, providing precise control of energy consumption, adapting to the heating or cooling needs of the home at any moment. Additionally, the use of the R32 refrigerant reduces environmental impact and maximizes system efficiency, making it ideal for those seeking a sustainable and low-consumption solution.

Full Inverter Technology for Greater Energy Efficiency
The Full Inverter compressor continuously adjusts its power based on demand, optimizing energy consumption. This means that the Alféa Extensa Ai 10 only uses the necessary energy, resulting in significant savings on the electricity bill while maintaining optimal thermal comfort at all times. Furthermore, its patented coaxial heat exchanger allows for efficient water circulation without the need for additional control devices, simplifying equipment maintenance and preventing blockages.

R32 Refrigerant: Efficiency with Lower Environmental Impact
The use of R32 refrigerant is another strong point of the Alféa Extensa Ai 10. This refrigerant, much more efficient and environmentally friendly than traditional refrigerants, contributes to greater sustainability of the system, as it significantly reduces greenhouse gas emissions and improves the energy performance of the equipment.

Powerful Heating and Cooling Capacity
With a water outlet temperature of up to 55°C, the Alféa Extensa Ai 10 ensures a high level of comfort even in extreme outdoor conditions, with temperatures as low as -20°C. This makes it an ideal option for homes in cold areas that need a reliable and efficient system during the winter months. In cooling mode, its capacity also ensures a cool and comfortable environment during the summer.

Ease of Installation and Maintenance
The system has been designed to facilitate both installation and maintenance. It does not require a water filter or flow sensor, simplifying its assembly and reducing maintenance costs. Additionally, the coaxial heat exchanger immersed in the primary tank maximizes energy exchange, ensuring consistent and efficient performance.

Smart Control with Cozytouch Bridge
Connectivity is another major attraction of the Alféa Extensa Ai 10. Through the Cozytouch Bridge, users can control the system from their mobile devices, managing temperature and energy consumption remotely. This provides greater control and convenience, allowing the system to be adjusted to the needs of the home even when not present.

Technical Data of the Alféa Extensa Ai 10 Model

• Heating Power: up to 10 kW at 35°C
• COP at 35°C: 4.95
• Heating Power at 45°C: 10 kW
• COP at 45°C: 3.75
• Maximum Outlet Temperature: 55°C
• Noise Level of Hydraulic Module: 32 dB(A)
• Dimensions of Hydraulic Module: 847 mm high x 448 mm wide x 477 mm deep
• Weight of Hydraulic Module: 45 kg empty, 61 kg with water
• Noise Level of Outdoor Unit: 40 dB(A)
• Dimensions of Outdoor Unit: 996 mm high x 940 mm wide x 391 mm deep
• Weight of Outdoor Unit: 62 kg
• Refrigerant: R32 / 1630 g
• Electrical Supply: 230 V, 50 Hz
• Nominal Current: 11.2 A

Connectivity and Control

• Cozytouch Bridge Connection: allows remote control of temperature and energy consumption from mobile devices.
• Quick Start Program: facilitates the quick and intuitive startup of the system, reducing the time needed to start enjoying all its functionalities.

Additional Features and Advantages

• No need for a water filter or flow sensor: simplifies installation and reduces maintenance costs.
• Total 3-year warranty with startup included, ensuring a secure investment and long-term reliability.
• Coaxial heat exchanger immersed in the primary tank: maximizes energy exchange, ensuring consistent and efficient performance.
• Operates at outdoor temperatures of up to -20°C, making it ideal for cold climates.
