Mitsubishi Electric Ducted Air Conditioner MGPEZ-125VJA 12.1 kW 41000 BTU

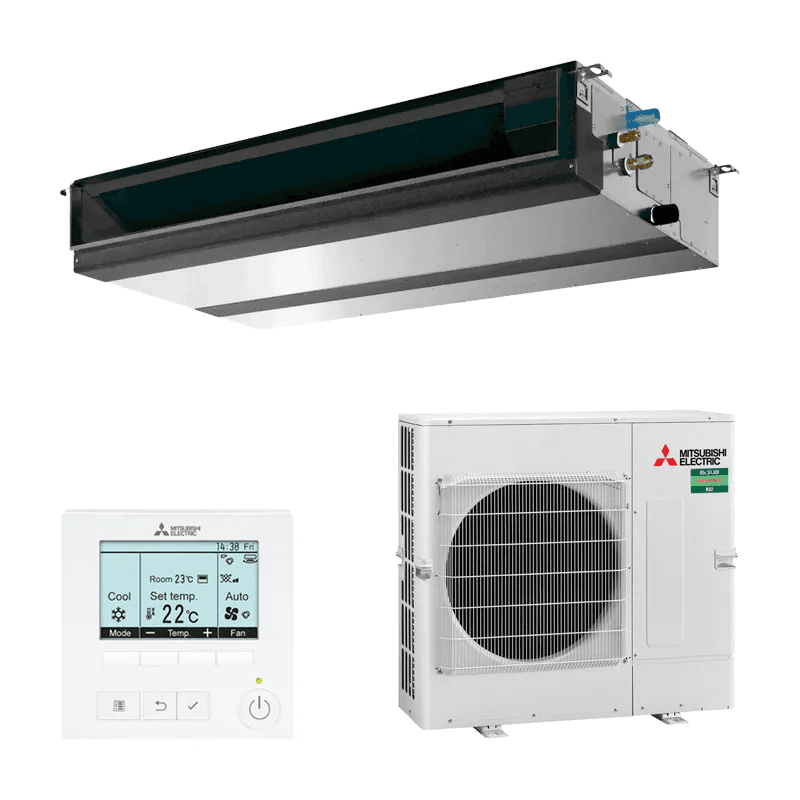

The Mitsubishi Electric MGPEZ-125VJA is a high-capacity ducted air conditioning system, designed to efficiently cool large spaces with optimized consumption and low aesthetic impact. This equipment consists of the indoor unit PEAD-SM125JA, the outdoor unit PUZ-SM125VKA, and the remote control PAR-41MAA, providing an advanced solution with high-performance technology and versatile installation.

Compact and adaptable design

With a reduced height of 250 mm, the PEAD series allows installation in false ceilings with limited space without compromising performance. Its static pressure is adjustable in five levels (35/50/70/100/150 Pa), allowing integration into long duct networks without air flow loss. Additionally, the system allows for air return configuration at the rear or bottom, offering greater installation flexibility.

Energy efficiency and high performance

The MGPEZ-125VJA offers a nominal power of 12.1 kW in cooling (min. 6.0 kW - max. 13.0 kW) and 13.5 kW in heating (min. 4.1 kW - max. 15.0 kW), ensuring optimal performance in any season. Its energy efficiency is optimized with the following coefficients:

• SEER: 2.10
• SCOP: 3.5
• EER/COP: 2.90 / 3.50

These values ensure balanced consumption, providing maximum comfort with lower energy expenditure.

Quiet operation and absolute comfort

The optimized design of the PEAD series has significantly reduced noise levels, reaching 33 dB at low speed, making it an ideal quiet option for environments requiring a comfortable atmosphere. Additionally, it incorporates an included drain pump, facilitating the evacuation of condensation water and simplifying installation.

Advanced control and smart connectivity

This system is compatible with MELCloud (requires optional module MAC-567IF), allowing remote management from mobile devices and computers. It includes the remote control PAR-41MAA, with advanced programming and adjustment options, and is compatible with the PAC-YT52CRA, a simplified remote control for intuitive management.

Key technical specifications

• Airflow indoor unit: 29.5 / 35.5 / 42.0 m³/min (Low/Medium/High)
• Adjustable static pressure: 35 / 50 / 70 / 100 / 150 Pa
• Indoor sound level: 33 / 36 / 40 dB(A) (Low/Medium/High)
• Indoor unit dimensions: 250 x 1,400 x 732 mm | Weight: 40 kg
• Outdoor unit dimensions: 981 x 1,050 x 330 mm (+40 mm) | Weight: 84 kg
• Refrigerant: R32 | Precharge: 3.60 kg
• Pipe diameter: 9.52 mm (3/8") liquid | 15.88 mm (5/8") gas
• Maximum pipe length: 30 m (vertical) / 40 m (total)
• Operating range:
  • Cooling: -15 ºC to +46 ºC
  • Heating: -15 ºC to +21 ºC

The Mitsubishi Electric MGPEZ-125VJA is an ideal choice for those seeking a powerful, efficient, and quiet climate control system, with a versatile design and advanced technology to ensure maximum comfort in large spaces.
