2x1 Air Conditioner with WiFi Samsung Cebu S2 2.5 kW 9000 BTU

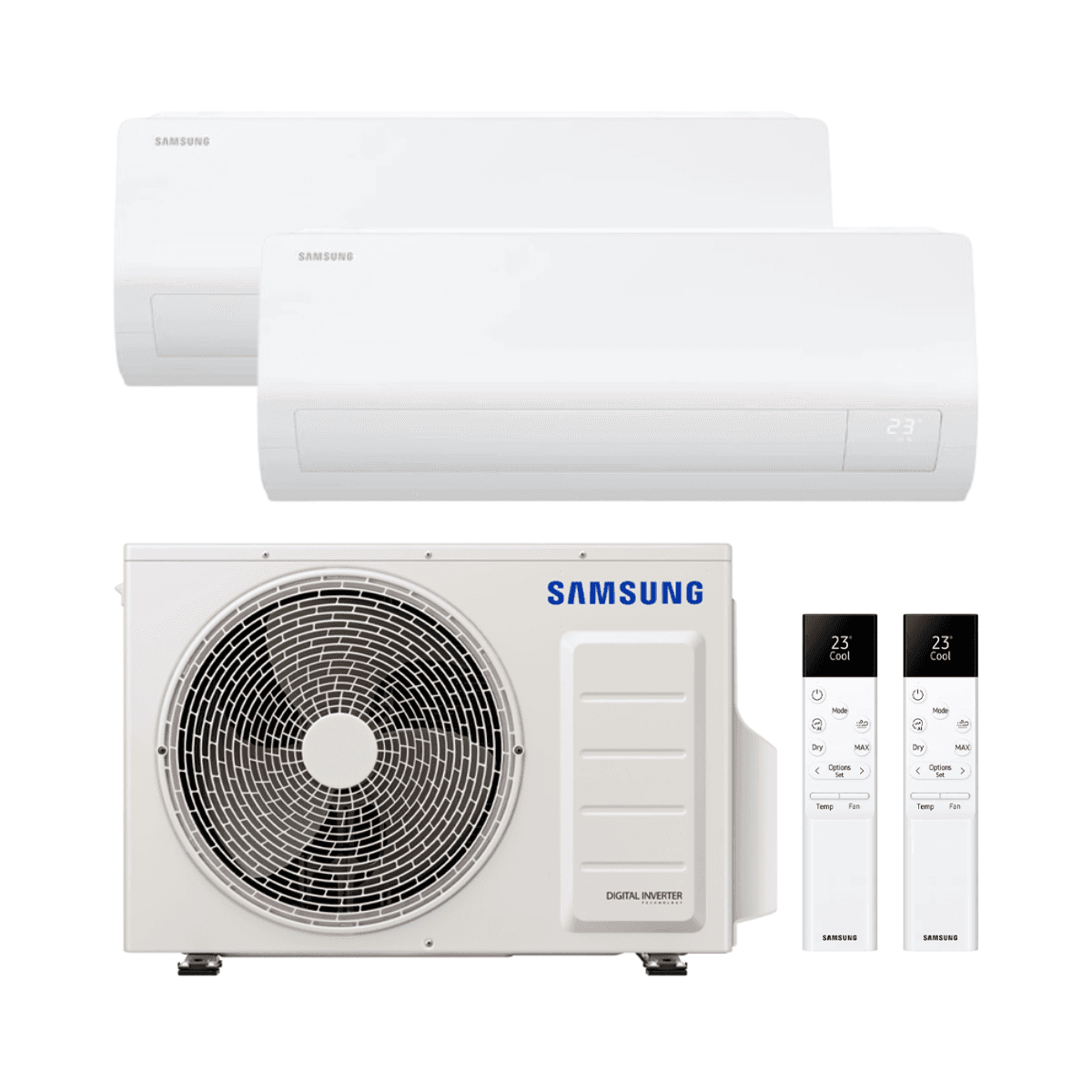

The Samsung Cebú S2 air conditioning system is a high-efficiency and performance solution designed to provide comfort in any space. This set is composed of two indoor units AR50F09C1AHNEU, one outdoor unit AJ040TXJ2KG/EU, and two remote controls, offering a complete air conditioning experience with smart control and energy-saving technology.

Maximum performance in cooling and heating

The Cebú S2 system provides a cooling capacity of 2.50 kW (8,530 BTU) and a heating power of 3.20 kW (10,920 BTU), ensuring a comfortable environment throughout the year. Its high energy efficiency is reflected in the following values:

• EER (Cooling): 4.17 W/W
• COP (Heating): 3.76 W/W
• SEER (Cooling): 7.40 W/W
• SCOP (Heating): 4.20 W/W

These values guarantee reduced consumption without compromising performance, making the equipment ideal for homes, offices, and other spaces where efficiency is a priority.

Digital Inverter Boost Compressor: efficiency and durability

The new Digital Inverter Boost compressor optimizes the operation of the equipment, reducing energy consumption and extending the system's lifespan. This technology allows for more precise temperature control, minimizing fluctuations and increasing operational efficiency.

Additionally, thanks to the compressor's modulation, constant starts and stops are avoided, resulting in less wear and quieter operation.

Smart control and AI automation

Samsung has incorporated the AI Auto Comfort technology into the Cebú S2 range, which analyzes user habits and automatically adjusts the temperature to maximize comfort and energy efficiency.

The system is fully compatible with Samsung SmartThings, allowing control from a smartphone or via voice commands with Bixby. Through the app, it is possible to:

• Turn the system on and off remotely
• Schedule operating times
• Adjust temperature and operating modes
• Receive notifications about the equipment's status and maintenance

Compact, quiet, and efficient design

The indoor units of the system feature an elegant and compact design that facilitates installation in any room:

• Indoor unit dimensions: 820 x 299 x 215 mm
• Indoor unit weight: 9.1 kg
• Sound pressure in high/low mode: 37 dB(A) / 19 dB(A)
• Sound power in high mode: 54 dB(A)

The outdoor unit has been designed to offer maximum performance with minimal noise emissions, ensuring discreet operation:

• Outdoor unit dimensions: 790 x 548 x 285 mm
• Outdoor unit weight: 32.0 kg
• Sound pressure: 45 dB(A)
• Sound power: 60 dB(A)

Its compact structure and low noise level make it ideal for installations in residential and commercial environments.

Outdoor unit AJ040TXJ2KG/EU: high performance in any condition

The outdoor unit AJ040TXJ2KG/EU features a heat pump system (HEAT PUMP) that provides heating and cooling with exceptional efficiency. Its nominal performance is 1.50 HP, with the following energy values:

• Cooling capacity: 4.00 kW
• Heating capacity: 4.20 kW
• Cooling consumption: 0.90 kW
• Heating consumption: 0.90 kW
• EER (Cooling): 4.44 W/W
• COP (Heating): 4.67 W/W

This high performance allows for quick and efficient climate control, adapting to different weather conditions.

Piping system and R32 refrigerant

The Samsung Cebú S2 system uses R32 refrigerant, a more environmentally friendly and efficient option compared to previous refrigerants. The factory charge of the outdoor unit is 0.98 kg, with an equivalence of 0.66 tCO₂e, thus reducing its environmental impact.

For installation, the system allows a maximum piping length of 30 meters and a maximum height of 15 meters, with the following connection diameters:

• Liquid pipe: 6.35 mm (1/4”) x 2
• Gas pipe: 9.52 mm (3/8”) x 2

This provides flexibility for installation in different configurations and distances.

Resistance to extreme conditions

The equipment is designed to operate in a wide range of temperatures, ensuring performance even in adverse conditions:

• Cooling mode: -10 °C to 46 °C
• Heating mode: -15 °C to 24 °C

This capability allows its use in varied climates without loss of efficiency or performance.

Compatibility and additional control options

In addition to Wi-Fi control and SmartThings compatibility, the system allows integration with centralized control solutions and wired remotes:

• Compatibility with centralized control (outdoor unit): Optional (MIM-R10N)
• Compatibility with wired remote (indoor unit): Optional (MIM-A00N)

These options provide greater versatility for use in commercial environments or specific applications where more precise system control is required.

Electric consumption and operational efficiency

The Samsung Cebú S2 air conditioning system is designed to offer maximum performance with optimized consumption:

• Power supply: 220-240V / 50Hz / 1Φ
• Working current in cooling: 2.9 A
• Working current in heating: 3.8 A
• Energy consumption in cooling: 600 W
• Energy consumption in heating: 850 W

Thanks to its high efficiency, the equipment provides significant energy savings compared to conventional systems.

Conclusion: advanced technology for efficient air conditioning

The Samsung Cebú S2 air conditioning system combines high performance, energy efficiency, and smart connectivity, offering an optimal solution for thermal comfort. Its compact design, quiet operation, and Digital Inverter Boost compressor technology make it an ideal choice for homes, offices, and businesses.

With Wi-Fi control, SmartThings compatibility, optimized efficiency, and a design adapted to various climatic conditions, this system guarantees maximum comfort with minimal energy consumption, adapting to each user's needs.
