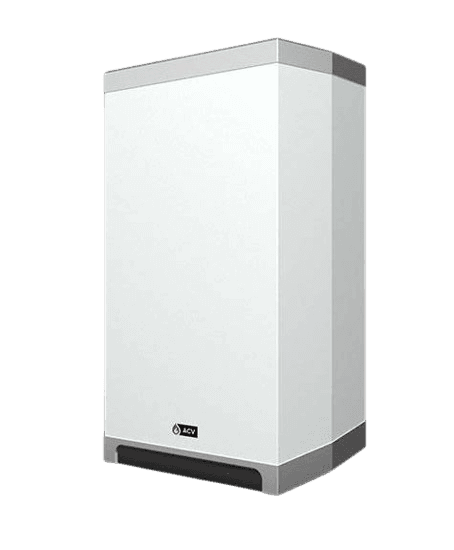

ACV KOMPAKT HR ECO 30/36 Condensing Boiler

The ACV Kompakt HR ECO 30/36 (Ref. 750147) is designed for homes with higher heating and domestic hot water demands. With a power output of up to 36 kW and state-of-the-art condensing technology, it ensures continuous comfort with low energy consumption and quiet operation.

What’s included

• ACV Kompakt HR ECO 30/36 boiler
• Connection tap set
• Flue chimney (concentric duct)
• Installation and user manual

Key features

• High power for simultaneous heating and hot water at multiple points.
• Condensing efficiency that reduces consumption and emissions.
• Quiet operation with modulating fan.
• Precise temperature control thanks to automatic modulation.
• Easy installation with front connections and complete kit.

Main technical data

• Heating output: 30 kW.
• DHW output: 36 kW.
• Approximate DHW flow rate: ~17.3 l/min at ΔT 25 °C.
• Dimensions (H × W × D): 700 × 395 × 278 mm.
• Weight: 30 kg.
• Heating temperature range: 30–80 °C.
• NOx class: 5 (low pollutant emissions).
• Sound level: ~49 dB(A).
• Power supply: 230 V / 50 Hz.
• Flue evacuation: horizontal up to ~13 m; vertical up to ~36 m.
• Gas type: natural gas or propane (conversion kit available).

Installation and compatibility

• Installation and commissioning by an authorized professional.
• Compatible with modulating thermostats and digital controllers.
• Complies with European ErP efficiency and low emission standards.

Recommended for

• Large homes or those with multiple bathrooms requiring high hot water flow.
• Installations seeking to combine power, efficiency, and quiet operation.
• Renovations replacing a conventional boiler with a modern condensing unit.
