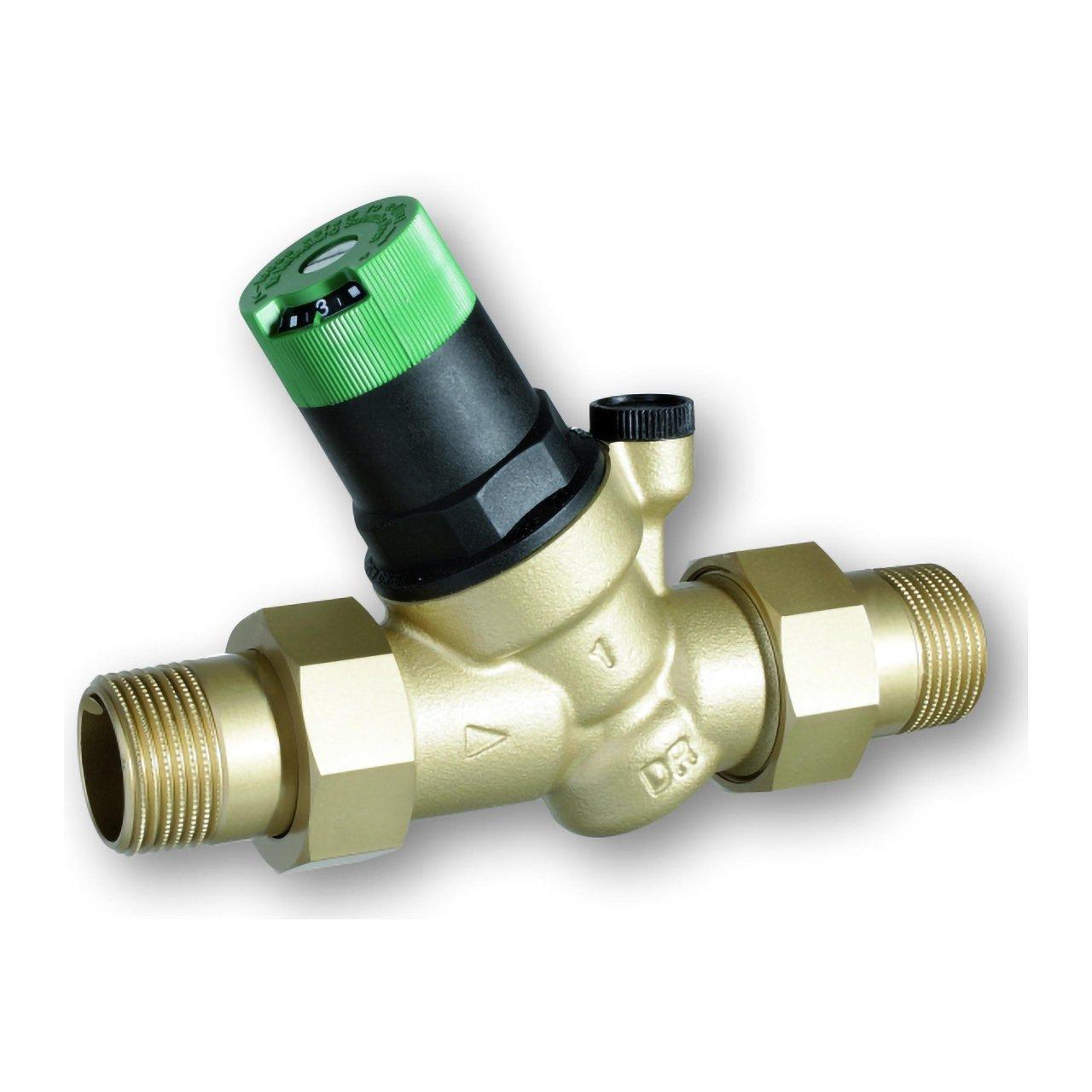

Pressure reducing valve with R3/4" threaded connections

Pressure reducing valve D05FS with pressure gauge scale R 3/4 - Kvs 3.5, for water up to 70 ºC, compressed air and nitrogen. Internal/external threaded connections. Balanced seat. Connection for pressure gauge. Adjustable outlet pressure from 1.5 to 6 bar. Brass body. Spring cap and internal parts made of high-quality synthetic material. Maximum pressure 25 bar. Pressure gauge not included. Complies with EN 1567 standard. D05FS pressure reducing valves protect domestic water installations against excessive supply network pressure. They can also be used for industrial and commercial applications within their specification. Installing a pressure reducer prevents overpressure damage and reduces water consumption. The set pressure remains constant even when there is a wide fluctuation in the inlet pressure. The reduction in operating pressure and maintenance at a constant level minimises noise in the installation.
