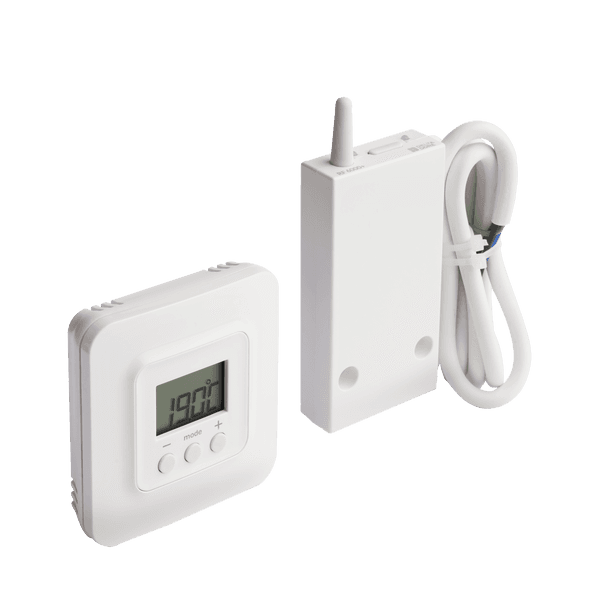

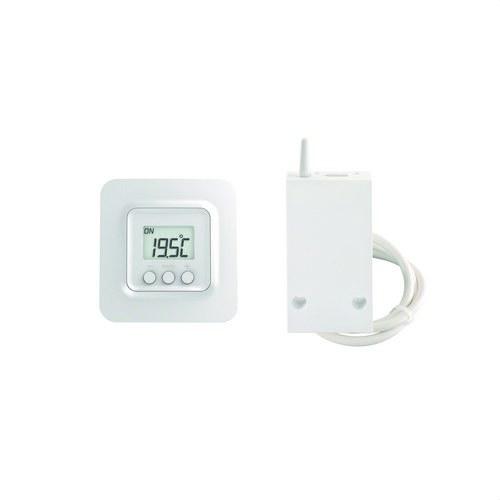

Delta Dore Tybox 2300 Radio Room Thermostat

The Delta Dore Tybox 2300 radio room thermostat, reference 6053081, is an advanced solution for efficiently and comfortably managing non-reversible heating systems, such as boilers, pellet stoves, heat pumps, and zone valve systems. This wireless thermostat stands out for its ability to manage and program heating remotely via the Delta Dore connected gateway, allowing control through mobile applications or voice assistants, providing greater flexibility and convenience.

Wireless control and flexibility in placement

The Tybox 2300 is a radio thermostat that can be placed anywhere in the home, offering comfortable and flexible temperature control. This ensures that the temperature is optimally regulated based on the area where the thermostat is located, improving both comfort and energy savings. Its wireless connection has a range of up to 300 meters in open field, ensuring stable connectivity even in large spaces.

Advanced programming and remote control

This thermostat is compatible with the Delta Dore connected gateway, allowing remote management and programming through a mobile application or via voice assistants, such as Alexa or Google Assistant. With this feature, users can adjust the temperature, turn the heating on or off, and create custom programs to maximize energy savings and comfort without having to be physically present at the location.

The Tybox 2300 allows for anticipation of heating start when connected to the gateway, adjusting the system so that the temperature reaches the desired level just when needed, which increases system efficiency and reduces unnecessary energy consumption.

Advanced regulation and savings functions

The Delta Dore Tybox 2300 allows for two types of regulation:

• PID (Proportional Integral Derivative): An advanced regulation that progressively adjusts the temperature to ensure a constant and precise temperature.
• On/Off: A simpler option that activates or deactivates the heating based on the desired temperature.

The thermostat also includes a window open detection feature, which automatically lowers the temperature when an open window is detected (compatible with Delta Dore opening detectors), preventing energy waste and optimizing heating savings.

Additional features and safety

The Tybox 2300 has a key lock function, making it ideal for shared spaces or children's rooms, preventing accidental changes to the settings. This ensures that the system maintains its optimal configuration without interruptions.

Highlighted technical features:

• PID or On/Off regulation: Allows precise temperature adjustment or simply activating/deactivating the heating.
• Remote management via app: Compatible with the Delta Dore connected gateway for remote control and through voice assistants.
• Window open detection: Saves energy by automatically reducing the temperature when an open window is detected.

Technical data

• System control: Boilers, pellet stoves, non-reversible heat pumps, circulators, or zone valves.
• Power supply type:
  • Emitter: 2 Alkaline LR03 batteries (included).
  • Receiver: Powered by 230 V mains.
• Range: Up to 300 meters in open field.
• Dimensions:
  • Emitter: 84 mm high x 80 mm wide x 21 mm deep.
  • Receiver: 102 mm high x 54 mm wide x 20 mm deep.
• Operating temperature: Between -10°C and 40°C.
• Advanced functions: Key lock, remote control, window open detection, heating anticipation.

Installation and maintenance

The Delta Dore Tybox 2300 is designed for easy indoor installation, both for the emitter unit and the receiver. The receiver requires a 230 V mains power supply, while the emitter operates on 2 LR03 alkaline batteries, making it a wireless and portable option within the home.

Thanks to its intuitive interface and compatibility with the connected gateway, control and programming are very simple, allowing the user to adjust the temperature and configure heating remotely and automatically.

Highlighted advantages:

• Remote and voice control: With the Delta Dore connected gateway, you can manage heating from your smartphone or voice assistant.
• Energy savings: Window open detection and PID regulation optimize energy consumption.
• Easy installation and use: The wireless design and advanced functions ensure simple and efficient handling.

Applications

The Delta Dore Tybox 2300 is ideal for homes seeking efficient and flexible control of their heating system, allowing remote management and programming of the temperature. It is perfect for non-reversible systems such as boilers and pellet stoves, and offers a range of advanced functions that enhance both comfort and energy savings. Additionally, its compatibility with voice assistants and remote management makes it ideal for connected homes looking to automate their climate control system.
