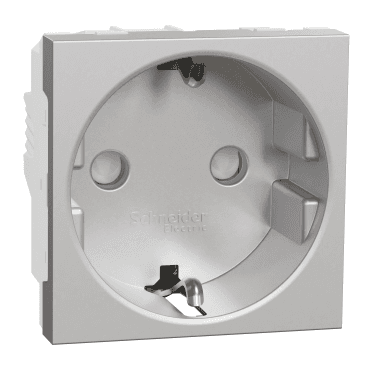

Schuko Socket Base Aluminium New Unica Studio

The Schneider Electric New Unica Studio Schuko Socket Outlet in aluminium finish is a sophisticated and safe solution for your electrical installations, combining design and functionality in a single product. This socket outlet, part of the New Unica Studio range, stands out for its robustness and modern aesthetics, perfectly adapting to any type of environment, whether residential or commercial.

With a 2P+E pole configuration (two poles plus earth) and a Schuko CEE 7/3 outlet standard, this socket outlet is designed to offer safe and efficient performance in AC electrical networks of 250 V and 50/60 Hz. The socket supports a nominal current of 16 A, making it suitable for a wide range of domestic and professional applications, providing a reliable solution for connecting electrical devices.

One of the main safety features is the inclusion of a shutter, which protects against the accidental insertion of unwanted objects into the terminals, making this socket especially safe in homes with children or in high-traffic environments. The mounting system is flush, ensuring the socket aligns perfectly with the wall, offering a clean and discreet installation.

The installation of the socket outlet is quick and easy thanks to its snap-fit system. The screw terminals allow for a secure and reliable connection of cables with a cross-section of up to 4 mm², both in rigid and flexible cables. Additionally, this socket is designed to withstand up to 10,000 electrical cycles with a power factor of 0.8, ensuring a long service life, even in intensive applications.

The aluminium finish not only offers a modern and elegant aesthetic but is also designed to withstand the wear and tear of daily use. The surface is treated with a layer of paint that ensures its durability and maintains its impeccable appearance over time. Furthermore, its compact design, with dimensions of 45 mm width, 45 mm height, and 40 mm depth, allows it to be easily integrated into any space without compromising style or functionality.

Another outstanding feature of this Schuko socket is its chemical resistance. It is designed to withstand exposure to a wide range of substances, including alcohol (70% and 96%), lactic acid, diluted ammonia, diluted bleach, and hydrogen peroxide, among others. This makes it an ideal choice for environments where frequent maintenance with cleaning products is required, such as offices, kitchens, hospitals, or public areas.

From an electrical standpoint, the Schuko socket has an insulation resistance greater than 5 MOhm at 500 V and can withstand a dielectric voltage of up to 2000 V, ensuring excellent protection against possible short circuits or electrical faults.

Highlighted technical features:

• Pole configuration: Schuko 2P+E
• Nominal current: 16 A
• Nominal voltage: 250 V
• Frequency: 50/60 Hz
• Electrical durability: Up to 10,000 cycles
• Installation: Snap-fit with screw terminals
• Chemical resistance: Resistant to alcohol, bleach, ammonia, and more
• Protection: Safety shutter
• Dimensions: 45 mm width, 45 mm height, 40 mm depth
• Material: Polycarbonate (PC) with CuZn37 terminals and CuZn33 earth contacts
• Standards: Compliant with IEC 60884-1, UNE 20315-1-1, UNE 20315-1-2 and DIN VDE 0620-1

The New Unica Studio Schuko Socket in aluminium by Schneider Electric is the perfect choice for those seeking a high-quality solution, with sophisticated design and optimal functionality. Its ability to withstand demanding conditions, combined with its ease of installation and safety features, makes it an ideal option for any type of electrical project.
