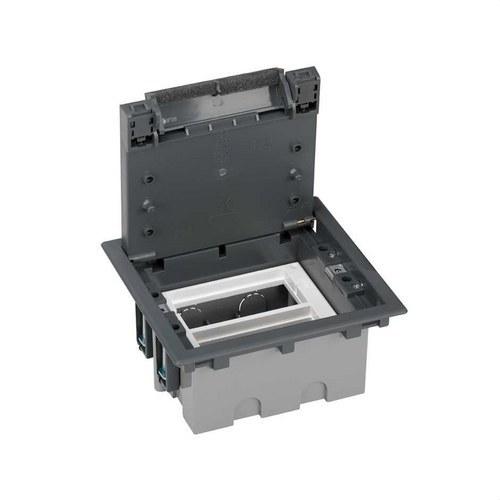

Adjustable Floor Box for 4 Elements in Technical Floor Installation Grey Simon 500 Cima

The adjustable floor box for 4 elements Simon 500 Cima (ref. 52050102-035) belongs to the professional range of Simon components and has been specially designed for installation in raised access floors. It offers a solid, secure, and reliable mounting and closing system, ideal for professional environments where a robust and durable installation is required.

Made from high-resistance plastic material with a grey finish (RAL 7011), it integrates metal components with self-extinguishing, halogen-free thermoplastic insulation. This combination ensures no flame propagation in case of fire and low emission of toxic gases, providing a high level of safety in technical installations.

This is a depth-adjustable box, making it easy to adapt to different raised floor configurations. Once installed, it can optionally be combined with the flush decorative cover (ref. 52053102-035) when not installed directly in the floor covering, achieving a clean and professional finish.

• Version for 4 elements in raised access floors
• Compatible with Simon 500 Cima mechanisms
• Compatible with Simon 27 Play and Simon K45 via adapter
• Made of plastic with insulated metal components
• Self-extinguishing and halogen-free material
• High mechanical and electrical resistance

Its dimensions of 171 x 187 x 92 mm and its adjustable depth range of 92 to 120 mm make it a highly versatile component, capable of integrating into various professional installation schemes. It supports a maximum load of 1400 kg and has an IK08 rating, making it suitable for high-traffic areas.

• Protection rating: IP4X
• IK classification: IK08
• Number of side entries: 8
• Pre-punched holes Ø20 mm: 4
• Pre-punched holes Ø26 mm: 4
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Heat resistance: +125 ºC
• Maximum working temperature: +90 ºC
• Installation temperature range: -5 to +60 ºC

The fixing system is carried out using clamps on the raised floor tile, included in the packaging, ensuring a secure installation. The cover opens in two positions, and the removal of components and disassembly of the frame can only be done with tools, providing greater security.

• Package contents: floor box, metal partition, grounding cable, screws, and manual
• Number of cover opening positions: 2
• Protection against dust and small objects with protective foam
• Easy maintenance with a soft, dry cloth

A professional, robust, and well-designed solution for raised floor installations that require reliability, safety, and a flawless finish, backed by Simon’s quality guarantee.
