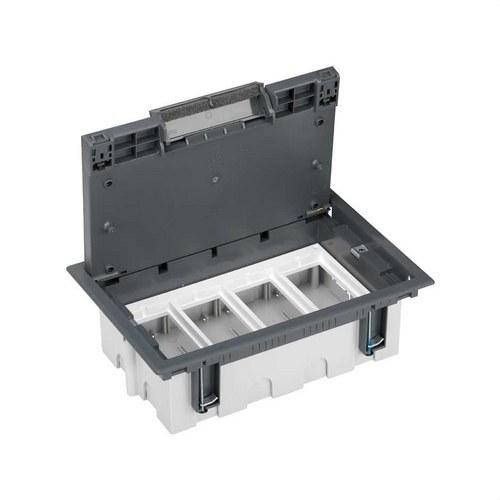

Adjustable Floor Box for 8 Elements in Grey Technical Floor Installation Simon 500 Cima

The adjustable floor box for 8 elements from the Simon 500 Cima series in grey finish is designed to provide a professional, robust, and safe solution for electrical installations in raised access floors. Its design is specifically conceived to facilitate access to power and connectivity in modern environments such as offices, commercial spaces, or advanced residential areas.

This box can power up to 8 electrical devices, offering a versatile and efficient solution for high-demand installations. Its modular 8-element structure makes it easy to integrate different mechanisms, optimizing the distribution of electrical and data connections at a single point.

It is specially designed for flush mounting in raised access floors, ensuring a clean and discreet integration. Additionally, it features a depth adjustment system that allows installation between 92 mm and 120 mm, adapting to different raised floor configurations.

Manufactured with metal components and self-extinguishing, halogen-free thermoplastic insulation, this box offers a high level of safety. In case of fire, it does not propagate flames and reduces the emission of toxic smoke, making it an especially suitable option for installations where safety is a priority.

Its dimensions of 187 x 283 x 92 mm and its capacity to withstand loads up to 1300 kg make it an extremely durable and reliable solution for high-traffic raised floors.

Key technical features include:

• IK08 rating for high impact resistance
• IP4X protection against dust and solid objects
• Heat resistance up to +125 ºC
• Maximum operating temperature of +90 ºC
• Dielectric strength of 2000 V at 50 Hz for 1 minute
• Insulation resistance greater than 5 MΩ at 500 V

It also features electromagnetic immunity for VDM wiring thanks to its metal partition, ensuring proper operation in environments with high signal load or interference.

The box includes multiple side entries (10 in total) and various pre-punched holes (Ø20 mm and Ø26 mm), making cable entry and organization easy. It also has 12 clamp holes for improved cable fastening and management.

Installation is done by clamp fixing onto the raised floor tile, included with the product, ensuring a firm and stable hold without the need for complex tools. Its design allows for horizontal or vertical installation, adapting to different space configurations.

The set includes:

• Floor box
• Metal partition
• Grounding cable
• Screws
• Installation manual

As an optional accessory, a flush decorative cover (ref. 52053104-035) can be installed if the same floor covering is not used, ensuring an even more integrated finish.

Main technical specifications:

• Series: Simon 500 Cima
• Type: Adjustable floor box
• Capacity: 8 elements
• Color: Grey (RAL 7011)
• Material: Metal with halogen-free thermoplastic insulation
• Dimensions: 187 x 283 x 92 mm
• Adjustable depth: 92 – 120 mm
• Maximum load: 1300 kg
• IK rating: IK08
• Protection: IP4X
• Operating temperature: up to +90 ºC
• Heat resistance: +125 ºC
• Installation: Flush-mounted in raised access floor
• Side entries: 10
• Market availability: CE

Notes:

• Compatible with Simon 500 Cima mechanisms and other systems via adapters
• High mechanical and thermal resistance
• Designed for professional installations in raised access floors
• Option to add decorative cover

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive products
• Avoid cleaners containing chlorine

A robust and versatile solution designed for demanding installations, where safety, capacity, and seamless integration make all the difference in the final result.
