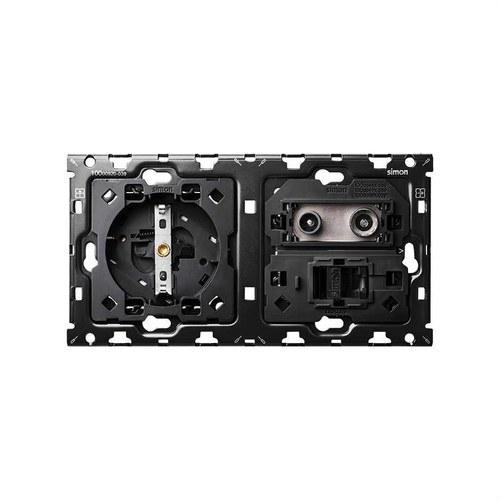

Back kit for 2 elements with 1 Schuko socket base and 1 R-TV+SAT single outlet with 1 RJ45 6 UTP connector Simon 100

The rear kit for 2 elements Simon 100 combines in a single set a Schuko socket outlet and a unique R-TV+SAT outlet with RJ45 6 UTP connector, offering a complete and functional solution for modern installations that require power and connectivity at the same point.

Belonging to the Simon 100 series, this kit is designed to maximize performance, aesthetics, and usability, integrating perfectly into current residential projects and renovations seeking a clean and technological finish. The Schuko socket supports a current of 16 A and a voltage of 250 V~, while the R-TV+SAT outlet complies with the ICT regulation, ensuring compatibility and reliability in signal reception.

The installation system stands out for its ease and speed. The Schuko base features 1Click® cut terminal connection, allowing a secure connection with a simple click, while the R-TV+SAT outlet is connected by screw fixing. The entire set is designed exclusively for flush mounting installation, achieving a discreet and perfectly integrated result.

• Series: Simon 100
• Set type: Back kit
• Number of elements: 2
• Version: Set
• Compatibility: Simon 100 front kit

From a technical point of view, the kit supports a cable section of 2.5 mm² and is prepared to operate stably within a temperature range of 5 to 40 ºC, supporting storage between -25 and 50 ºC. It complies with CE regulations and offers a versatile mechanism system thanks to its Push, Pivoting, and Insertion technologies.

• Rated current: 16 A
• Voltage: 250 V~
• Supported cable section: 2.5 mm²
• Schuko connection type: 1Click®
• Installation type: Suitable for flush mounting
• Installation direction: Horizontal

The packaging includes mechanism, frame, and instructions, making for a complete and organized installation from the very first moment.

A practical and modern solution for those who want to concentrate power and communications in a single point, with the reliability of Simon and an installation designed to save time on site.
