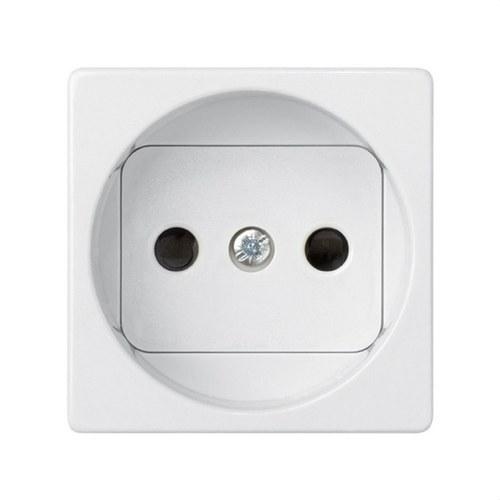

Bipolar Socket Base 16 A 250V with Safety Device and Screw Terminal Shiny White Simon 27 Play

The Simon 27 Play bipolar socket outlet is designed to provide a safe and efficient connection for both residential and professional electrical installations. This unit offers a current rating of 16 A and a voltage of 250 V~, featuring an integrated safety device and screw terminal connection to ensure reliable contact.

Manufactured with metal components and halogen-free thermoplastic insulation plus a thermoset trim, this socket withstands operating temperatures between 5 and 40 ºC and storage temperatures from -25 to 50 ºC. Its design includes child protection on the cover and allows for both surface-mounted and flush installation.

Features and technical specifications:

• Compatibility: Simon 27 Play, Simon 27 Neos, Simon 27 Scudo, Simon 27, Simon 27 Centralizaciones, Simon 44 Aqua frames
• Finish: glossy white
• Format: bipolar
• Element: 1 module
• Current: 16 A
• Voltage: 250 V~
• IP20 – protection against accidental contact and dust
• Mechanism type: insertion
• Supported cable section: 2.5 mm²
• Required cable stripping: 15 mm
• Installation: horizontal or vertical, suitable for surface or flush mounting
• Dimensions: 45 x 45 mm
• Maintenance: clean with a soft, dry cloth; avoid abrasive products containing chlorine
• Integrated child safety function in the cover

This socket combines safety, durability, and ease of installation, making it ideal for both residential and professional environments where protection and a compact design are essential. Its glossy white finish blends seamlessly with any modern décor.
