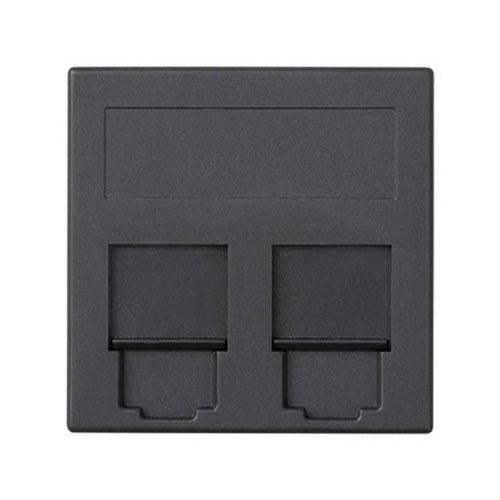

Flat voice and data plate with dust cover 1 element for 2 RJ45 compatible with other manufacturers graphite Simon 500 Cima

The flat voice and data plate with dust cover from the Simon 500 Cima series is designed to provide an efficient, safe, and highly versatile solution for telecommunications installations. Its format allows for up to 2 RJ45 connectors in a single unit, optimizing space and making it easier to organize data and voice networks in both professional and residential environments.

One of the key differentiators of this series is its installation system, which can save up to 50% of time and effort thanks to the innovative cutting terminal system. This method eliminates the need to strip or twist wires: simply insert and secure them, significantly speeding up the assembly process.

The plate features a flat design with a graphite finish (RAL 7021), offering a modern and professional look that integrates perfectly into technical environments, offices, or high-end installations. It also includes a dust cover window that protects the connectors from dirt and dust, extending their lifespan and ensuring better performance of the installation.

It is made of halogen-free thermoplastic, ensuring greater safety in case of fire, as it is a flame-retardant, self-extinguishing, and non-flame propagating material. This is crucial for installations where safety is a priority, both for people and infrastructure.

Its direct clip-on mounting system allows for quick installation without the need for tools, provided the specific enclosures of the series are used. It also includes clips compatible with both vertical and horizontal mounting, offering great flexibility during installation.

The plate includes the RJ45 adapter module, although the connectors are not included, allowing you to select the most suitable components according to your project needs. It is widely compatible with connectors, suitable for multiple standards and manufacturers, including:

• Simon®
• ADC Krone® KM8 Keystone Series
• AMP Netconnect® (Standard, 110, SL110, SL Tool less Series)
• BeldenCDT® Giga Flex Keystone
• Molex®
• Panduit® Netkey
• Ortronics® Clarity TechChoice Keystone
• Systimax®
• And other systems based on Keystone I and II formats

Thanks to its Keystone I, II, and ATT/Avaya format, it adapts to multiple configurations, offering a standard and highly compatible solution for structured cabling projects.

Main features:

• Series: Simon 500 Cima
• Reference: 50000089-038
• Finish: Graphite (RAL 7021)
• Format: 1 element
• Outputs: up to 2 RJ45 connectors
• Plate type: Flat
• IP rating: IP20
• Dimensions: 50 x 50 x 11 mm
• Depth: 11 mm
• Material: Halogen-free thermoplastic
• Working temperature: up to +60 ºC
• Installation temperature: -5 to +60 ºC

Installation:

• Direct clip-on mounting without tools
• Compatible with Simon 500 Cima enclosures
• Vertical installation
• Removal with tool

Maintenance:

• Clean with a soft, dry cloth
• A slightly damp cloth may be used
• Do not use abrasive or chlorine-based products

A solution designed for demanding installations where speed, safety, and compatibility are key, offering a professional finish and clean installation that makes any project easier.
