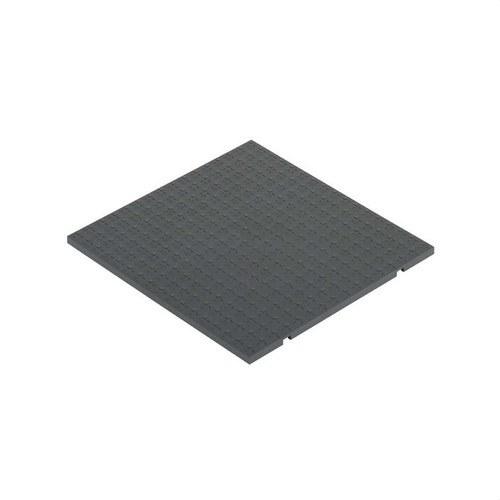

Flush Decorative Cover for Adjustable Floor Box or Access Panel 6 Elements Grey Simon 500 Cima

The flush-mounting decorative cover for adjustable floor box or 6-element access cover from the Simon 500 Cima series (ref. 52053103-035) is the perfect complement for installations on raised or technical flooring. Its RAL 7011 grey finish ensures a professional and aesthetic integration, while maintaining the functionality of the underlying box.

Designed with high-resistance plastic materials and metal components with self-extinguishing, halogen-free thermoplastic insulation, this cover offers:

• Protection against flame propagation in case of fire
• Low toxicity in smoke emission
• Heat resistance up to +125ºC (according to IEC 60695-10-2 standard)
• Dielectric strength of 2000 V at 50 Hz for 1 minute
• IK 8 rating for durability against impacts
• IP4X protection against dust and small objects

Its compact dimensions of 154 x 160 x 5 mm and its screw-fixing system (hardware included) allow for quick and secure installation, both horizontally and vertically. The cover is compatible with adjustable floor boxes and access covers, supporting elements up to 250 V and 16 A. Installation is very simple thanks to its 1 click® cut-insertion system, requiring no complex tools.

• Version: 6 elements
• Maximum working temperature: +90ºC
• Installation range: -5 to +60ºC
• GWFI extinction: +850ºC / 30 seconds (IEC 60695-2-11)

The Simon 500 Cima collection combines technical innovation with maximum safety, ensuring a reliable and aesthetically flawless product that integrates perfectly into any professional installation.

With this decorative cover, you can elegantly and safely complete your floor boxes, providing a professional finish to any installation project.
