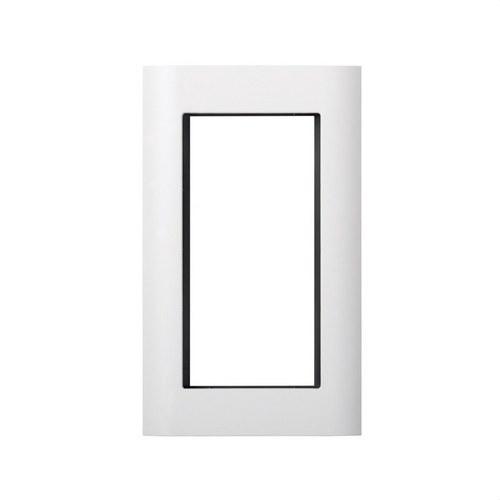

Frame and decorative bezel for columns and mini columns white Simon 500 Cima

The frame with decorative trim for columns and mini-columns Simon 500 Cima is a practical and aesthetic solution designed to integrate electrical mechanisms in professional and residential installations. Its functional design makes it easy to organize mechanisms within technical columns, providing a clean, tidy, and perfectly integrated finish in any environment.

With dimensions of 135 x 80 x 16 mm, this frame has been developed to accommodate up to 2 modules and is available in single or double-sided versions, allowing it to adapt to different installation configurations. Thanks to its white finish (RAL 9003), it easily blends into modern installations, maintaining a professional and discreet aesthetic.

The set includes both the frame and decorative trim, providing a complete solution that enhances the visual finish of the installation. The direct clip-on system to the channel profile allows for quick and easy installation without the need for tools, significantly reducing assembly time.

Manufactured from high-quality plastic material, this component offers resistance, durability, and safety under intensive use conditions, maintaining the characteristic performance of the Simon 500 Cima series.

Main features:

• Series: Simon 500 Cima
• Product type: frame with decorative trim
• Application: columns and mini-columns
• Color / finish: white (RAL 9003)
• Material: high-quality plastic
• Dimensions: 135 x 80 x 16 mm
• Number of modules: 2
• Available version: 1 side and 2 sides
• Protection rating: IP4X
• Maximum operating temperature: +60 ºC
• Installation temperature range: -5 to +60 ºC
• Compatibility: Simon 500 Cima mechanisms
• Also compatible with Simon 27 Play and Simon K45 via adapter
• Earth connection: < 0.05 Ω

Installation and maintenance:

• Direct clip-on installation to the channel profile
• No tools required for fixing
• Installation direction: vertical
• Decorative trim removal requires a tool
• Easy maintenance with a soft, dry cloth
• Do not use abrasive products or chlorine-based cleaners

This frame is a reliable solution for integrating electrical mechanisms into technical columns, ensuring a quick, safe installation with a high-quality aesthetic finish.

When an installation is well finished, it shows in the small details, and this frame with decorative trim is precisely one of those elements that help everything look perfectly integrated and professional.
