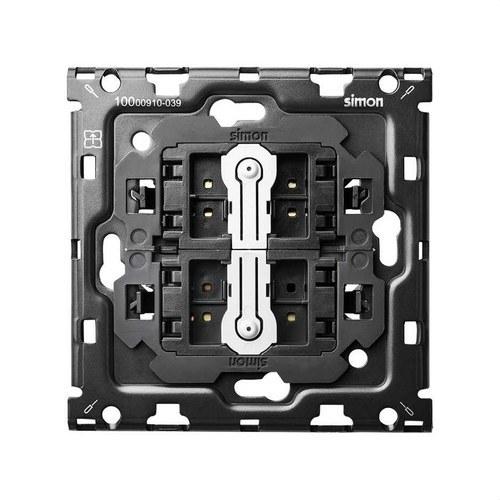

Horizontal back kit for 1 element with 2 push-button switches Simon 100

The horizontal back kit for 1 element with 2 push-button switches Simon 100, reference 10010103-039, is a mechanism designed to offer a quick, safe, and efficient electrical installation. It is part of the innovative Simon 100 series, a range developed to make the installer’s job easier and enhance the end user’s experience.

The mechanisms of the Simon 100 series have been designed to simplify installation and reduce assembly time. Thanks to their intuitive design and quick connection system, many of their components can be installed without tools, significantly speeding up the process on site.

This kit includes two push-button switches with a push-pivoting operation, allowing you to control different circuits easily and reliably. It also features a key return system, ensuring the mechanism automatically returns to its original position after being pressed.

One of the main advantages of this product is its cutting terminal system (1 click®), which allows you to connect wires quickly and safely without the need to strip them beforehand. This system improves connection accuracy, ensures proper alignment of the terminals, and makes cable management easier thanks to the distribution of conductors in separate holes.

The set is designed for flush wall installations and is compatible with the front kits of the Simon 100 series, allowing you to complete the installation with keys and frames from the same range for a modern and uniform aesthetic finish.

Main features:

• Back kit for 1 element from the Simon 100 series.
• Includes 2 push-button switches.
• Push-pivoting operation.
• Quick cutting terminal system (1 click®).
• Simple and fast installation.
• High reliability in electrical connection.
• Allows for clearer cable organization.

Compatibility:

• Simon 100 front kit.

Package contents:

• Mechanism.
• Frame.

Technical data:

• Rated current: 10 AX.
• Rated voltage: 250 V~.
• Accepted cable section: up to 2.5 mm².
• Mechanism type: Push | Pivoting.
• Version: modular.
• Certification: CE.

Operating conditions:

• Operating temperature: from 5 ºC to 40 ºC.
• Storage temperature: from -25 ºC to 50 ºC.

Installation:

• Installation type: suitable for flush mounting.
• Installable in universal flush mounting boxes.
• Installation orientation: horizontal.
• Connection type: cutting terminal (1 click®).

Maintenance:

To keep the mechanism in good condition, it is recommended to clean it with a soft, dry cloth. Avoid using abrasive products or cleaners containing chlorine to prevent damage to the materials.

This Simon 100 back kit is a very practical solution for modern installations where quick assembly and maximum reliability are required. Its quick connection system greatly facilitates the installer’s work and allows for a clean and organized installation.

It is one of those mechanisms that greatly simplify on-site work, especially when multiple control points need to be installed and everything needs to be perfectly aligned and working from the start.
