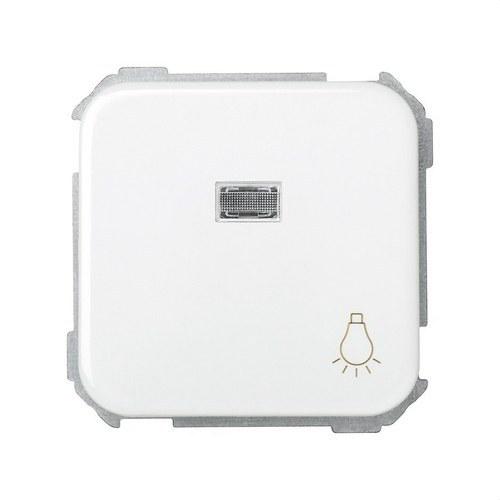

Push Button with Engraving, Built-in Luminous Light and Quick Terminal System, White Simon 31

The Push Button with Light Engraving and Built-in Illuminator from the Simon 31 series (ref. 31661-30) combines design, functionality, and safety. With an elegant and versatile white finish, this push button is ideal for residential and professional installations seeking practical and durable solutions.

This push button features a pivoting system with quick-connect terminals, allowing for easy and fast installation, compatible with Simon 31 frames. Its integrated 1 mA indicator light ensures the button can be located even in low-light conditions. The piece is a half element and supports 250 V~ and 10 AX, providing safety and reliability in its operation.

Technical specifications:

• Dimensions: 64 x 65 mm
• Materials: metallic components with halogen-free thermoplastic insulation; thermoset trim
• Accepted cable section: 1.5 to 2.5 mm
• Cable stripping length: 11 mm
• IP20
• Operating temperature range: 5 - 40 ºC
• Mechanism type: Pivoting
• Version: Individual
• Compatible with reference 31802-31 for indicator light replacement
• Installation: suitable for surface and flush mounting, with universal claw
• Standards: CE

Notes: This push button can be combined with reference 31802-31 if the indicator light needs to be replaced, allowing you to maintain both aesthetics and functionality without replacing the entire mechanism.

The Simon 31 series offers modern and practical solutions with excellent value for money, bringing elegance and reliability to any electrical installation. A push button that combines comfort, safety, and timeless design for your home or workplace.
