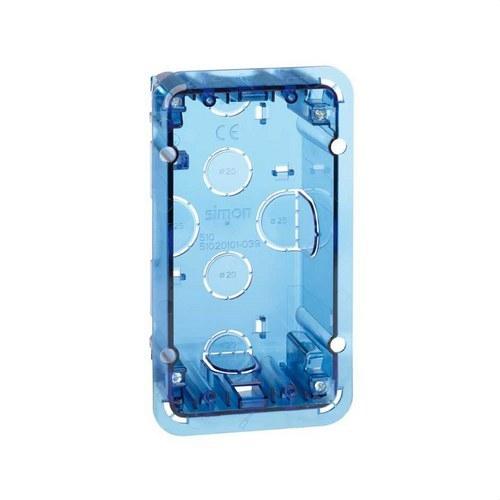

Recessed Wall Box for 1 Double Element Simon 500 Cima

The Simon 500 Cima Flush-Mount Wall Box for 1 Double Element (ref. 51020101-039) is an essential component of the Simon 500 Cima series, designed to provide maximum connectivity and safety for both professional and residential electrical installations. Its elegant graphite finish easily blends into any environment, combining aesthetics with functionality.

Made from halogen-free thermoplastic, this flush-mount box ensures no flame propagation in case of fire and low toxicity in case of smoke emission, guaranteeing user safety and product durability.

Key technical features:

• Compatibility: Simon 500 Cima mechanisms and Simon 27 Play/Simon K45 with specific adapter
• Finish: graphite
• Material: halogen-free thermoplastic
• Dimensions: 75 x 143 x 50 mm
• Depth: 50 mm
• Version: 1 double element
• Protection: IP4X
• Maximum operating temperature: +90ºC
• Installation temperature: -5 to +60ºC
• Number of modules: 2
• Number of side entries: 2
• Opening dimensions: 73 x 141 mm
• Distance between boxes for optimal alignment: 22 mm

Installation and maintenance:

• Installation orientation: vertical
• Installation type: suitable for flush-mount wall installation
• Claw reach: between 4 and 30 mm
• Extinction: +850ºC / 30 seconds (GWFI according to IEC 60695-2-11)
• Fixing: with claws included in the enclosure
• Component removal: only with tools
• Maintenance: clean with a soft, dry cloth, avoiding abrasive or chlorine-based cleaners

This Simon 500 Cima flush-mount wall box is the ideal choice for professional installations, combining strength, safety, and compatibility with the entire Simon range. Its modular design allows adaptation to different element configurations, ensuring versatility and a flawless finish.

Trust Simon 500 Cima to equip your space with a safe, durable, and stylish system, designed to make every electrical installation easy and worry-free.
