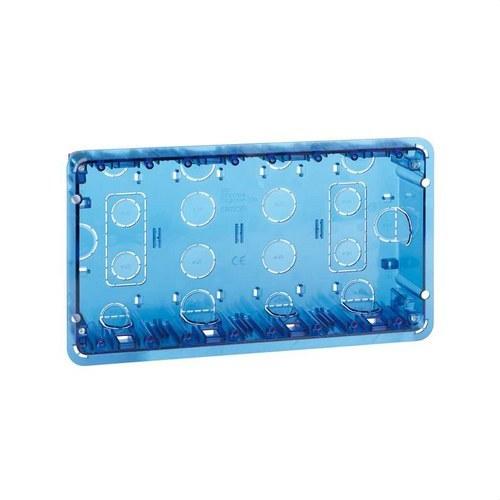

Recessed Wall Box for 4 Double Elements Simon 500 Cima

The Simon 500 Cima flush-mounted wall box for 4 double elements is designed to provide the highest level of safety and reliability in electrical and electronic installations, both in residential and professional buildings. It belongs to the renowned Simon 500 Cima series, created to meet today’s demands for connectivity and cable management.

Its structure is made of high-quality halogen-free thermoplastic, a material that prevents flame propagation in case of fire and reduces smoke toxicity, providing greater protection for people and installations. Thanks to this, it is an especially suitable solution for environments where safety is a priority.

This flush-mounted box is designed to accommodate 8 modules (4 double elements) and offers optimal performance even in demanding environments with high temperatures or humidity. Additionally, the box can be used as a template during installation, thanks to its integrated guides for marking the perimeter, making installation easier and ensuring precise results.

• Series: Simon 500 Cima
• Version: 4 double elements
• Number of modules: 8
• Material: Halogen-free thermoplastic
• Compatibility: Simon 500 Cima mechanisms and Simon 27 Play / Simon K45 with specific adapter
• Package contents: Flush-mounted box, protective cover, metal partition, and film to cover pre-punched holes.

Technically, the box offers high mechanical and electrical resistance. It features IK07 rating, IP4X protection degree, and high heat resistance, ensuring long-term durability and reliability in flush-mounted installations.

• IK rating: 7
• Protection degree: IP4X
• Heat resistance: +125 ºC (IEC 60695-10-2)
• Glow wire test: +850 ºC / 30 s (GWFI according to IEC 60695-2-11)
• Maximum working temperature: +90 ºC
• Installation temperature range: -5 to +60 ºC

It features multiple entries and perforations for easy cable routing and organization, as well as a metal partition to ensure electromagnetic immunity for VDM wiring when installed in the designated compartments.

• Clamp holes: 14
• Pre-punched holes 30 x 70 mm: 2
• Ø20 mm holes: 8
• Ø25 mm holes: 10
• Side entries: 2
• Grounding housings: 2

Installation is exclusively flush-mounted in the wall, with fixing by included claws in the enclosure, adapting to different construction materials. Component removal is only possible with tools, increasing the overall safety.

• Installation type: Flush-mounted in wall
• Installation orientation: Vertical
• Claw reach: Between 4 and 30 mm
• Opening dimensions: 262 x 141 mm
• External dimensions: 264 x 143 x 50 mm
• Distance between boxes for alignment: 22 mm

For maintenance, it is recommended to clean only with a soft, dry cloth, avoiding abrasive products or those containing chlorine.

A robust, safe, and well-designed box for professional installations where every detail matters and the final result makes the difference.
