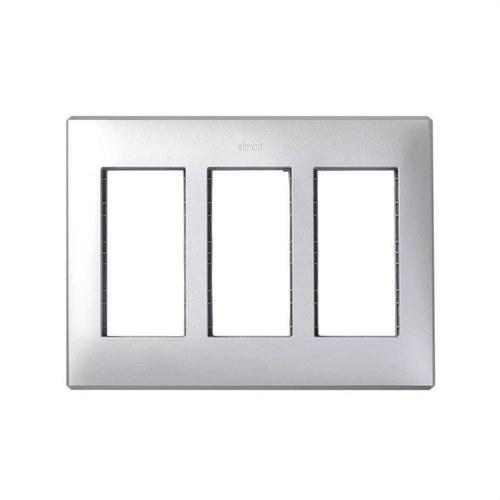

Recessed wall frame and rack for 3 double elements aluminium Simon 500 Cima

The Simon 500 Cima flush-mounted wall frame in aluminum finish is designed to accommodate 3 double modules, allowing you to supply power to a total of 6 elements. Its modern and durable design fits perfectly in any room, combining aesthetics and functionality with the reliability of the Simon 500 Cima series.

Main features:

• Compatible with Simon 500 Cima mechanisms and Simon 27 Play/Simon K45 via adapter
• Includes the necessary frames for easy and secure installation
• High-quality material: thermoplastic treated to prevent flame propagation and halogen-free
• Dimensions: 220 x 164 x 30 mm
• Flush-mounting depth: 21 mm
• IK rating: 7, IP4X, heat resistance up to +125ºC, and dielectric strength of 2000 V at 50 Hz
• Allows extra fixing with screws if required
• Installation temperature: -5 to +60ºC, maximum working temperature: +90ºC
• Box spacing for optimal alignment: 22 mm
• Vertical installation, suitable for flush-mounting in walls
• Easy maintenance with a soft, dry cloth; avoid abrasive products

The Simon 500 Cima frame provides safety, durability, and style to your electrical installations, ensuring a clean and organized setup. Its aluminum finish makes it a modern and elegant element, ideal for homes, offices, or new construction projects.

With this frame, you can enjoy a professional electrical installation that combines technology, durability, and design in a single product.
