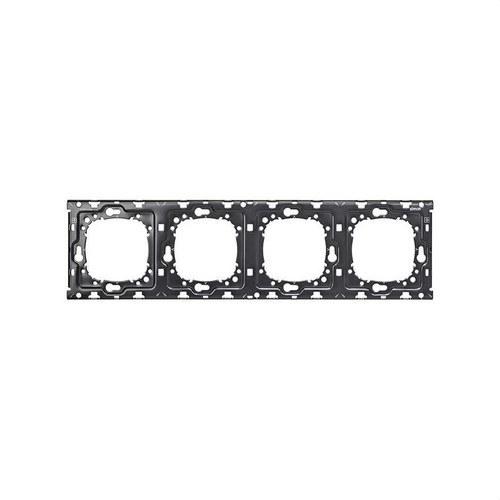

Simon 100 4-Element Frame

The Simon 100 4-Element Frame, reference 10000940-039, is a structural component designed for the proper installation and secure mounting of electrical mechanisms from the Simon 100 series. This component allows you to integrate up to four elements within a single installation, ensuring stability, precise alignment, and a professional finish.

Manufactured from painted steel, the frame offers excellent mechanical strength and durability, guaranteeing a solid fixation of the mechanisms. This material provides a robust base for the entire system, which is especially important in installations where high reliability and stability are required.

The frame’s design allows for flexible installation, as it can be mounted in both horizontal and vertical positions, adapting to different mounting configurations. Additionally, it is compatible with universal flush-mounted boxes, making it easy to integrate into new construction projects, renovations, or when replacing existing mechanisms.

This model belongs to the Simon 100 series, a range known for its innovation, modern design, and ease of use. The components of this series are designed to fit perfectly together, ensuring quick assembly and a uniform aesthetic.

The frame comes with a protective cover that helps preserve its condition during construction or installation phases, preventing scratches or dirt until the mechanisms and final frame are installed.

Main features:

• Metal frame for installing electrical mechanisms.
• Capacity for 4 elements.
• Compatible with the Simon 100 series.
• Made of high-strength painted steel.
• Allows for horizontal or vertical installation.
• Designed for universal flush-mounted boxes.
• Includes protective cover to preserve the finish during installation.

Compatibility:

• Simon 100 mechanisms.

Dimensions:

• 291 x 79.3 x 3.8 mm.
• Version: 4 elements.

Technical data:

• Protection rating: IP20.
• Certification: CE.
• Available in 1, 2, 3, and 4-element versions within the series.

Operating conditions:

• Operating temperature: from 5 ºC to 40 ºC.
• Storage temperature: from -25 ºC to 50 ºC.

Standards:

• Directive 2014/35/EU LVD.
• Directive 2011/65/EU RoHS.
• EN 50581:2012.
• EN 60669-1:1999 + A1:2002 + A2:2008.

Installation:

• Installation type: flush-mounted.
• Compatible with universal flush-mounted boxes.
• Installation orientation: horizontal or vertical.

Maintenance:

To keep the frame in good condition, it is recommended to clean it with a soft cloth slightly dampened with soapy water. Do not use abrasive cleaners or products containing chlorine, as they may damage the material.

The frame is one of those components that remain unseen once installation is complete, but are essential to ensure everything fits perfectly. It provides a solid base that makes the installer’s job easier and guarantees a clean, aligned, and durable final result.
