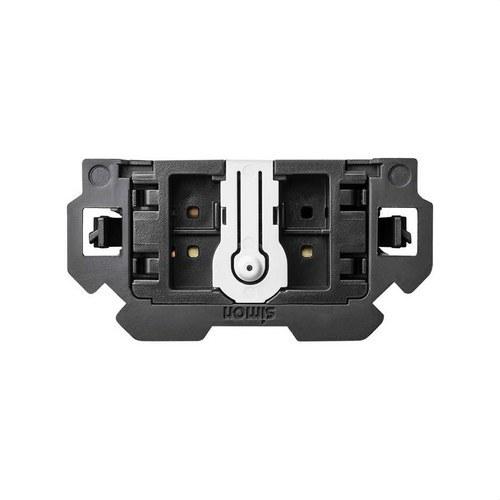

Single Pole Push Switch 10 AX 250V~ with 1click® Terminal System Simon 100

Single-pole push-button switch for flush-mounted installations

This single-pole push-button switch is designed to provide a practical and safe control solution in flush-mounted electrical installations. It is part of a series focused on functionality and easy installation, and stands out for its 1click® wiring system, which simplifies conductor connection and helps achieve a more orderly installation in both domestic and professional environments.

Its design is intended to integrate with the frames of the corresponding series, allowing the installation to be adapted to different finishing and configuration needs.

1click® connection system for more convenient installation

One of the most relevant features of this mechanism is its cut-in wiring system, which allows the connection to be made from the same face of the mechanism. This solution provides a more convenient installation and helps separate the incoming and outgoing cables into different holes, promoting a safer connection.

In addition, the system allows you to:

• Install the cables one by one
• Connect the three cables at the same time
• Carry out the wiring from the same face of the mechanism

Main technical features

This single-pole push-button switch offers suitable performance for use in low-voltage electrical installations within the values indicated by the manufacturer:

• Voltage: 250 V~
• Current: 10 AX
• Protection rating: IP20
• Flush-mountable: Universal
• Installation type: Suitable for flush mounting
• Installation direction: Horizontal
• Operating temperature: 0 - 40 ºC
• Finish: Black

Materials and durability

The mechanism is made of metal components and halogen-free thermoplastic insulation. This combination contributes to good resistance to everyday use and helps withstand impacts and scratches, maintaining a neat appearance in the installation.

Compatibility and application

This switch is compatible with all frames in the corresponding series, expanding the possibilities for integration in different electrical installation projects. Its universal flush-mount design makes it suitable for applications in homes and businesses, always within the indicated operating conditions.

Regulatory information

The product complies with the standards and directives indicated by the manufacturer:

• Directive 2014/35/EU LVD
• Directive 2011/65/EU RoHS + post. mod.
• EN 60669-1:2018
• EN IEC 63000:2018

A functional solution for electrical control

Thanks to its quick connection system, flush-mount format and compatibility with the corresponding frame series, this single-pole push-button switch offers a practical option for those looking for a clean, safe and adaptable installation. It is a solution designed to make installation easier without sacrificing an aesthetic and orderly integration into the space.
