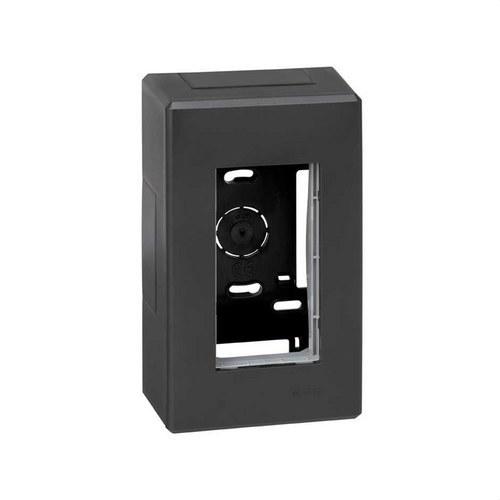

Surface Wall Box for 1 Double Graphite Element Simon 500 Cima

The surface wall box for 1 double element Simon 500 Cima is a robust and functional solution designed to organize and enclose electrical installations with a high level of order and safety. Suitable for both professional and residential environments, it allows for a clean and accessible wall installation, maintaining excellent technical organization inside.

Made of thermoplastic plastic material, this box ensures safe performance against high temperatures and possible smoke emissions, meeting the technical requirements of modern installations. Its graphite finish (RAL 7021) provides a modern and professional look, easily integrating into offices, shops, and technical spaces.

With dimensions of 97 x 167 x 59 mm and a configuration for two modules (1 double element), it offers the perfect balance between internal capacity and compact size. It includes a metal partition that ensures electromagnetic immunity for VDM wiring, improving installation reliability.

The box is compatible with Simon 500 Cima mechanisms and also with Simon 27 Play and Simon K45 via a specific adapter, expanding its range of use. Additionally, it allows for optional screwing of the frame for extra fastening when required by the project.

• Surface wall box for 1 double element.
• Compatible with Simon 500 Cima mechanisms
• Adaptable to Simon 27 Play and Simon K45 with adapter
• Graphite finish RAL 7021
• High-resistance thermoplastic plastic material
• IP4X protection rating
• IK07 classification
• Heat resistance up to +125 ºC
• Extinction +850 ºC / 30 s (GWFI)

• Number of modules: 2
• Dimensions: 97 x 167 x 59 mm
• Depth: 50 mm
• Number of side entries: 4
• Clamp holes: 4
• Pre-punched holes Ø25 mm: 1
• Ground connection: 1 housing

• Vertical installation on surface wall
• Fixing with supplied screws
• Component removal only with tools.
• Frame disassembly only with tools
• Installation temperature range: -5 ºC to +60 ºC
• Maximum working temperature: +60 ºC

The packaging includes everything needed for a complete and safe installation: surface box, metal partition, grounding cable, fixing plugs, screws, and installation manual. Maintenance is simple—just clean the surface with a soft, dry cloth, avoiding abrasive or chlorine-based products.

A reliable and well-designed surface box, ideal for those seeking a neat, safe installation with the technical support of the Simon 500 Cima series, built to last and make installation easy from the very first setup.
