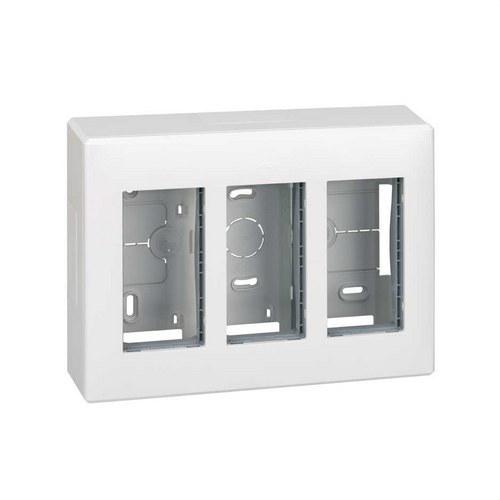

Surface Wall Box for 3 Double Elements White Simon 500 Cima

The surface wall box for 3 double modules from the Simon 500 Cima series is a professional solution designed for visible electrical installations that require robustness, capacity, and a clean finish. Its functional and durable design makes it an ideal choice for environments where flush mounting is not possible or practical.

This box can accommodate up to 6 modules (3 double elements), providing a solid structure for installing mechanisms from the Simon 500 Cima range. Additionally, with specific adapters, it is also compatible with mechanisms from the Simon 27 Play and Simon K45 series, greatly expanding its configuration possibilities. It can also be combined with Simon’s trunking systems to create complete and well-organized installations.

Its design is especially suited for installations in professional and public spaces such as offices, educational centers, hotels, restaurants, medical centers, or commercial areas, where robust, safe, and easy-to-maintain solutions are required.

Manufactured from high-quality thermoplastic material, this box offers excellent resistance to intensive use, high temperatures, and the passage of time. Its components are designed to prevent deterioration, oxidation, or deformation, ensuring a long service life even in demanding environments.

Main features:

• Series: Simon 500 Cima
• Product type: Surface wall box
• Version: 3 double modules
• Number of modules: 6
• Compatibility: Simon 500 Cima, Simon 27 Play, and Simon K45 (with adapters)
• Color: White (RAL 9003)
• Material: High-resistance thermoplastic
• Dimensions: 223 x 167 x 59 mm
• Depth: 50 mm
• Protection rating: IP4X
• Impact resistance classification: IK07
• Maximum working temperature: +60 ºC
• Installation temperature range: -5 ºC to +60 ºC

Technical specifications:

• Dielectric strength: 2000 V at 50 Hz for 1 minute without breakdown or tracking
• Insulation resistance: >5 MΩ at 500 V
• Heat resistance: up to +125 ºC according to IEC 60695-10-2
• Glow-wire test: +850 ºC / 30 s (GWFI according to IEC 60695-2-11)
• Electromagnetic immunity for VDM wiring via metal partition

Configuration and cable entries:

• 10 holes for clamps
• 2 pre-punched holes of 30 x 50 mm
• 2 pre-punched holes Ø20 mm
• 1 pre-punched hole Ø25 mm
• 5 side entries
• 2 housings for grounding connection

Package contents:

• Surface box
• Metal partition
• Grounding cable
• Fixing plugs
• Screws
• Installation manual

Installation:

• Installation type: Surface-mounted on wall
• Installation orientation: Vertical
• Fixing with included screws
• Component removal and disassembly only with tools
• Optionally, frames can be screwed for additional fixing

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive cleaners or products containing chlorine

The Simon 500 Cima surface box is a robust and versatile solution that allows you to create visible electrical installation points in an orderly and safe manner. Its technical design and compatibility with different series make it a popular choice for professional installations.

A reliable choice when you need capacity, durability, and a clean installation that facilitates both assembly and long-term maintenance.
