Acti9 iID RCD 4P 40A 30mA A-SI

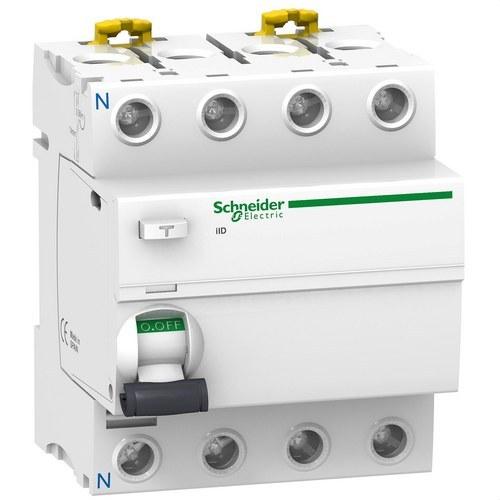

The Schneider Electric Acti9 iID 4P 40A 30mA A-SI RCD (reference A9R61440) is a modular protection device designed to provide reliable and efficient protection against electric shocks, both from direct and indirect contact, and the risks associated with earth faults, including potential fires. This residual current circuit breaker (RCCB) features a rated current of 40 A and a sensitivity of 30 mA, making it an ideal choice for both residential and industrial applications requiring advanced protection.

Advanced Protection:

The Acti9 iID from Schneider Electric is a Type A-SI RCD, offering specific protection against alternating current (AC) and pulsating direct current (DC) leakage. This makes it particularly effective in protecting people and equipment in systems where devices with electronic components, such as computers or advanced appliances, are used.

In addition to its ability to automatically disconnect the circuit in the event of an earth fault, this RCD offers protection against fires caused by current leakage, ensuring the safety of both people and installations.

Visitrip and VisiSafe Indication Technology:

The Acti9 iID includes two innovative indication systems to facilitate maintenance and safety of installations:

1. Visitrip Indicator: Clearly shows which device is faulty with a mechanical indicator on the front of the switch. This significantly reduces intervention and fault location time, allowing for quicker and more efficient repairs.
2. VisiSafe Indicator: Provides a visual signal of the complete opening of the poles, ensuring that the downstream circuit is fully isolated for safe maintenance. The green strip on the lever assures the operator that the disconnection is complete, providing an additional layer of safety during electrical system work.

Key Technical Specifications:

• Number of Poles: 4P, making it suitable for three-phase systems with neutral, effectively protecting all poles.
• Rated Current ([In]): 40 A, sufficient for a wide range of electrical applications.
• Earth Leakage Sensitivity: 30 mA, ensuring instant disconnection in case of small leaks, protecting people from electric shocks.
• Earth Leakage Protection Class: Type A-SI (Super Immunised), making it highly resistant to unnecessary trips caused by network fluctuations or electrical disturbances.
• Short-Circuit Breaking and Making Capacity (Im/ΙΔm): 1500 A, ensuring its ability to act effectively in overload or short-circuit situations.
• Conditional Short-Circuit Current (Inc/ΙΔc): 10 kA, making it suitable for systems where high current peaks can occur in case of severe faults.
• Operating Voltage: Between 380 V AC and 415 V AC, ensuring compatibility with a wide variety of electrical networks.
• Rated Insulation Voltage (Ui): 500 V AC, providing greater resistance and safety in demanding electrical environments.
• Rated Impulse Withstand Voltage (Uimp): 6 kV, allowing it to withstand voltage spikes generated by lightning or other electrical disturbances.

Durability and Resistance:

The Schneider Electric Acti9 iID RCD is designed to be robust and durable, with a mechanical endurance of up to 20,000 cycles and an electrical endurance of up to 15,000 cycles. This ensures a long period of operation without performance loss, even in demanding applications. Additionally, it complies with the EN/IEC 61008-1 standard, ensuring its reliability and safety in a wide range of electrical environments.

Easy Installation:

This device is designed for quick and easy installation on a DIN rail, making it compatible with the most common electrical panels in residential and commercial installations. Its compact dimensions, with a width of 72 mm, facilitate its integration into electrical panels without taking up too much space.

Protection and Certification:

The Acti9 iID RCD has a protection rating of IP20, ensuring it is protected against accidental contact with external elements. Once installed in a modular enclosure, its protection increases to IP40, providing additional safety in more challenging environments. Its operating temperature range, from -25°C to 60°C, allows its use in a wide variety of environmental conditions.

Advantages of the Acti9 iID 4P 40A 30mA A-SI RCD:

• Advanced Earth Leakage Protection: Efficiently protects against electric shocks, offering safety to both people and electrical equipment.
• Visitrip and VisiSafe Indicators: These innovative systems facilitate fault identification and ensure safe and efficient maintenance.
• Durability and Resistance: With high mechanical and electrical endurance, this RCD is a reliable option for long-term applications.
• Easy Mounting: DIN rail mounting ensures quick and secure installation in most electrical panels.

In summary, the Schneider Electric Acti9 iID 4P 40A 30mA A-SI RCD is an ideal choice for installations requiring advanced and reliable earth leakage protection, offering innovative technology and easy installation to ensure safety and efficiency in any electrical environment.
