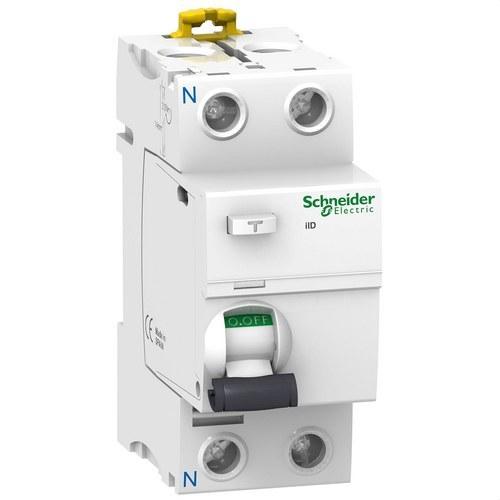

IDD Differential 2P 40A 300mA Class AC with reference A9R84240 from the brand SCHNEIDER ELECTRIC
IDD Differential 2P 40A 300mA Class AC with reference A9R84240 from the brand SCHNEIDER ELECTRIC
SCHNEIDER ELECTRIC

IDD Differential 2P 40A 300mA Class AC

REF
A9R84240
(0)
+75
91.50 €
€91.50
€387.13
If you are a professional, you have an exclusive price. Discover it.
This residual current circuit breaker is used to provide protection in the event of an electrical fault in the circuit. It activates when there is a fault.
  • Sensitivity to earth leakage: 300 mA
  • Conditional short-circuit current: 10 kA
  • Earth leakage protection delay: Instantaneous
Buy now and receive it between 14 and 17 February
Express delivery
More about the product

Information about IDD Differential 2P 40A 300mA Class AC

iID Residual Current Circuit Breaker, 2P, 40A, 300 mA, AC class, IP20, 50/60 Hz, neutral position on the left, instantaneous earth leakage protection delay, handle control, trip indicator, comb busbar mount type with removable installation, DIN rail support.

14 mm stripped cable length (top or bottom), 91 x 36 x 73.5 mm, 0.21 kg, White. Standards: EN 61008-1, IEC 61008-1.


Technical characteristics of the IDD 2P 40A 300 mA AC class Residual Current Circuit Breaker:

  • Earth leakage sensitivity: 300 mA
  • Number of poles: 2P
  • Current: 40A
  • Network type: AC
  • Network frequency: 50/60 Hz
  • Conditional short-circuit current: 10 kA
  • Earth leakage protection delay: Instantaneous
  • Control type: Handle
  • Mounting type: Clip adjustable
  • Mounting support: DIN rail
  • Locking options description: Padlock locking device
  • Rated making and breaking capacity: Im 500 A, Idm 500 A
  • Stripped cable length for terminal connection: 14 mm
  • Tightening torque: 3.5 N.m (top or bottom)


Do you need more accessories for your electrical panel?

At Groupsumi, we are experts in electricity and offer the widest range so you can set up your electrical installation without needing to visit different places.

Visit our “Automatic, residual current devices and electrical protection” section and add what you need to your basket.

Specifications
Manufacturer
SCHNEIDER ELECTRIC
Reference
A9R84240
SKU
SCH6EA86BAF
Object
Differential
Number of poles
Assembly
Fixed
Nominal current
40 A
Network type
CA
Protection rating
IP20
Frequency
50/60 Hz
