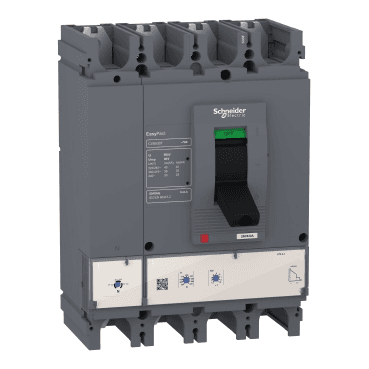

Easypact CVS630F Circuit Breaker ETS 2.3 630 A 4P/4R

The Schneider Electric EasyPact CVS630F 630A 4P/4R circuit breaker is a robust and cost-effective solution designed to offer reliable protection in electrical applications for small and medium-sized buildings. This 4-pole circuit breaker is designed to ensure the safety of electrical installations by providing protection against overloads and short circuits with a high level of performance and functionality.

This model offers a breaking capacity (Icu) of 36kA at 415V AC 50/60 Hz, ensuring effective protection against severe electrical faults. With a rated current of 630A at 40°C, the EasyPact CVS630F is ideal for installations requiring reliable protection in high-consumption networks. Additionally, its operating voltage can reach up to 440V AC, making it a versatile option for applications in standard frequency alternating current (AC) networks.

The EasyPact CVS630F incorporates the ETS 2.3 control unit, an advanced electronic solution that allows for the adjustment of long and short-time protections, ensuring the system is protected both under normal operating conditions and against overloads or short circuits. This control unit also features a fixed instantaneous protection that acts immediately against extreme current spikes, providing additional defence for connected equipment.

The design of the EasyPact CVS630F circuit breaker perfectly adapts to a variety of installation configurations, as it complies with international standards IEC 60947, CCC, and EAC, ensuring its quality and reliability in any type of installation. It is also compatible with class II insulation electrical cabinets (according to IEC 60664-1), ensuring safe installation in environments requiring high levels of protection against accidental contact.

Key Technical Specifications:

• Rated current (In): 630A at 40°C, making it a robust option for the protection of electrical installations with high loads.
• Breaking capacity (Icu): 36kA at 415V AC, with additional capacity of 40kA at 220/240V AC and up to 30kA at 440V AC, ensuring effective protection under diverse network conditions.
• ETS 2.3 Control Unit: Advanced electronic technology providing adjustable protection against long and short-time overloads, as well as fixed instantaneous protection against current spikes.
• Compact dimensions: With a width of 185mm, height of 255mm, and depth of 110mm, its design allows for space optimisation in electrical panels, facilitating installation in control cabinets.
• Fixed mounting: Provides secure and stable installation in electrical boards, suitable for applications requiring a high level of protection and reliability.

In addition to its advanced technical features, the EasyPact CVS630F stands out as a cost-effective solution for companies seeking a combination of high efficiency and low cost. Schneider Electric has designed this range to offer reliable performance in standard applications while minimising operational and installation costs.

Additional Benefits:

• Ergonomic and efficient design: The circuit breaker has been designed with ease of installation and maintenance in mind, reducing downtime and ensuring maintenance operations are carried out efficiently.
• Compliance with international standards: Certified according to IEC 60947, CCC, and EAC, ensuring the breaker meets the highest safety and performance standards in industrial and commercial environments.
• Adjustable protection: Adjustable overload and short circuit protections allow the circuit breaker to be tailored to the specific needs of the installation, providing greater flexibility in its application.

This circuit breaker is ideal for the protection of electrical systems in small and medium-sized buildings, providing a balanced combination of performance, safety, and cost savings. Additionally, its compact design and mounting options make it a versatile solution for various electrical panel configurations.
