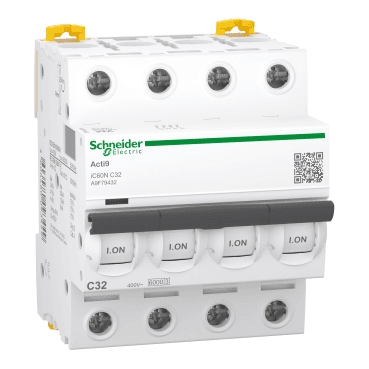

IC60N 4P 32A Circuit Breaker Curve C 10kA

The miniature circuit breaker (MCB) Acti9 iC60N 4P 32 A from Schneider Electric is a device designed to provide comprehensive protection against overloads and short circuits in low voltage electrical systems. This 4-pole circuit breaker (with all poles protected) is optimized for applications in both alternating current (AC) and direct current (DC) installations, providing safety and reliability in the power supply.

With a rated current of 32 A and a type C tripping curve, the Acti9 iC60N ensures a quick and effective response to overloads and short circuits, protecting both people and equipment connected to the network. This circuit breaker is ideal for use in residential, commercial, and light industrial environments, where reliable and robust protection is required.

The breaker has a breaking capacity of 6000 A at 400 V AC according to the IEC/EN 60898-1 standard, ensuring its performance in installations with medium short-circuit current levels. Additionally, this device can operate with a breaking capacity of 10 kA at 230/400 V AC and up to 20 kA at 230 V AC, making it suitable for protecting circuits in higher demand applications.

Key features:

• Rated current: 32 A
• Tripping curve: Type C (medium response)
• Breaking capacity: 6000 A at 400 V AC according to IEC/EN 60898-1
• Protection: Short circuits and overloads in AC and DC systems

The Acti9 iC60N circuit breaker features a series of advanced characteristics that facilitate both its installation and maintenance. The Visitrip indicator, exclusive to Schneider Electric, allows for quick identification of the circuit that caused the breaker to trip, significantly reducing diagnosis and intervention time. Additionally, the green Visisafe band ensures the physical disconnection of the contacts, allowing for safe downstream maintenance.

The compact design of this breaker allows it to be installed on standard DIN rails, making integration into modular electrical panels quick and easy. It also features simple connection terminals on the top and bottom, accommodating rigid cables up to 35 mm² and flexible cables up to 25 mm², offering flexibility in electrical system design.

Key technical data:

• Rated insulation voltage (Ui): 500 V AC
• Surge voltage resistance (Uimp): 6 kV
• Operating frequency: 50/60 Hz
• Limitation class: Class 3 according to IEC/EN 60898-1
• Mechanical durability: 20,000 cycles
• Electrical durability: 10,000 cycles
• Dimensions: 72 mm wide, 85 mm high, 78.5 mm deep
• Weight: 0.5 kg

Additional features:

• Robust protection: The Acti9 iC60N is designed to provide effective protection in both AC and DC networks, with the ability to cut high levels of current in critical applications.
• Reliability in maintenance: Thanks to its Visisafe band, users can be assured that the contacts are physically disconnected, increasing safety during maintenance tasks.
• Modular design: Its installation on DIN rail facilitates integration into any electrical panel, making it a flexible and versatile option for a wide range of applications.

Typical applications:

This circuit breaker is ideal for use in installations where robust and reliable protection against short circuits and overloads is required. Its applications include electrical distribution systems in residential and commercial buildings, small industries, and any installation that uses both alternating and direct current. Additionally, its ability to be integrated into modular panels and its compatibility with distribution blocks and busbars make it a flexible solution for various installation configurations.

The miniature circuit breaker Acti9 iC60N 4P 32 A from Schneider Electric is a highly reliable solution for protecting electrical circuits against overloads and short circuits. With its breaking capacity of up to 6000 A and advanced features such as the Visitrip indicator and the Visisafe band, this device ensures safety and reliability in electrical installations, facilitating both installation and maintenance.
