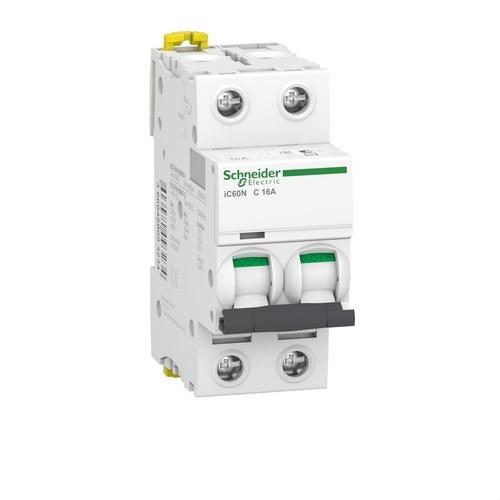

The iC60N 2P 16A Curve C miniature circuit breaker (MCB) is a low voltage device consisting of a 2P automatic switch with 2 protected poles, a nominal current of 16 A, and a Curve C tripping characteristic. It can be mounted on a DIN rail for modular installation. As an automatic switch, its breaking capacity is 6000 A at 400 V AC, 20 kA at 230 V AC, and 10 kA at 400 V AC.
This miniature circuit breaker protects circuits against short circuits and overloads. It has an IP20 protection rating (in accordance with IEC/EN 60529) at its terminals. It becomes IP40 once installed in a modular enclosure with insulation category II. Its fast-acting closure mechanism extends its service life.
Its class 3 limitation (in accordance with EN/IEC60898-1) reduces the cost of protecting downstream circuits. Its unique Visitrip indicator reduces intervention time by identifying the faulty circuit.
Its green Visisafe strip ensures the physical opening of contacts to allow downstream maintenance.
