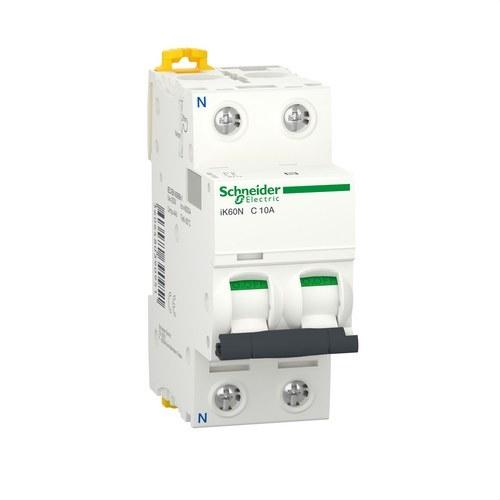

IK60N Circuit Breaker 1P+N 10A Curve C 6kA

Miniature Circuit Breaker, iK60N, 1P N, 10 A, curve C, IP20, 50/60 Hz, thermal-magnetic, suitable for disconnection, padlock closing device, handle control, local signalling:

Technical characteristics of the iK60N 1 P N 10 A curve C Miniature Circuit Breaker:

• 1 Pole + Neutral
• Neutral on the left
• Thermal-magnetic tripping
• Handle control
• DIN rail mounting
• On/Off indication
• Clip adjustable mounting, DIN Rail mounting support
• No earth leakage protection
• Cable stripping length: 14 mm top or bottom,
• Dimensions: 85 x 36 x 78.5 mm
• Breaking capacity: 6000 A Icn according to EN/IEC 60898-1, 400 V AC 50/60 Hz, 6000 A Icn according to EN/IEC 60898-1, 230 V AC 50/60 Hz.
