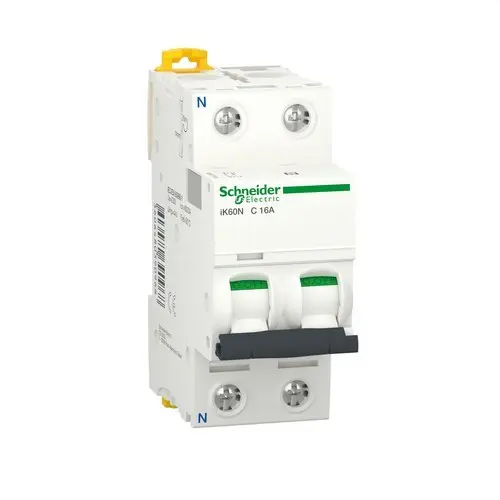

IK60N Circuit Breaker 1P+N 16A Curve C 6kA

Miniature Circuit Breaker, iK60N, 1P N, 16 A, curve C, IP20, 50/60 Hz, thermal-magnetic, suitable for disconnection, lockable closing device, lever control, local signalling: On/Off indication, adjustable clip mounting, DIN Rail mounting support, no earth leakage protection, cable stripping length: 14mm top or bottom.

The IK60N range is installed on the DIN rail of electrical panels and is anchored using the adjustable clip on the bottom.

This is an automatic breaker with an excellent price-quality ratio and outstanding technical specifications for protections of this range.

It allows a maximum operating voltage of 440 V at a network frequency of 50/60 Hz, something we don't have to worry about in the UK, as the network frequency is 50 Hz.

Regarding the mechanical characteristics of the IK60N electrical protection, the manufacturer assures that it has a mechanical durability of 20,000 cycles and 10,000 cycles in electrical durability.

When it comes to connecting, Schneider in their specifications recommends a tightening torque of 2 N.m on the upper input terminals as well as the lower output terminals, with a cable stripping of 14 mm to make the connection in a safe and optimal way, allowing a maximum cable section of 16 mm² in flexible and 25 in rigid.

In terms of aesthetics, the ik60n automatic is white with a black lever, featuring the corporate logo in green.

Finally, remember that we are talking about a leading national manufacturer in sales and a true international giant, standing out for its quality and cutting-edge technology in the electrical sector, as speaking of Schneider is synonymous with quality.

Technical characteristics of the iK60N 1P + N 16A curve C Miniature Circuit Breaker:

• 1 Pole + Neutral
• Neutral located on the left
• Thermal-magnetic trip
• Lever control
• DIN rail mounting
• Dimensions: 85 x 36 x 78.5 mm
