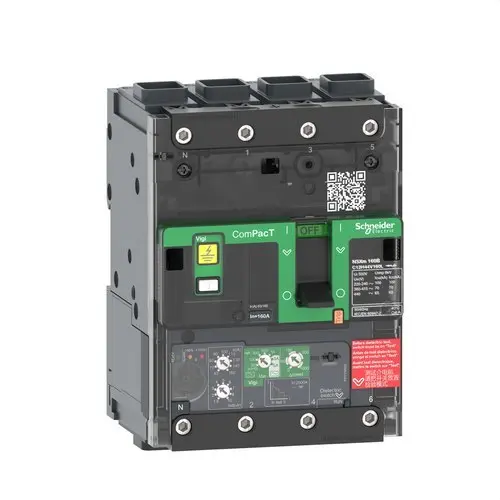

ComPacT NSXm100F Circuit Breaker 36kA AC 4P 25A Micrologic 4.1 ELINK

The ComPacT NSXm100F circuit breaker by Schneider Electric (reference C11F44V025L) is a compact and efficient solution for protecting electrical installations against overloads, short circuits, and earth leakage. This 4-pole breaker, with a capacity of 25 A, has been designed to offer optimal performance across a wide range of industrial and commercial applications, being one of the smallest models on the market that incorporates significant innovations to enhance both safety and ease of installation.

With a breaking capacity of 36 kA at 415 V AC, the ComPacT NSXm100F is prepared to manage high fault currents, ensuring reliable and safe protection in electrical distribution networks. It operates at a rated current of 25 A at 40 °C and an operating voltage of 440 V AC, making it a suitable choice for applications that require a medium level of protection and safety.

This model features a Micrologic 4.1 electronic control unit, which incorporates advanced adjustable protection functions against earth leakage, overloads, and short circuits, ensuring a swift and precise response in critical situations. The LSoIR technology allows optimal control over electrical faults, providing comprehensive protection for the system and its components.

Key Technical Data:

• Number of poles: 4P
• Rated current: 25 A at 40 °C
• Rated operating voltage: 440 V AC at 50/60 Hz
• Maximum breaking capacity:
  • 85 kA at 220-240 V AC
  • 36 kA at 380-415 V AC
  • 35 kA at 440 V AC
  • 10 kA at 525 V AC
• Dimensions: 108 mm (width) x 144 mm (height) x 80 mm (depth)

One of the most notable innovations of the ComPacT NSXm100F is its Everlink technology, which ensures durable and secure electrical connections, preventing connections from loosening over time due to vibrations or temperature changes. This technology is essential in industrial environments where connection stability is critical for the proper functioning of the system.

The compact design of this breaker, along with its DIN rail or plate mounting capability, allows for flexible and efficient installation, saving up to 40% of space in electrical cabinets. Additionally, the installation and wiring process has been optimised, reducing assembly times by up to 40%, which is especially beneficial for installers and panel builders looking to maximise efficiency in their projects.

Key Advantages:

• Compact design: With reduced dimensions, this circuit breaker optimises space in electrical cabinets without compromising performance or safety.
• Advanced protection: The Micrologic 4.1 control unit offers adjustable protection against overloads, short circuits, and earth leakage, ensuring greater safety in system operation.
• Everlink technology: Ensures stable and durable connections, minimising the risk of loosening and failures in the electrical system.

This circuit breaker is part of Schneider Electric's EcoStruxure Power architecture, allowing for complete integration into advanced energy management systems. Using the EcoStruxure Customer Lifecycle software, users can easily select, configure, and commission the breaker, optimising system performance and ensuring greater operational safety.

Regulatory Compliance:

The ComPacT NSXm100F complies with major international standards such as IEC 60947, CCC, and EAC, ensuring it has been designed and tested to the highest safety and quality standards. It also meets marine specifications, making it suitable for offshore applications or environments with demanding operating conditions.

Recommended Applications:

• Protection of electrical distribution systems in industrial and commercial environments.
• Applications where space is limited and robust protection against overloads and short circuits is required.
• Installations needing reliable earth leakage protection, especially in environments with high safety demands.
