Samsung EHS Mono R290 Aerothermal Set 8 kW 260 liters

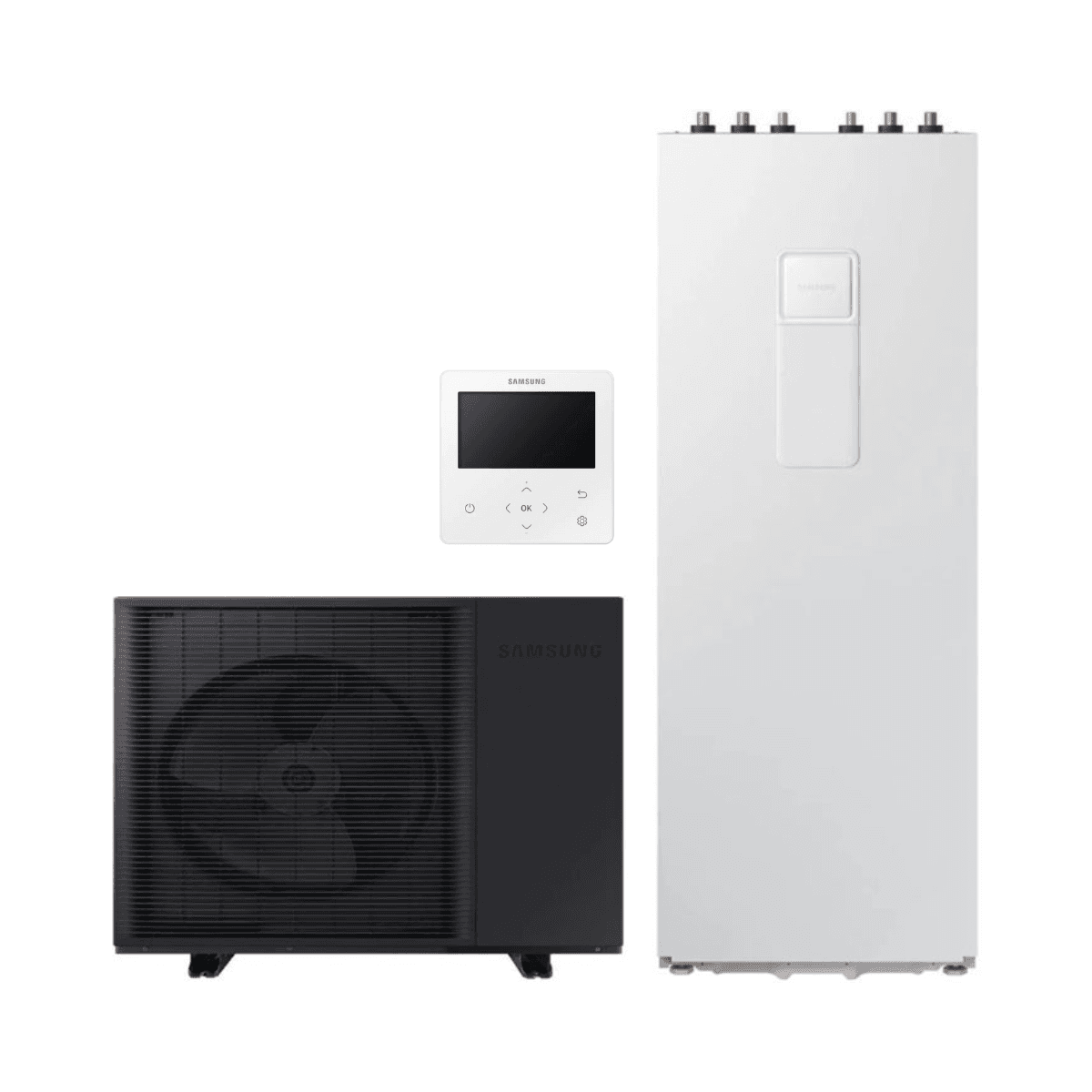

The Samsung EHS Mono R290 8 kW Aerothermal Set with 260-Liter Tank is an energy-efficient solution for heating, cooling, and domestic hot water (DHW) production. This system consists of the AE260RNWMEG/EU indoor hydrokit unit, the AE080CXYDEK/EU outdoor unit, and the MWR-WW10N remote control, providing optimized performance and reduced energy consumption.

Energy Efficiency and Advanced Performance

This system uses R290 refrigerant, with a GWP of only 3 and ODP of 0, ensuring a low environmental impact. Its SCOP of up to 4.85 and SEER of 4.30 guarantee optimized energy consumption for both heating and cooling, reducing operating costs.

• Heating: Power of 8 kW with a nominal COP of 4.91 (A7/W35)
• Cooling: Power of 8 kW with a nominal EER of 3.90 (A35/W18)
• Water outlet temperature: Up to 75 °C, ideal for heating and DHW

Quiet Operation and Durability

Thanks to its 4-level silent operation mode, this system operates at a reduced sound level of up to 35 dB(A) in night mode. Additionally, the outdoor unit is equipped with a heat exchanger with Anti Salt treatment, enhancing corrosion resistance and extending its lifespan.

• Sound level in heating: 45 dB(A)
• Sound level in cooling: 45 dB(A)
• Night mode: Reduction down to 35 dB(A)

DHW Production with 260-Liter Tank

The 260-liter tank, made of SUS 316L stainless steel, offers high storage capacity and excellent corrosion resistance. Its PU Foam thermal insulation minimizes heat loss, improving system efficiency.

• Tank capacity: 260 liters (254 net liters)
• Tank material: SUS 316L stainless steel
• Support resistance: 3 kW (230 V) for greater DHW availability
• Maximum water temperature: 75 °C, ideal for eliminating bacteria such as Legionella

Advanced Control and Smart Connectivity

This set includes the MWR-WW10N remote control, making it easy to manage temperature and operating modes. Additionally, the hydrokit features an electronic expansion valve (EEV) that optimizes real-time performance for efficient consumption.

• Compatible with Samsung SmartThings (optional)
• Advanced sensors for dynamic power and flow adjustment
• Overpressure protection and advanced safety system

Optimized Installation and Hydraulic Connections

This system is designed for easy installation, with high-capacity hydraulic connections and a brazed stainless steel plate heat exchanger, ensuring high thermal efficiency.

• Water pipe diameter: Inlet and outlet 28 mm (1" BSPP)
• Nominal water flow in heating: 23.1 LPM
• Maximum water pressure: 3 bar

The Samsung EHS Mono R290 8 kW Aerothermal Set with 260-Liter Tank is the perfect solution for those seeking maximum efficiency, sustainability, and thermal comfort, ensuring stable climate control and optimal DHW supply.
