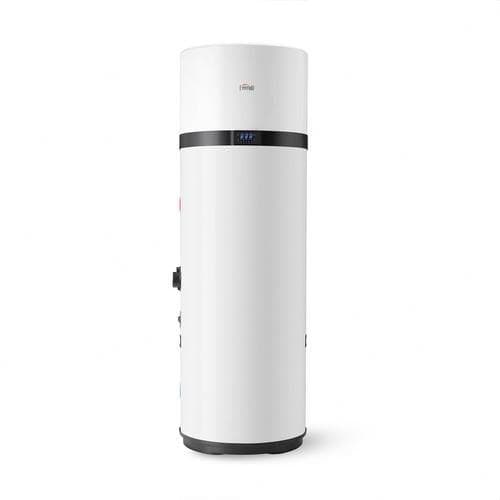

Heat Pump for DHW with WiFi Ferroli EGEA TECH LT 260 Liters

The Ferroli EGEA TECH LT 260-liter DHW heat pump is an efficient and sustainable solution designed to provide domestic hot water optimally, even in extreme weather conditions. With a nominal capacity of 260 liters, this compact air-source heat pump is equipped with advanced technology that maximizes performance and minimizes environmental impact, ensuring comfort and energy savings at home.

Maximum performance in any climate

Thanks to its A+ energy rating and a SCOP of up to 3.90 in warm climates, the EGEA TECH LT 260 L delivers exceptional performance in DHW production. Its active defrost system allows the unit to operate efficiently at air temperatures down to -7 ºC without the need for electric backup, producing domestic hot water at a maximum temperature of 62 ºC using only the heat pump.

Highlighted technical performance:

• SCOP in average climate (7 ºC): 3.37.
• SCOP in warm climate (14 ºC): 3.90.
• Annual energy consumption: 1,210 kWh (average climate).
• Maximum hot water capacity at 40 ºC (average climate): 340 liters.

Connected technology and advanced functions

The integrated standard WiFi connectivity allows you to control the unit via a mobile app, making it easy to adjust settings and monitor performance from anywhere. It also features weekly scheduling, OFF PEAK mode to optimize electricity consumption during lower-cost hours, and an automatic anti-legionella program that ensures the safety and hygiene of the stored water.

Available operating modes:

• Auto: Dynamic adjustment according to usage conditions.
• Eco: Maximum energy efficiency.
• Boost: Fast hot water production.
• Electric: Exclusive use of the backup electric heating element.
• Fan: Air circulation operation without DHW production.

Sustainable efficiency and durable design

The use of the eco-friendly R134A refrigerant, with a low global warming potential (GWP 1,430), underlines Ferroli's commitment to environmental sustainability. The heat pump incorporates an anti-corrosion system based on a double magnesium anode, which protects the 260-liter tank and extends its service life.

Design and sustainability specifications:

• Heat pump thermal power: 1,249 W.
• Backup electric heating element: 1,500 W.
• Sound power: 51 dB(A), suitable for residential environments.
• Tank losses: 70 W.
• Dimensions: Diameter 621 mm, height 1,892 mm.
• Weight: 100 kg.

Versatility and easy installation

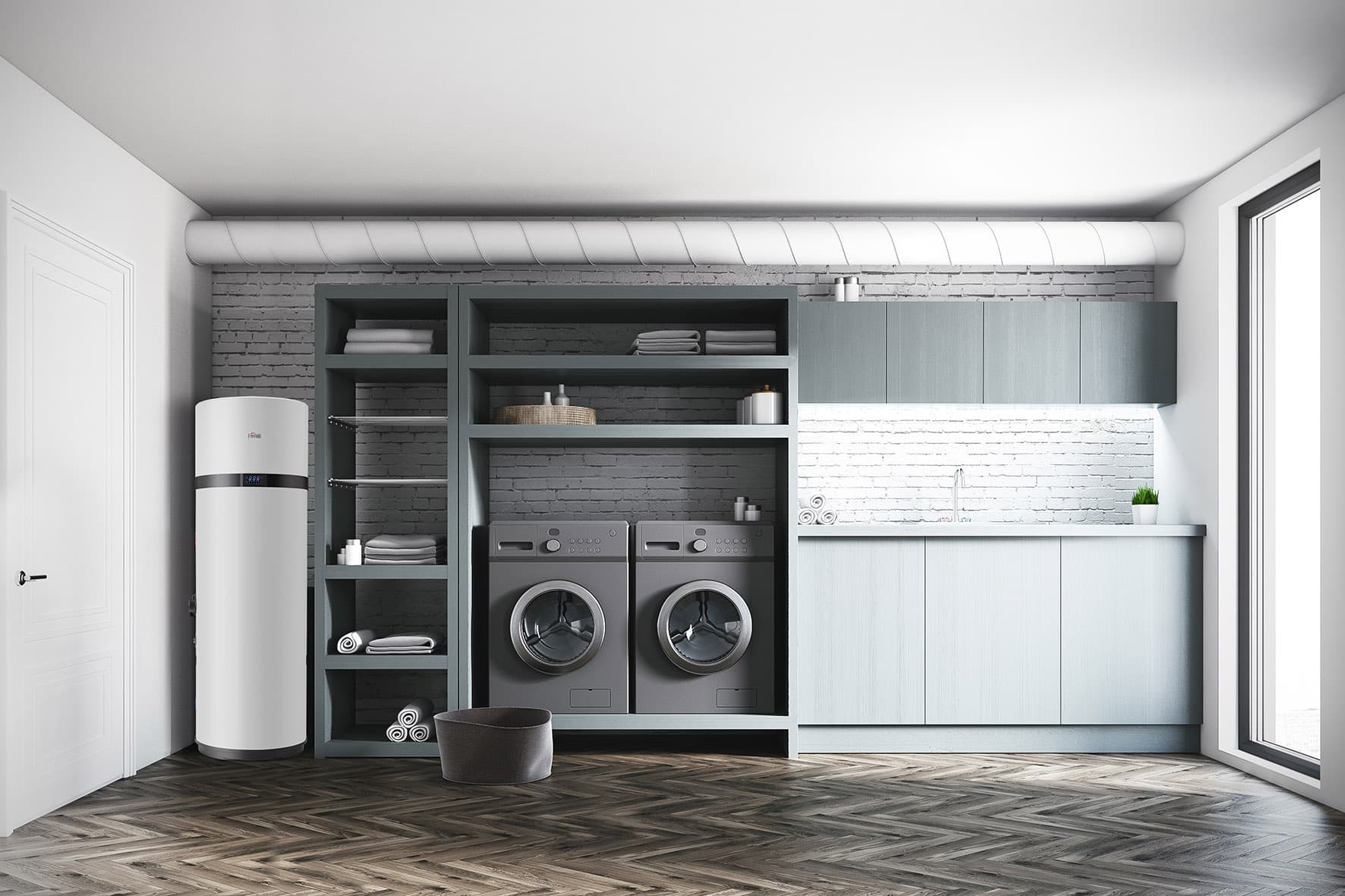

The compact design of the EGEA TECH LT 260 L makes it easy to integrate into indoor spaces with a minimum required room volume of 20 m³. It is also ready to connect to photovoltaic solar energy systems, allowing maximum use of renewable energy in DHW production.

Ease of use and maintenance

The intuitive control panel, integrated into the unit, provides easy access to all functions. It also includes energy monitoring and cascade control, allowing the connection of up to eight units for larger-scale applications.

Additional technical data

• Maximum water pressure: 7 bar.
• Operating air temperature: From -7 ºC to 38 ºC.
• Nominal airflow: 450 m³/h.
• Power supply: 230 V - 50 Hz.
• IP protection: IP-24.

The Ferroli EGEA TECH LT 260-liter heat pump combines innovation, sustainability, and superior performance, offering an ideal solution for those seeking efficiency and comfort in DHW production, even in demanding climate conditions.
