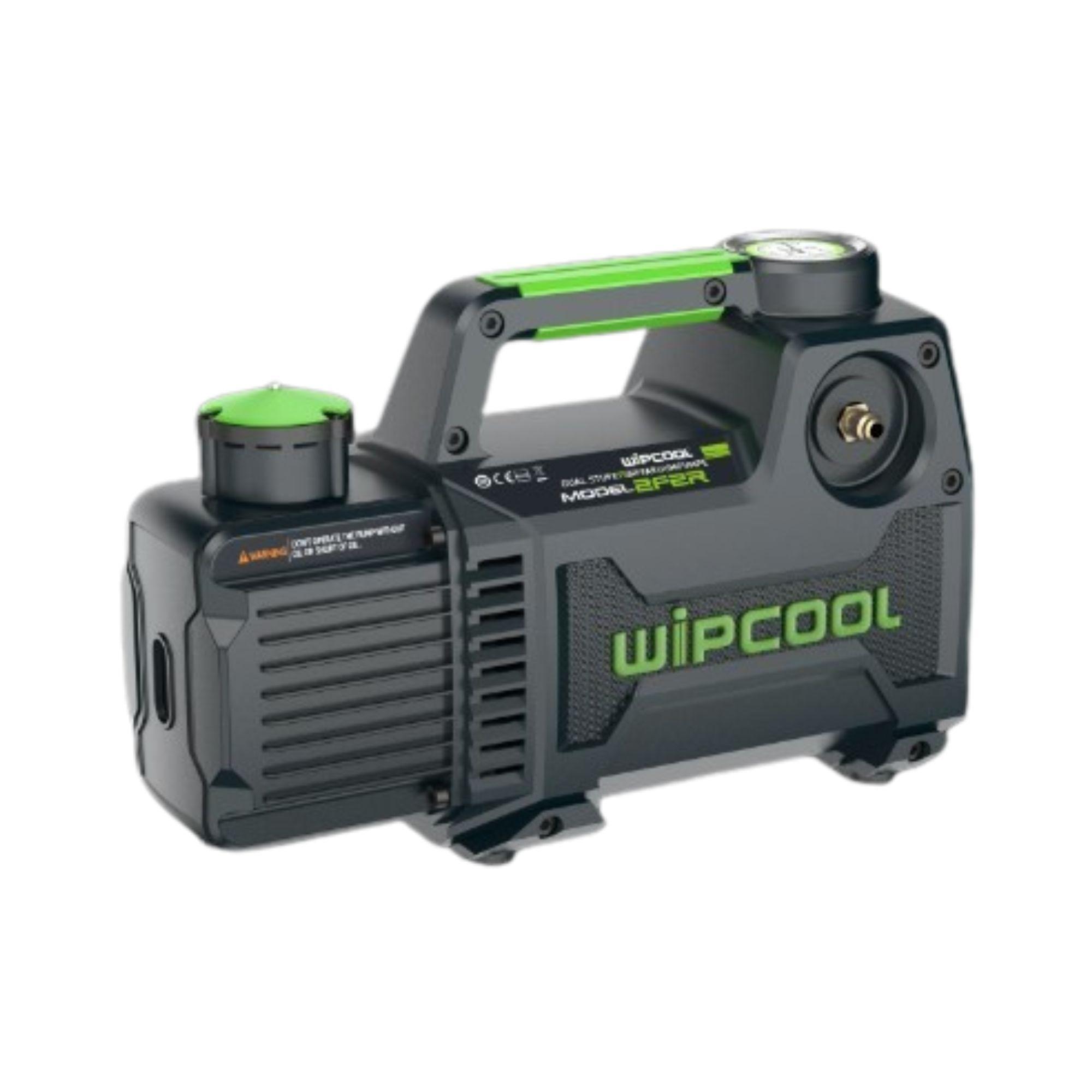

Double effect vacuum pump for R-32 42 L/min

The Zimaklima double effect vacuum pump for R-32 (reference 5012-2042) is an essential tool for refrigeration and air conditioning professionals, designed to deliver exceptional performance and a long lifespan. With a ultimate vacuum of 15 microns, this pump ensures an effective vacuum for refrigeration systems, guaranteeing a clean and fast evacuation process.

The 2F0R model has a power input of 1/4HP, sufficient to provide robust performance even in demanding applications. Its maximum flow rate of 1.5CFM (42 L/min) ensures quick and efficient draining of systems, improving work time and optimizing workflow in installation and maintenance tasks. This flow rate allows for effective evacuation of air and moisture, essential for maintaining the efficiency of the refrigerant system.

One of the standout features of the pump is its oil capacity of 280 ml, which allows the system to remain lubricated during use, without the need for frequent maintenance. Additionally, the patented spill-proof design prevents oil loss, significantly reducing operating and maintenance costs. This system ensures that there are no leaks that could affect the pump's performance or damage the work environment.

The Zimaklima vacuum pump also incorporates a superior vacuum gauge, making it easy to monitor working conditions. Thanks to its compact and lightweight design, weighing only 4.2 kg and measuring 309x113x198 mm, it is easy to transport and store. This makes it an ideal choice for those who need mobility without sacrificing power or efficiency.

The 2F0R model is equipped with a built-in solenoid valve, which prevents backflow and ensures uninterrupted operation. This not only enhances safety but also increases the operational reliability of the equipment, preventing damage from oil backflow.

The 1/4"SAE inlet port allows for easy and quick connection with other refrigeration and air conditioning equipment, streamlining the installation and operation process. With a new technology motor, the pump is more efficient and quieter, improving the user experience during operation.

The pump's integral cylinder structure contributes to greater reliability by eliminating potential weak points that could cause long-term issues. Thanks to the absence of oil injection, maintenance is simpler and the pump's lifespan is extended, reducing overall operating costs.

In summary, the Zimaklima double effect vacuum pump for R-32 42 L/min is a reliable, powerful, and efficient tool that offers a complete solution for professionals in refrigeration and air conditioning, enhancing both operational efficiency and safety in the evacuation process.

Technical specifications:

• Model: 2F0R
• Voltage: 230V~/50-60Hz or 115V~/60Hz
• Ultimate vacuum: 15 microns
• Power input: 1/4HP
• Maximum flow rate: 1.5CFM - 42 L/min
• Oil capacity: 280 ml
• Weight: 4.2 kg
• Dimensions: 309x113x198 mm
• Inlet port: 1/4"SAE
