Ducted Air Conditioner with WiFi Haier 13.4 kW 45000 BTU

The Haier 13.4 kW ducted air conditioner delivers maximum cooling power with a compact and quiet design. This new generation of medium-pressure units combines advanced technology, high efficiency, and total control via integrated Wi-Fi and the hOn app.

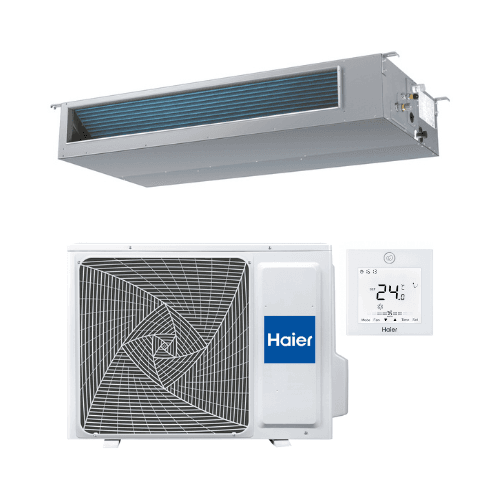

Set Components

• Indoor unit: AD140S2SM9FA(H)
• Outdoor unit: 1U140S2SN2FA
• Control: HW-SA201ABK wall thermostat

Technical Specifications

• Cooling capacity: 13.4 kW (4.0 ~ 15.0)
• Heating capacity: 15.0 kW (4.0 ~ 16.0)
• EER: 2.55 W/W
• COP: 3.30 W/W
• SEER: 6.10
• SCOP: 4.00
• Refrigerant: R32
• Operating range: −20 ~ 46 °C (cooling) / −20 ~ 24 °C (heating)
• Compressor: Twin Rotary Inverter

Design and Efficiency

The new compact design, just 248 mm high, makes installation easy even in low false ceilings. It features configurable air return (rear or bottom), integrated 1000 mm drain pump, and adjustable static pressure up to 150 Pa. Its Air Guard system with 99.9% antibacterial filtration and UVC sterilization ensures clean and safe air.

Comfort and Connectivity

Thanks to integrated Wi-Fi, the system can be controlled from anywhere using the hOn app or the HW-SA201ABK wall controller. Its quiet operation and high airflow make it an ideal solution for large homes, offices, or commercial spaces.

Dimensions and Weight

• Indoor unit: 1500 × 700 × 248 mm – 48 kg
• Outdoor unit: 950 × 370 × 965 mm – 68 kg

The Haier 13.4 kW ducted model 2025 stands out for its power, efficiency (SEER 6.10 / SCOP 4.00), and advanced purification, offering reliable, quiet, and connected climate control for the most demanding environments.
