Air conditioner with WiFi AirZen 2.6 kW 9000 BTU

The AZSP09 model from the new AirZen air conditioning range offers a smart, connected, and efficient solution for cooling rooms of up to 20-25 m². This split system includes an indoor unit (reference AZ09QHW-IN), an outdoor unit (AZ09QHW-OUT), and a YR-HE2 remote control with a built-in thermal sensor. The AirZen range is designed as a high-performance alternative with excellent value for money, making it ideal for both residential installations and small offices.

This unit delivers a nominal power of 2.6 kW in cooling (min.-max. 0.8-3.1 kW) and 2.8 kW in heating (min.-max. 0.8-3.3 kW), with low nominal consumption: 1.0 kW in cooling and 0.8 kW in heating, making it an energy-efficient choice. In terms of seasonal performance, it achieves a SEER of 6.1 (A++) and a SCOP of 5.5 (A+++), ensuring low energy consumption all year round.

Among its advanced features is Self Clean technology, which enables automatic cleaning of the evaporator by freezing the surface and removing dust during the defrosting process, contributing to cleaner air and easier maintenance. Additionally, its quiet design ensures remarkable acoustic comfort, with sound pressure levels as low as 19 dB(A) in minimum cooling mode.

Thanks to its built-in Wi-Fi, you can control the air conditioner from your smartphone via the app, allowing you to schedule or adjust the temperature from anywhere. The YR-HE2 remote control features the “I Feel” function, which detects the ambient temperature from the user's location, optimizing thermal regulation for greater precision and comfort.

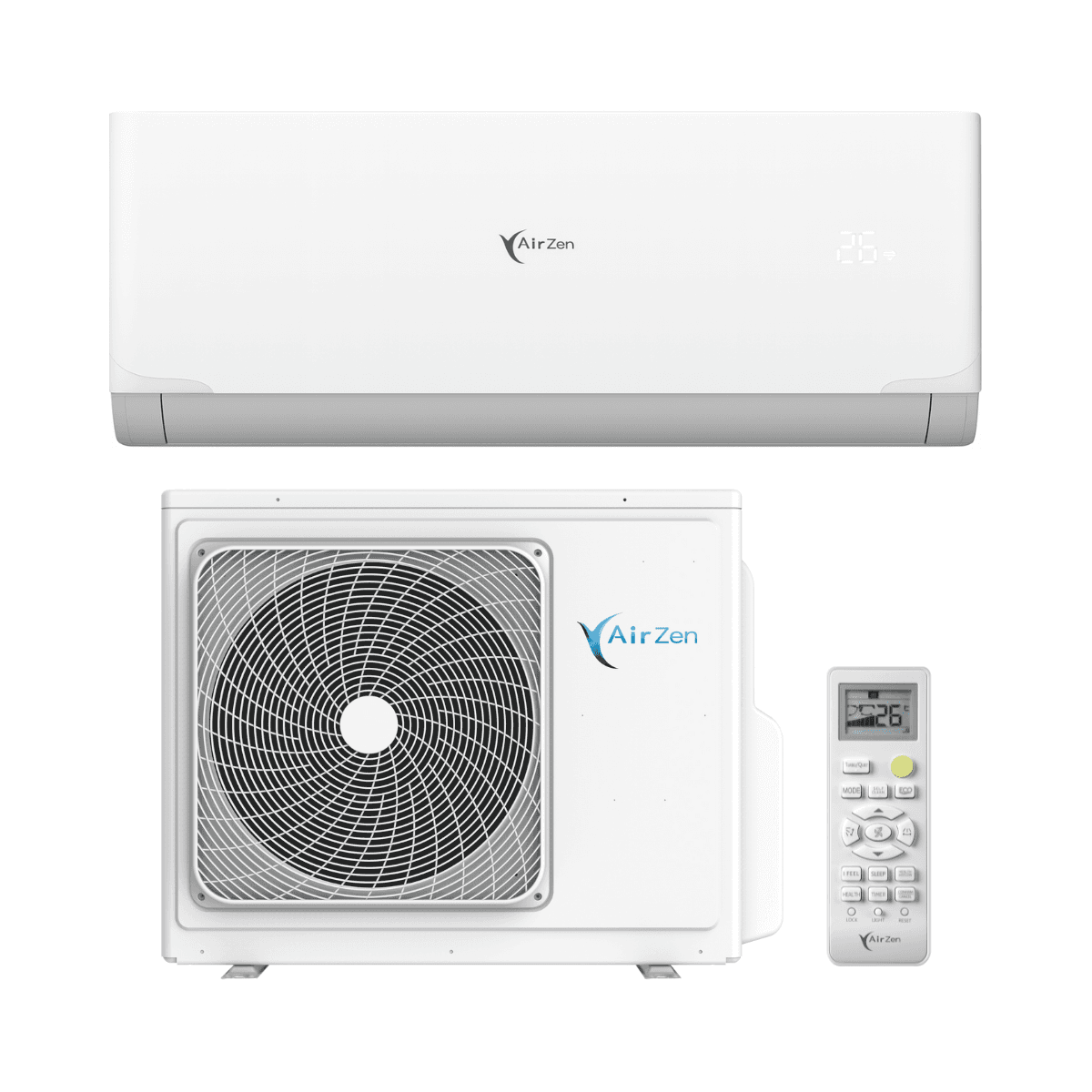

The set includes:

• Indoor unit AZ09QHW-IN, with an air flow rate of 500 m³/h and compact dimensions of 705 x 265 x 193 mm (W x D x H), ideal for discreet installation.
• Outdoor unit AZ09QHW-OUT, with an air volume of 1500 m³/h, dimensions of 660 x 245 x 463 mm, and a high-efficiency rotary inverter compressor.
• YR-HE2 remote control, with temperature sensor and advanced control functions.

The required refrigerant piping for installation is 1/4” (6.35 mm) for liquid and 3/8” (9.52 mm) for gas, with a standard R32 refrigerant charge of 460 g, no recharge needed for pipe lengths up to 5 meters. It supports a maximum pipe length of 15 meters and a height difference of up to 10 meters, with an additional 20 g/m of refrigerant if the standard length is exceeded.

The unit ensures reliable operation even in extreme conditions, with operating ranges in cooling from -20 °C to 50 °C and in heating from -20 °C to 24 °C outdoors.

• Cooling power: 2.6 kW | Heating power: 2.8 kW
• SEER: 6.1 (A++) | SCOP: 5.5 (A+++)
• Self Clean function for automatic evaporator maintenance
• Wi-Fi control and remote with “I Feel” function
• Minimum sound pressure of just 19 dB(A) in cooling mode
• Inverter compressor with eco-friendly R32 refrigerant
• Set includes AZ09QHW-IN + AZ09QHW-OUT + YR-HE2

The refrigerant connections for this model are 1/4” (6.35 mm) for liquid and 3/8” (9.52 mm) for gas. Be sure to observe the maximum pipe lengths and additional refrigerant charges for optimal performance.
