Air conditioner with WiFi AirZen 6.0 kW 24000 BTU

The AZSP24 air conditioner from the AirZen range is the perfect choice for cooling large spaces, spacious living rooms, open-plan offices, or commercial premises that require a robust, efficient, and quiet unit. This split system consists of an indoor unit AZ24QHW-IN, an outdoor unit AZ24QHW-OUT, and a YR-HE2 remote control with a temperature sensor, forming a complete set that combines professional features with ease of use.

With a nominal cooling capacity of 6.0 kW (min.-max. 1.3-7.4 kW) and 6.3 kW in heating (min.-max. 1.4-7.5 kW), this model ensures excellent performance in extreme climates, both in summer and winter. Its energy efficiency is outstanding, with a SEER of 6.7 (A++) and a SCOP of 5.4 (A+++), resulting in sustainable and economical operation all year round.

The nominal power consumption is 1.8 kW in cooling and 1.6 kW in heating, with an estimated annual consumption of 324 kWh for cooling and 1610 kWh for heating. Equipped with a rotary inverter compressor and R32 refrigerant, the unit offers stable, durable, and environmentally friendly operation.

Thanks to its Self Clean technology, the indoor unit automatically freezes and defrosts the evaporator to remove accumulated dust, keeping the system clean and efficient. In terms of noise, the minimum sound pressure in cooling mode is just 29 dB(A), making it a very quiet unit for its size.

The YR-HE2 remote control includes the “I Feel” function, which measures the temperature from the user’s position for more precise thermal regulation. In addition, the integrated Wi-Fi connectivity allows you to control all air conditioner functions from your smartphone or tablet via app.

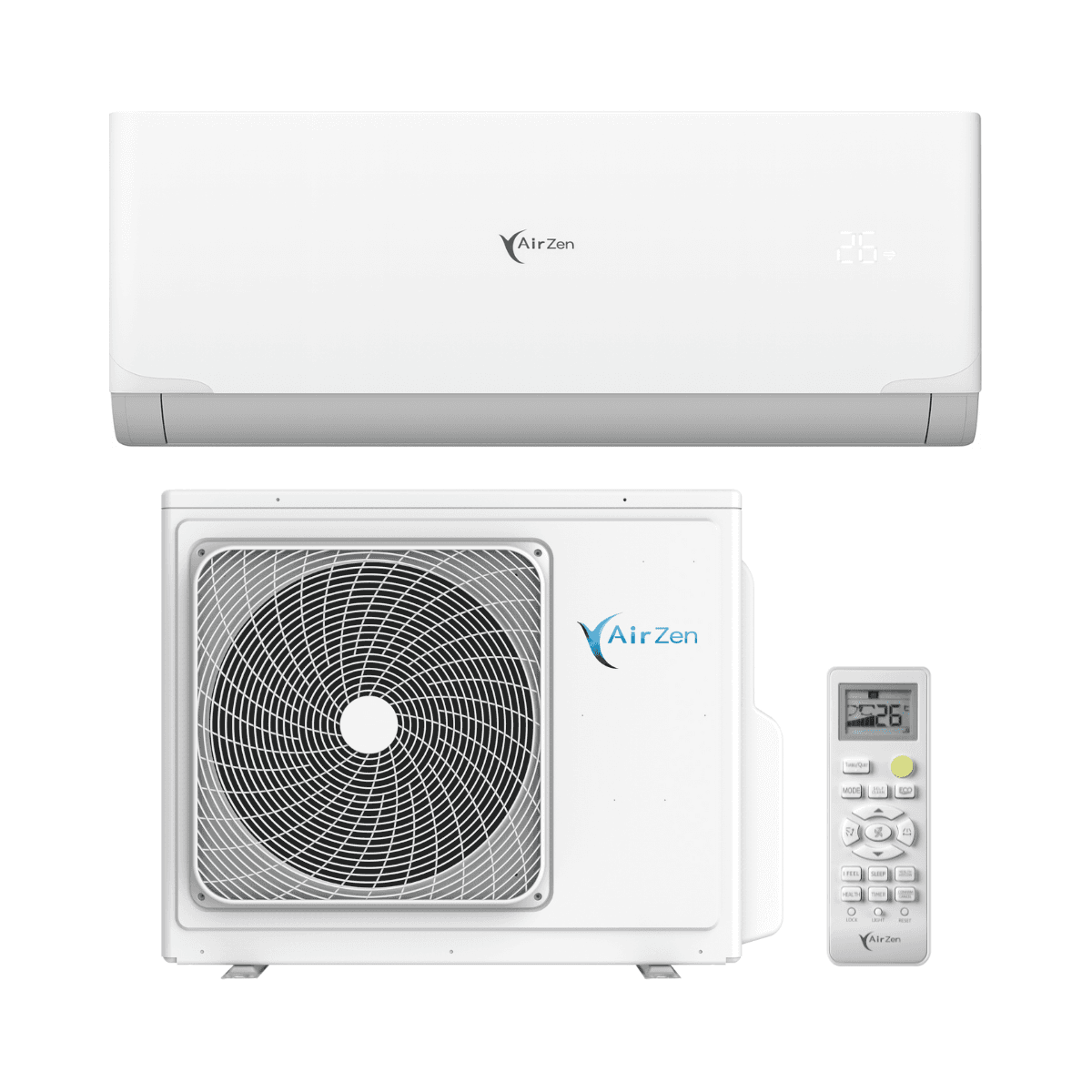

Set components:

• Indoor unit AZ24QHW-IN, with treated air flow of 1100 m³/h and dimensions of 975 x 222 x 318 mm.
• Outdoor unit AZ24QHW-OUT, with air volume of 2500 m³/h and dimensions of 800 x 280 x 553 mm.
• YR-HE2 remote control, with temperature sensor, timer, automatic modes, and silent function.

This model includes 900 g of R32 refrigerant, with a standard charge for up to 7 meters of piping. The refrigerant connections are 1/4” (6.35 mm) for the liquid line and 1/2” (12.70 mm) for the gas line. A maximum length of 25 meters and a height difference of up to 15 meters are allowed, with an additional charge of 20 g/m if the standard distance is exceeded.

The unit is designed to operate efficiently in extreme conditions, working from -20 °C to 50 °C in cooling and from -20 °C to 24 °C in heating.

• Nominal capacity: 6.0 kW (cooling) | 6.3 kW (heating)
• SEER: 6.7 (A++) | SCOP: 5.4 (A+++)
• Sound pressure from 29 dB(A)
• Inverter compressor and R32 refrigerant
• Self Clean system for automatic evaporator cleaning
• Wi-Fi control and remote with “I Feel” function
• Set includes AZ24QHW-IN + AZ24QHW-OUT + YR-HE2

The refrigerant connections for this model are 1/4” (6.35 mm) for liquid and 1/2” (12.70 mm) for gas. Please ensure you respect the maximum lengths and additional refrigerant charges for optimal performance.
