AirZen 3.2 kW 12000 BTU Air Conditioner with WiFi

The AZSP12 model from the AirZen range is an ideal choice for those seeking performance, connectivity, and comfort in medium-sized rooms. This split air conditioning set includes an indoor unit AZ12QHW-IN, an outdoor unit AZ12QHW-OUT, and the YR-HE2 remote control, creating a complete and easy-to-install system that combines technology, efficiency, and a competitive price.

With a nominal power of 3.2 kW in cooling (min.-max. 0.8-3.5 kW) and 3.6 kW in heating (min.-max. 0.8-3.9 kW), it delivers reliable performance all year round. Power consumption remains low, with just 1.2 kW in cooling and 1.0 kW in heating, resulting in an estimated annual consumption of 184 kWh for cooling and 875 kWh for heating. All this is complemented by outstanding energy efficiency, with a SEER of 6.1 (A++) and a SCOP of 5.6 (A+++), making this unit an efficient and sustainable choice.

Key features include Self Clean technology, which automatically cleans the evaporator by freezing and defrosting its surface, removing dust and improving indoor air quality. Its ultra-quiet design ensures high acoustic comfort, reaching just 20 dB(A) in minimum cooling mode.

The YR-HE2 remote control with “I Feel” function acts as a remote temperature sensor, detecting the thermal environment from the user's actual location and adjusting the climate more precisely. The integrated Wi-Fi connectivity allows you to control the system from a mobile app for a more personalized and convenient experience.

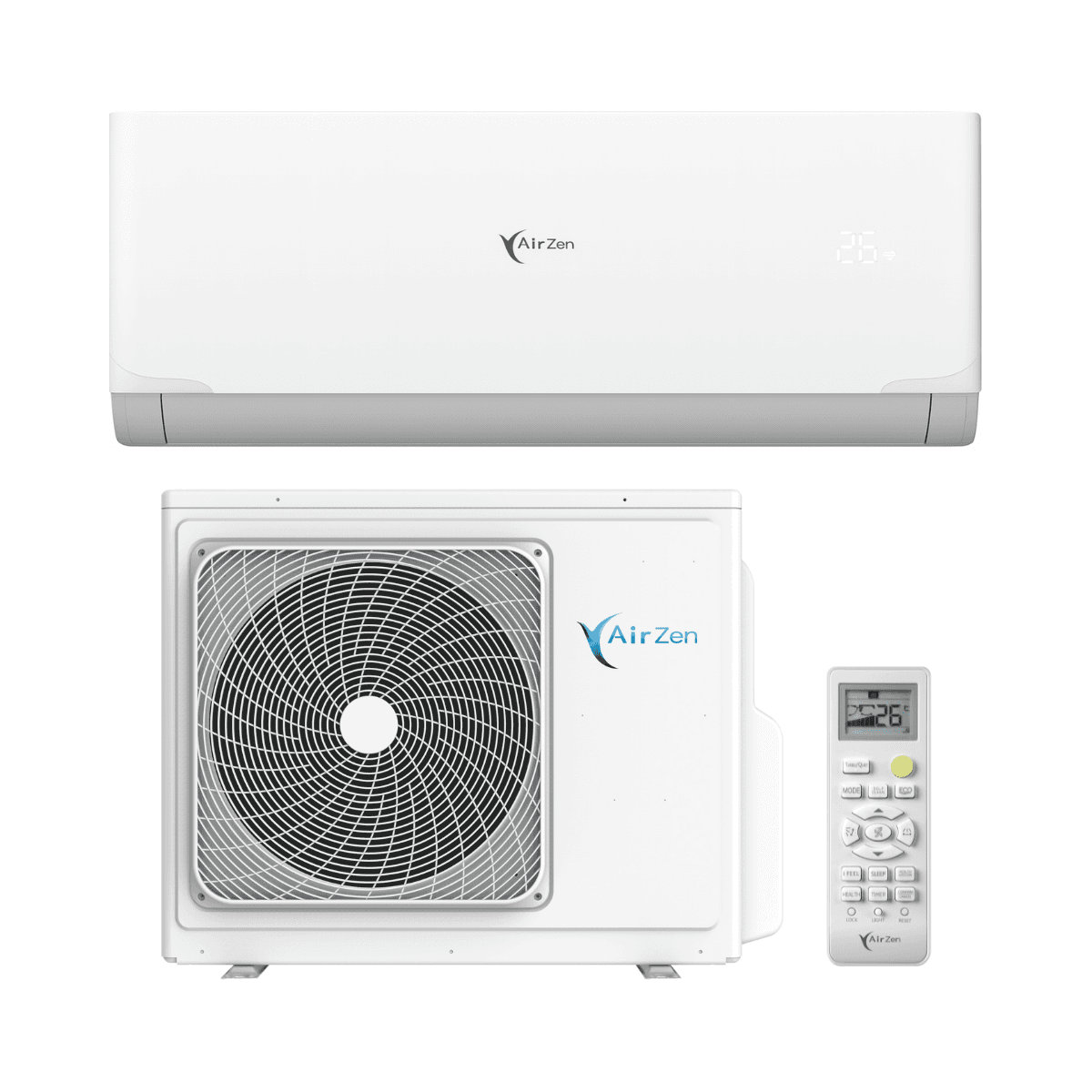

System components:

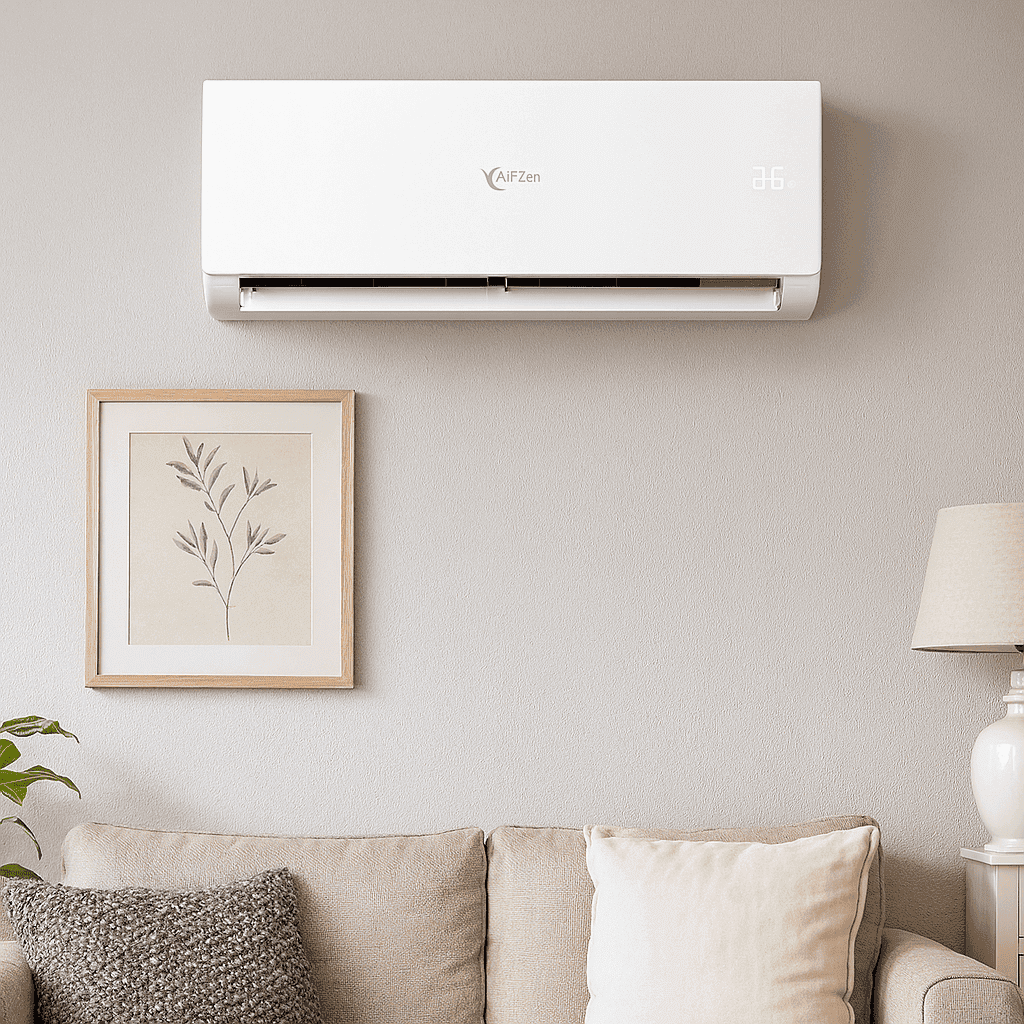

• Indoor unit AZ12QHW-IN, with an air volume of 550 m³/h and dimensions of 705 x 265 x 193 mm, compact and easy to integrate into any space.
• Outdoor unit AZ12QHW-OUT, delivering an air volume of 2100 m³/h and featuring a high-performance, low-noise rotary inverter compressor.
• YR-HE2 remote control, with advanced programming, silent mode, and “I Feel” function.

For installation, this model uses R32 refrigerant with a charge of 490 g, with no additional charge needed for up to 5 meters of piping. Refrigerant connections are 1/4” (6.35 mm) for the liquid line and 3/8” (9.52 mm) for the gas line. It supports up to 15 meters of piping length and a maximum height difference of 10 meters, with an extra 20 g/m of refrigerant beyond 5 meters.

This air conditioner is designed to operate reliably in extreme outdoor temperatures, functioning from -20 °C to 50 °C in cooling mode and from -20 °C to 24 °C in heating mode.

• Nominal power: 3.2 kW (cooling) | 3.6 kW (heating)
• SEER 6.1 (A++) | SCOP 5.6 (A+++)
• Sound pressure from just 20 dB(A)
• Smart control via app and “I Feel” function
• Self Clean system for improved hygiene
• Set includes AZ12QHW-IN + AZ12QHW-OUT + YR-HE2

The refrigerant connections for this model are 1/4” (6.35 mm) for liquid and 3/8” (9.52 mm) for gas. Be sure to observe maximum lengths and additional refrigerant charges for optimal performance.
