Vertical/Horizontal Electric Water Heater with WiFi Thermor Onix Connect 50

The Thermor Onix Connect 50, reference 231074, is a multiposition electric water heater with an extra-flat design for domestic hot water production. It combines WiFi connectivity, double vitrified tank, ceramic heating elements and electronic regulation to offer a compact, efficient and adaptable solution for different installation spaces. Although its commercial name is Onix Connect 50, the technical capacity indicated by Thermor for this reference is 40 liters.

Belonging to the Onix Silver Connect Serie Ellite range, this water heater is especially designed for installations where making the most of available space is a priority. Its flat format reduces the unit depth and allows it to be installed both vertically and horizontally, making it easy to integrate into bathrooms, kitchens, utility rooms, technical cabinets and other areas intended for DHW production.

WiFi connectivity and control via Cozytouch

The Thermor Onix Connect 50 includes WiFi connection to manage different functions of the water heater from the free Cozytouch app. The app allows you to view water and electricity consumption information, as well as schedule the unit's operating hours to adapt hot water production to the needs of the home.

In addition to smartphone control, the water heater features an integrated touch digital display that allows direct management of its different operating modes.

Four smart regulation modes

The water heater offers four regulation modes: Eco+, Manual, Turbo and Away, allowing its operation to be adapted to different usage situations.

• Eco+: learns usage habits to adapt hot water production and reduce energy consumption.
• Manual: allows operation to be configured according to the user's needs.
• Turbo: intended for situations where a temporary increase in hot water availability is required.
• Away: designed for periods when the home does not require the water heater's usual operation.

Double vitrified tank and ceramic heating element

The Onix Connect 50 is built with a double vitrified tank, a solution that makes its characteristic extra-flat design possible while maintaining adequate storage capacity.

Heating is provided by a double sheathed ceramic heating element with low load rate. The sheathed configuration prevents direct contact between the heating element and the water, while protection of the tank is completed by a double magnesium anode.

The water heater also incorporates high-density thermal insulation, designed to reduce heat losses from the stored water and promote energy-efficient operation.

BriseJet system for better water stratification

Thermor's BriseJet system is designed to achieve optimal water stratification inside the water heater. This technology helps control the entry of cold water to reduce mixing with the stored hot water and make more efficient use of the available volume.

For reference 231074, Thermor specifies a heating time of 1 hour and 46 minutes to 65 °C with a temperature increase of 50 °C.

Vertical or horizontal installation

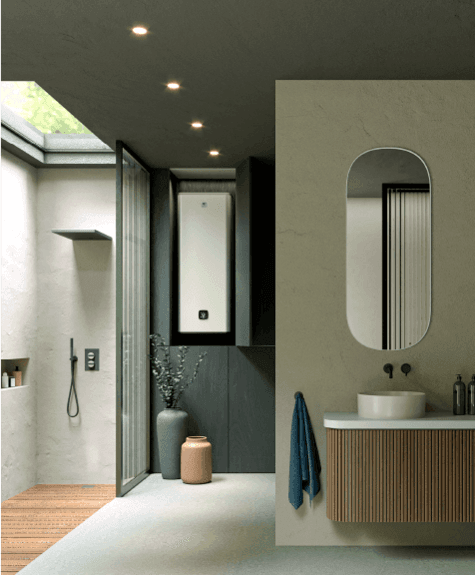

One of the main advantages of the Thermor Onix Connect 50 electric water heater is its multiposition configuration. It can be installed both vertically and horizontally, making it easier to adapt to homes where there are height or available space limitations.

When installed horizontally, Thermor specifies that the hydraulic connections must be positioned on the left. The unit also includes a mounting plate as standard to facilitate installation.

With only 290 mm depth, its extra-flat design is especially suitable for installations where the space occupied by the water heater needs to be reduced as much as possible.

Energy efficiency and performance

The Thermor Onix Connect 50 has energy efficiency class B and load profile M. Its electrical power is 2250/1000 W and it operates with a 230 V supply.

The combination of the Eco+ function, high-density thermal insulation, the BriseJet system and Cozytouch connectivity allows more precise management of domestic hot water production and consumption.

Technical features of the Thermor Onix Connect 50

• Brand: Thermor
• Range: Onix Connect Serie Ellite
• Model: Onix Silver Connect 50
• Reference: 231074
• Type: multiposition electric storage water heater
• Technical capacity: 40 liters
• Power: 2250/1000 W
• Voltage: 230 V
• Energy efficiency class: B
• Load profile: M
• Heating time to 65 °C, Δt 50 °C: 1 h 46 min
• Hydraulic connections: 1/2"
• Weight: 25 kg
• Connectivity: WiFi
• App: Cozytouch
• Control: touch digital display
• Regulation modes: Eco+, Manual, Turbo and Away
• Installation: vertical or horizontal
• Horizontal installation: connections positioned on the left
• Storage: double vitrified tank
• Heating elements: double sheathed ceramic heating element with low load rate
• Protection: double magnesium anode
• Insulation: high-density thermal insulation
• Stratification system: BriseJet
• Color: silver

Dimensions of the Thermor Onix Connect 50

• Total height: 765 mm
• Width: 490 mm
• Depth: 290 mm
• Weight: 25 kg

According to the manufacturer's technical drawing, the dimensions corresponding to reference 231074 are H: 765 mm, A: 610 mm, B: 290 mm, C: 155 mm, D: 500 mm and E: 490 mm.

Thermor warranty

Thermor indicates for the Onix Connect range a 7-year commercial warranty on the tank and 5 years on the electrical components when the user registers the product warranty at thermor.es. The manufacturer also establishes a 3-year full warranty, in accordance with its warranty conditions.

The vertical/horizontal electric water heater with WiFi Thermor Onix Connect 50 is a compact and connected solution for domestic DHW installations. Its technical capacity of 40 liters, extra-flat design, Cozytouch control, double vitrified tank, ceramic heating elements and the possibility of vertical or horizontal mounting offer a combination of flexibility, comfort and energy control.
