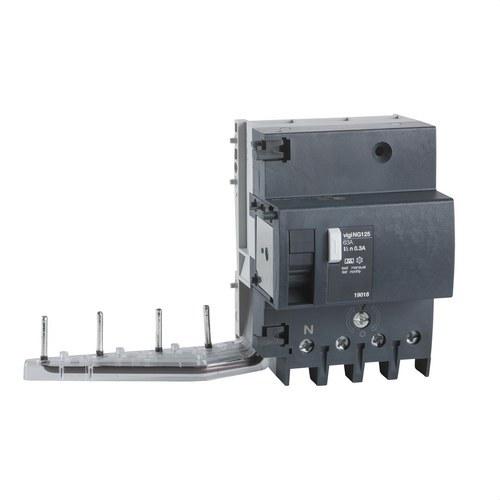

VIGI NG125/63 4P 300mA AC Class Residual Current Circuit Breaker

Technical description

Schneider Electric Vigi NG125 residual current block for coupling to NG125 circuit breakers. Provides residual current protection against earth leakage in low-voltage installations.

Applications and advantages

Suitable for industrial and commercial distribution boards and main incomers where additional residual current protection is required for the NG125 range.

Technical features

• Range: NG125 / Vigi NG125.
• Product type: add-on residual current block.
• Number of poles: 4P.
• Rated current: 63 A.
• Residual current sensitivity: 300 mA.
• Residual current protection class: AC.
• Voltage-independent technology.
• Designed to protect against indirect contact and fire risks due to insulation faults.

Installation

Must be used only with compatible NG125 circuit breakers and installed according to the manufacturer's instructions.
