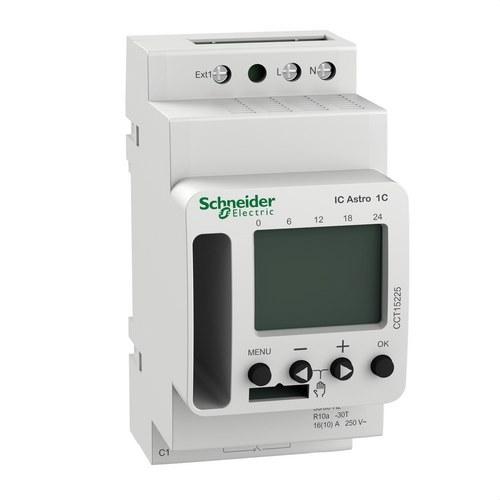

Acti9 IC SMART Astronomical and Twilight Switch 1 Channel

The Acti9 IC SMART 1 Channel Astronomical and Twilight Switch by Schneider Electric is an advanced and efficient solution for automatically managing electrical loads, adjusting to sunrise and sunset times according to geographical location. This switch is designed to start and stop power supply in accordance with natural light cycles, making it ideal for residential, commercial, or industrial applications where lighting or other equipment needs to be managed based on daylight hours.

Technical Features:

• Product Range: Acti9
• Product Type: Programmable Astronomical Twilight Switch
• Number of Channels: 1 channel
• Rated Operational Voltage (Ue): 230 V AC (+10% -15%) at 50/60 Hz
• Maximum Switching Power:
  • Incandescent and Halogen Lamps: 2600 W
  • Fluorescent Tubes without Correction: 2300 VA
  • Fluorescent Tubes with Parallel Compensation: 730 VA (80 µF)
  • Compact Fluorescent Lamps: 170 W
  • LED Lamps (<2 W): 30 W
  • LED Lamps (>2 W): 200 W
• Accuracy: +/- 0.25 s/day at 25°C
• Power Consumption: 0.5 W in standby mode
• Dimensions: 45 mm wide (equivalent to 5 modules of 9 mm)
• Display: Backlit LCD
• Weight: 115 g

The astronomical switch automatically calculates sunrise and sunset times based on the geographical location, eliminating the need for external light sensors. This makes it a very precise and easy-to-configure solution for automatically turning lights or other electrical loads on and off, saving energy and reducing equipment wear.

Additional Advantages:

• Weekly Programming: The Acti9 IC SMART allows detailed programming with up to 84 switchings per week, providing great flexibility to manage the on/off times of electrical loads.
• Automatic Summer and Winter Time Change: The switch automatically adjusts the time according to seasonal changes, eliminating the need for manual adjustments and ensuring equipment operates efficiently throughout the year.
• Holiday Function: This switch features a lock and holiday schedule function, allowing regular switchings to be deactivated during absence periods, ensuring that electrical loads are not unnecessarily active.

Control and Operation:

This model features a backlit LCD display that facilitates viewing and configuring programming, as well as providing detailed information on system status, such as the time, daily switching behaviour, and runtime counter. It has 4 control buttons that allow manual adjustments to configurations and enable remote or manual replacements if necessary.

The switch also allows compensation adjustments to modify sunrise and sunset times based on specific installation needs, offering additional flexibility in operation.

Installation and Compatibility:

The Acti9 IC SMART astronomical switch is easily mounted on a DIN rail TH35 in accordance with EN 60715 standard, making it a simple and quick option to install in electrical panels. Additionally, its screw terminals provide a secure connection for solid or flexible cables up to 2.5 mm².

This switch is compatible with a wide variety of electrical loads, from incandescent and halogen lamps to low-power LED lamps, making it ideal for managing different types of lighting in an installation.

Additional Specifications:

• Cycle Duration: 7 days with weekly programming
• Maximum Switching Current: 16 A - 250 V AC (pf = 1)
• Minimum Switching Current: 10 mA at 230 V AC
• Output Type: Dry contact
• Battery Backup: Up to 1 year reserve to ensure programming is maintained in case of power loss.
• Certifications and Standards: Complies with CE standards and features electrical insulation class Class II and overvoltage category Class 3.
