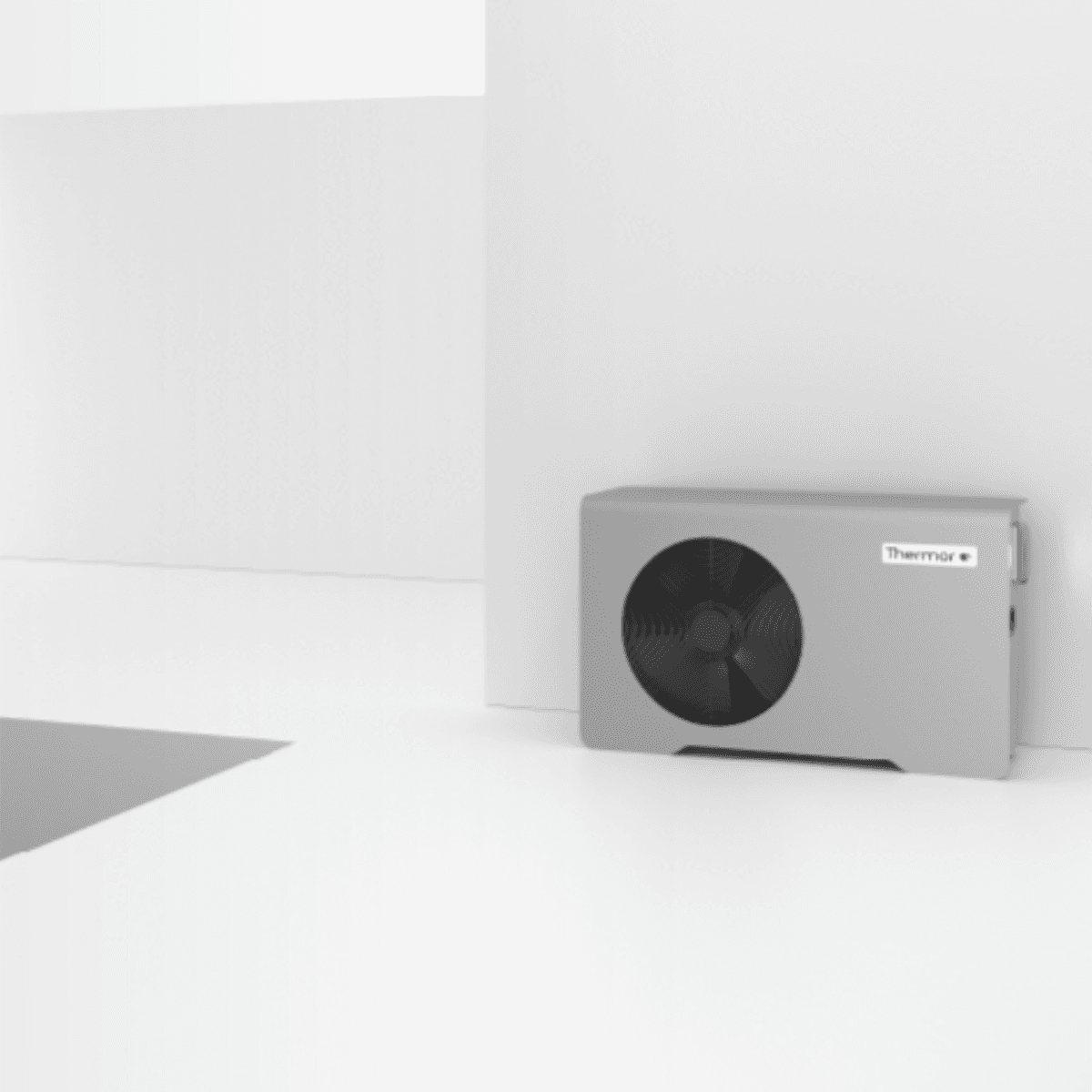

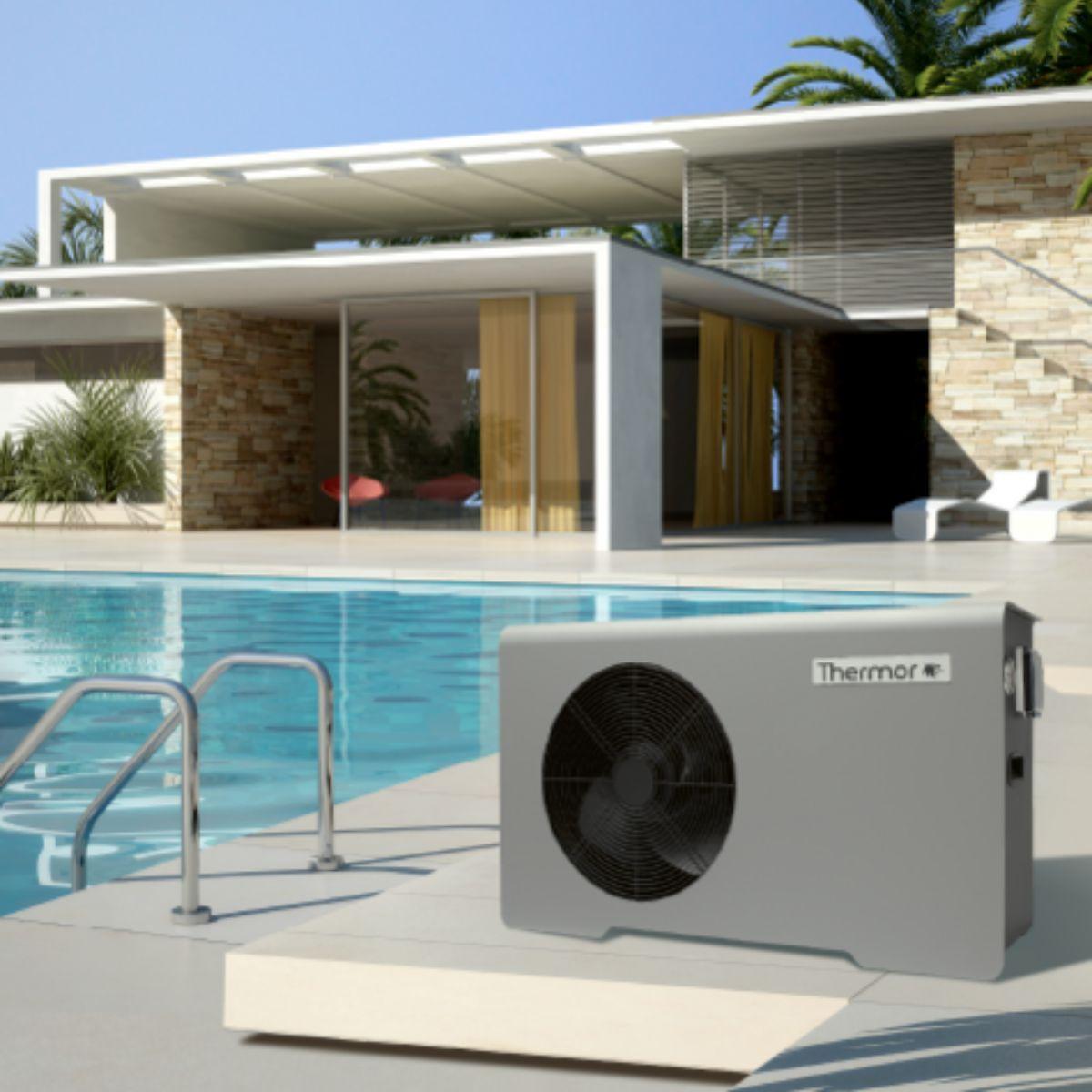

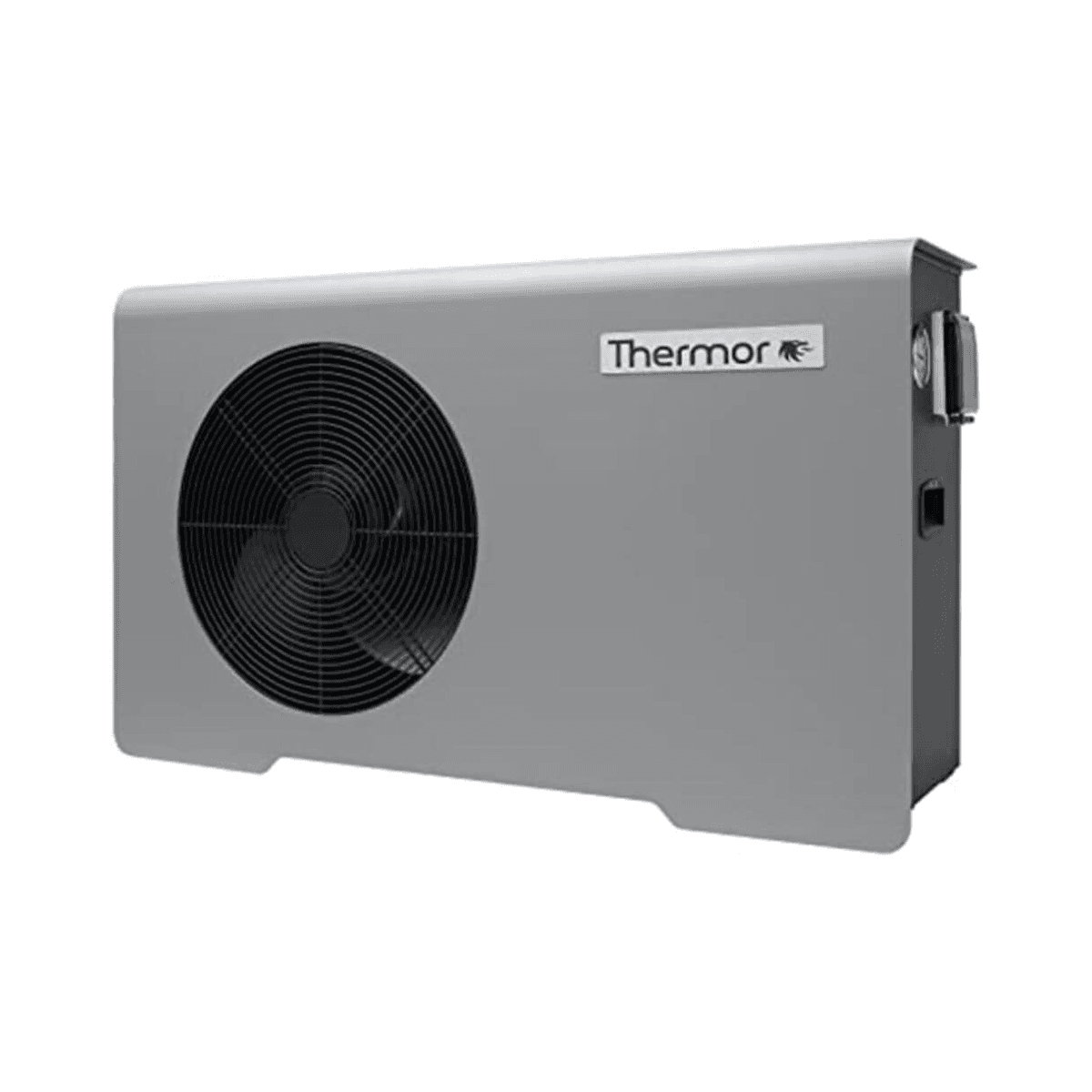

Thermor Aéromax 12 kW Swimming Pool Heat Pump

The Thermor Aéromax 12 kW is a heat pump for pools up to 75 m³, designed to extend the swimming season with optimized energy consumption. Its thermodynamic system harnesses the energy from the outside air to efficiently heat the water, achieving a COP of up to 5.76 at 24 °C, ensuring high performance with low electrical consumption.

The high corrosion-resistant titanium heat exchanger allows its use with all types of water treatments, including salt chlorination. Its galvanized steel structure with a grainy gray finish and hidden fixings gives it a discreet and elegant design, also ensuring great durability against the elements.

Maximum Efficiency and Energy Savings

The Aéromax 12 kW is designed to offer exceptional performance with reduced consumption. Its efficiency values under different climatic conditions are:

• Air 15 °C / Water 26 °C: Delivered power 10.07 kW | COP 4.66
• Air 24 °C / Water 26 °C: Delivered power 12.46 kW | COP 5.76

Additionally, its use of R32 refrigerant improves thermal efficiency and reduces environmental impact, complying with European energy efficiency standards.

Robust Design and Advanced Resistance

Thermor has developed the Aéromax 12 kW with high-quality materials to ensure a prolonged lifespan. The tropicalized electronic board features an anti-corrosion treatment that protects it against humidity and adverse weather conditions.

To ensure greater protection during transport and installation, the unit is delivered in a wooden box, minimizing the risk of damage.

Quick Installation and Remote Control

The installation of the Aéromax 12 kW is simple and does not require handling refrigerant gases, as it only needs Ø 50 mm hydraulic connections. Additionally, its remote control with a 10-meter cable allows for comfortable and precise water temperature management.

Technical Specifications

• Recommended pool volume: up to 75 m³
• Delivered power: 10.07 kW (air 15 °C / water 26 °C)
• Delivered power: 12.46 kW (air 24 °C / water 26 °C)
• Maximum COP: 5.76
• Operating range: 2 °C to 35 °C
• Water temperature range: Above 4 °C
• Water flow: 10 m³/h
• Refrigerant: R32
• Exchanger: Titanium
• Sound pressure: 57 dB(A)
• Power supply: 230 V / 50 Hz
• Nominal current: 8.4 A
• Maximum absorbed power: 2610 W
• Dimensions: 1115 mm (length) x 394 mm (depth) x 706 mm (height)
• Weight: 85 kg

The Thermor Aéromax 12 kW pool heat pump is the ideal choice for those seeking an efficient, durable, and easy-to-install system to maintain water temperature with optimized energy consumption.
