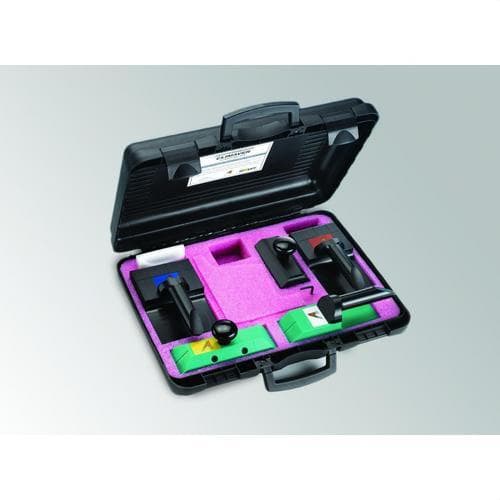

Set of Three Cutting Tools for Climaver Panels

The CLIMAVER Saint-Gobain ISOVER KD25706 tool set is a professional case specifically designed for cutting and machining panels and ducts in the CLIMAVER system. The set includes three MM tools for half-lap cuts and two MTR tools for making perpendicular and 22.5° cuts, allowing the main operations required during the fabrication and installation of CLIMAVER HVAC ducts to be carried out.

The tools have been developed by ISOVER to work in accordance with the construction methods of the CLIMAVER system, making it easier to perform precise, repeatable cuts directly on the panels. The set is supplied in a transport case measuring 485 x 375 x 130 mm, which keeps the tools organized and protected during transport and on-site work.

Main features of the CLIMAVER KD25706 tool set

• Brand: Saint-Gobain ISOVER.
• Range: CLIMAVER.
• Reference: KD25706.
• Type: professional cutting tool set for CLIMAVER panels and ducts.
• Presentation: tool case.
• MM tools included: 3 units.
• MTR tools included: 2 units.
• Total cutting tools: 5 units.
• MM application: half-lap cuts.
• MTR application: perpendicular cut and 22.5° cut.
• Use: fabrication and machining of CLIMAVER ducts.
• Packaging dimensions: 485 x 375 x 130 mm.
• Set weight: approximately 4.30 kg.

Specific tools for CLIMAVER ducts

The KD25706 set has been specifically developed for use with the CLIMAVER duct system by Saint-Gobain ISOVER. Unlike generic cutting tools, CLIMAVER tools are designed to carry out the necessary machining on the panels in a way that matches the manufacturer's installation method.

This allows the installer to make the folds, joints, and transformations required during the construction of HVAC ducts, while maintaining the proper cutting geometry for subsequent assembly.

Three MM tools for half-lap cuts

The case includes three CLIMAVER MM tools. The initials MM stand for Half-Lap, the cutting system used to machine the panel and allow it to be folded later when forming the duct.

These tools are designed to make the cuts needed for the fabrication of straight sections and for other operations where the panel must be machined without cutting through all its layers completely.

According to ISOVER technical documentation, MM tools are used especially together with the CLIMAVER MM Square Rule, making it possible to carry out the measuring and cutting operations required to build the duct in an orderly manner.

Two MTR tools for figure fabrication

In addition to the MM tools, the KD25706 set includes two tools intended for the Straight Section Method, or MTR. This procedure makes it possible to fabricate different shapes and transitions from a previously built straight section.

The two included MTR tools allow:

• Perpendicular or 90° cut.
• 22.5° cut.

These angles are used during the construction of parts and direction changes using the MTR method defined by ISOVER for CLIMAVER ducts.

CLIMAVER Straight Section Method

The Straight Section Method (MTR) is a fabrication procedure developed to obtain duct shapes from straight sections. The specific tools in the case help make the required angular cuts following the corresponding marking lines.

This allows the installer to create different configurations while maintaining a systematic cutting process adapted to CLIMAVER duct construction.

Half-lap cuts for panel folding

The half-lap cut makes it possible to remove or partially machine certain areas of the panel to facilitate the folding of its faces to 90° during duct formation.

The MM tools are specifically designed for this type of work, allowing the panel to be machined according to the geometry required by the CLIMAVER system and making subsequent duct assembly and closing easier.

Case for transport and organization

The tools are supplied together in a dedicated case, making it easier to transport them between workshop and job site and helping keep each tool properly organized.

The official Saint-Gobain ISOVER price list states that reference KD25706 has a presentation size of 485 x 375 x 130 mm and an approximate weight of 4.30 kg.

The case is especially practical for professional installers who regularly work with CLIMAVER panels and need to have the machining tools available in different locations.

Applications of the CLIMAVER tool set

The set is intended for professionals involved in the fabrication and installation of HVAC ducts made with CLIMAVER panels. Its main applications include:

• Construction of CLIMAVER ducts.
• Cutting and machining of HVAC panels.
• Half-lap cutting.
• Folding and shaping of straight sections.
• Fabrication of shapes using the Straight Section Method.
• Perpendicular cuts for MTR transformations.
• 22.5° angle cuts.
• Professional installation work for air conditioning and ventilation ducts.

Contents of the KD25706 case

According to official Saint-Gobain ISOVER documentation, reference KD25706 is supplied as a complete set made up of:

• 3 CLIMAVER MM tools for half-lap panel cutting.
• 2 CLIMAVER MTR tools for duct cuts according to the Straight Section Method.
• 1 case for storage and transport of the set.

Therefore, although some commercial descriptions may refer to a three-tool set, the official configuration of reference KD25706 contains five cutting tools: three MM and two MTR.

Technical data for the Saint-Gobain ISOVER KD25706 tool set

• Manufacturer: Saint-Gobain ISOVER Ibérica.
• Brand: ISOVER.
• System: CLIMAVER.
• Reference: KD25706.
• Official name: CLIMAVER Tool Set.
• Supply format: tool box / case.
• MM tools: 3.
• MTR tools: 2.
• Total number of tools: 5.
• MM cut type: half-lap.
• MTR cut types: perpendicular and 22.5°.
• Presentation dimensions: 485 x 375 x 130 mm.
• Approximate weight: 4.30 kg.
• Supply unit: 1 tool box.

Professional tools for CLIMAVER installation

The CLIMAVER KD25706 tool set brings together in a single case the tools needed to perform both half-lap cuts and the main cuts used in the Straight Section Method. This allows the installer to work with a set specifically developed for the duct fabrication procedures defined by Saint-Gobain ISOVER.

The combination of three MM tools and two MTR tools makes this case a specialized accessory for professionals who fabricate and install CLIMAVER ducts and need to make repetitive cuts adapted to the manufacturer's construction system.
