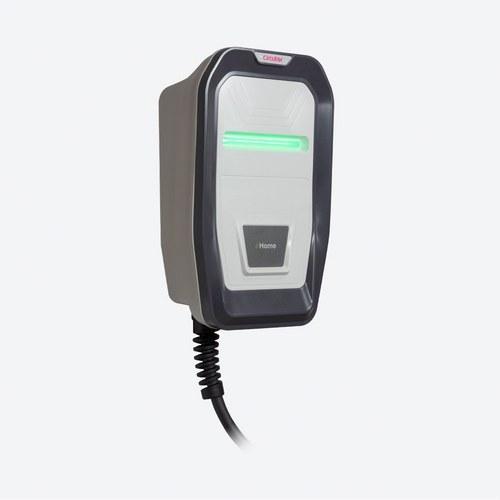

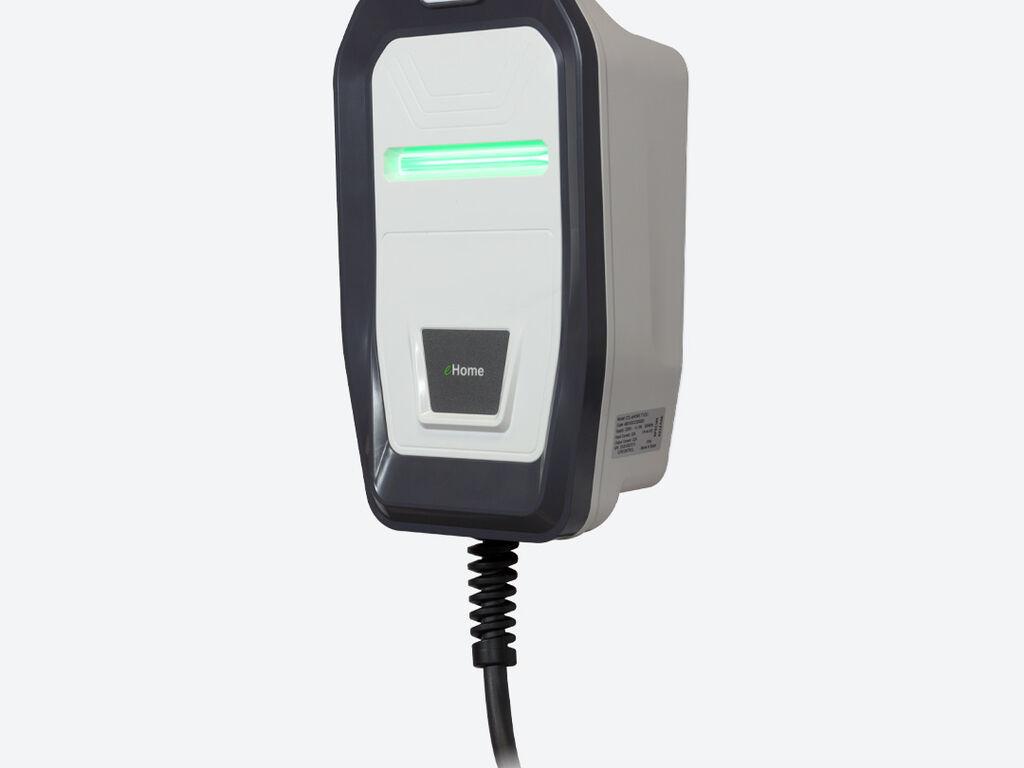

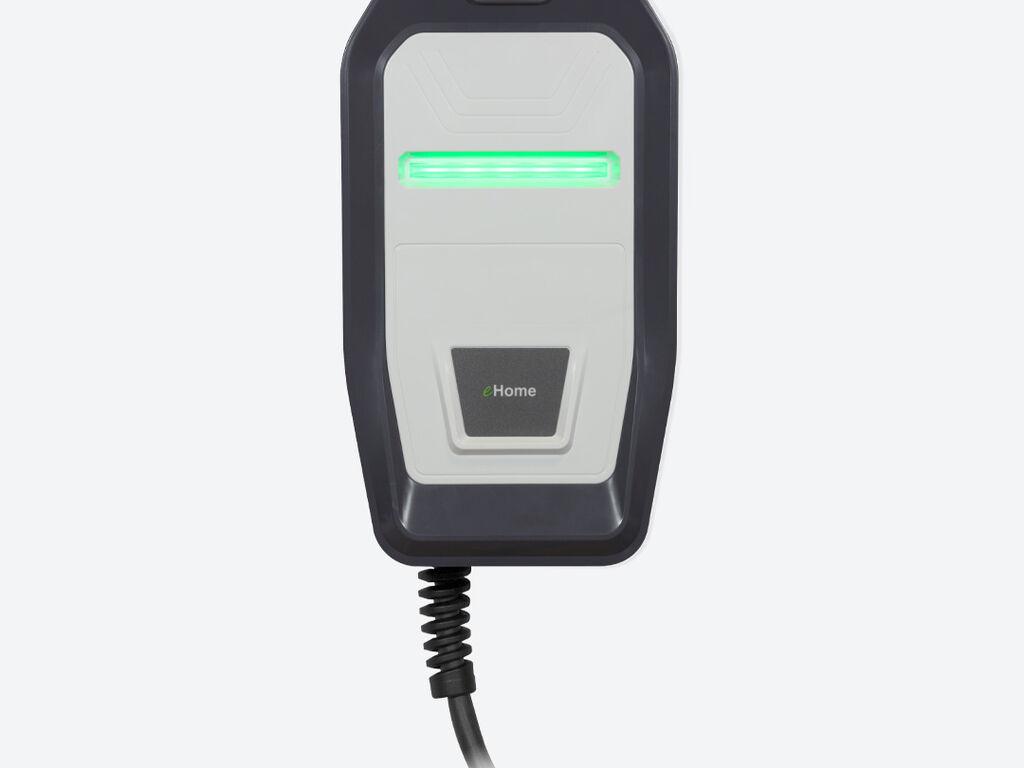

Single-phase electric car charger 7.4kW Type 2 Circutor eHome T2C32

The single-phase charger Circutor eHome T2C32 (code V25030) is a domestic charging solution designed to offer an optimal balance between cost and features. This model, part of Circutor's eHome range, provides 7.4 kW of power and is especially designed for installation in private garages or protected outdoor areas. Its compatibility with all electric vehicles and ease of installation make it an ideal choice for the residential sector.

Efficient Mode 3 charging with Type 2 connector: The Circutor eHome T2C32 operates in Mode 3, in accordance with standard IEC 61851-1, ensuring a safe and efficient connection between the vehicle and the charger. Its integrated Type 2 cable allows for single-phase charging with a maximum power of 7.4 kW and an output current of 32 A, guaranteeing fast and safe charging for any compatible electric vehicle.

Easy installation and robust design: The charger is designed for easy installation on walls with a three-point anchorage, and its self-extinguishing ABS-PC plastic casing ensures high mechanical resistance. With a protection rating of IP54, it is resistant to water splashes and dust, making it suitable for both indoor and outdoor use. Additionally, it features IK10 impact protection, ensuring its durability in domestic environments.

LED indicator and intuitive use: The eHome T2C32 features a LED indicator that clearly shows the charging status, facilitating the monitoring of the process. Although its design is minimalist, this device is optimised to offer all the necessary functionalities for everyday home use, providing a practical and accessible solution for electric vehicle owners.

Compatibility with CirBEON for power management: This charger is compatible with the CirBEON-63 device, which allows the management of power supplied to the vehicle based on the available power at home, preventing overloads and maximising the efficiency of the home's electrical system. This functionality makes it an ideal choice for domestic use, enabling smart charging that adjusts to the user's needs.

Technical specifications:

• Nominal voltage: 230 V~ (± 10%).
• Maximum current: 32 A.
• Output power: 7.4 kW.
• Charging mode: Mode 3 (IEC 61851-1).
• Connector: Type 2 Cable.
• Protection rating: IP54 / IK10.
• Dimensions: 180 x 315 x 115 mm.
• Weight: 3.39 kg.

Performance in various environmental conditions: The Circutor eHome T2C32 is designed to operate optimally in a working temperature range of -5ºC to +45ºC, with a relative humidity of 5% to 95%, making it suitable for various environments. Additionally, its ability to operate at extreme temperatures (with an optional climate heater) ensures its reliability in challenging weather conditions.

Applications: This charger has been specifically designed for use in private garages and domestic parking spaces, being the perfect option for users seeking an efficient and economical charging solution for their electric vehicle.

The Circutor eHome T2C32 offers a practical and accessible solution for electric vehicle charging in residential environments, combining high efficiency, robust design, and intelligent energy management.
