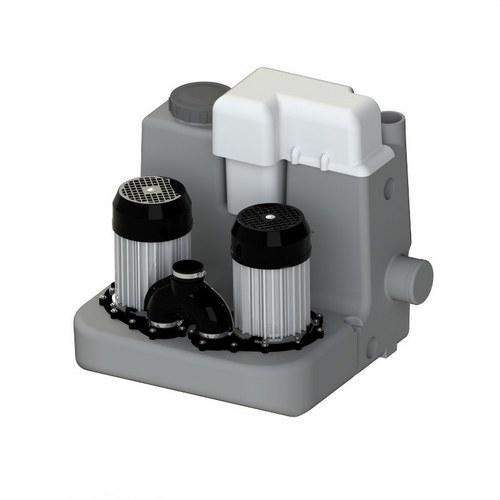

SFA SANICOM 2 evacuation pump for collective use

The SFA SANICOM 2 evacuation pump, reference 04COM2M, is a robust solution specifically designed to handle grey water in heavy-duty commercial applications. This system is ideal for small commercial units such as bars, restaurants, laundries, hair salons, and any other environment that requires the continuous and efficient evacuation of large volumes of water.

The SANICOM 2 features two powerful 1,500 W motors each, which operate alternately to maximize their lifespan. This alternating system ensures that the motors are not overloaded and allows the equipment to manage high flow rates without interruptions. Additionally, in high-demand situations, both motors can operate simultaneously to ensure rapid evacuation. With the capacity to lift water up to 11 meters high or 110 meters away, this system offers great flexibility for installation in places where the main drain is far away or in lower floors, such as basements.

The automatic start system of the SANICOM 2 operates via a level pressure switch, which activates the main motor as soon as the water level inside the tank reaches the necessary point. This ensures that the system operates efficiently, only when needed, and prevents any risk of overflow or water accumulation.

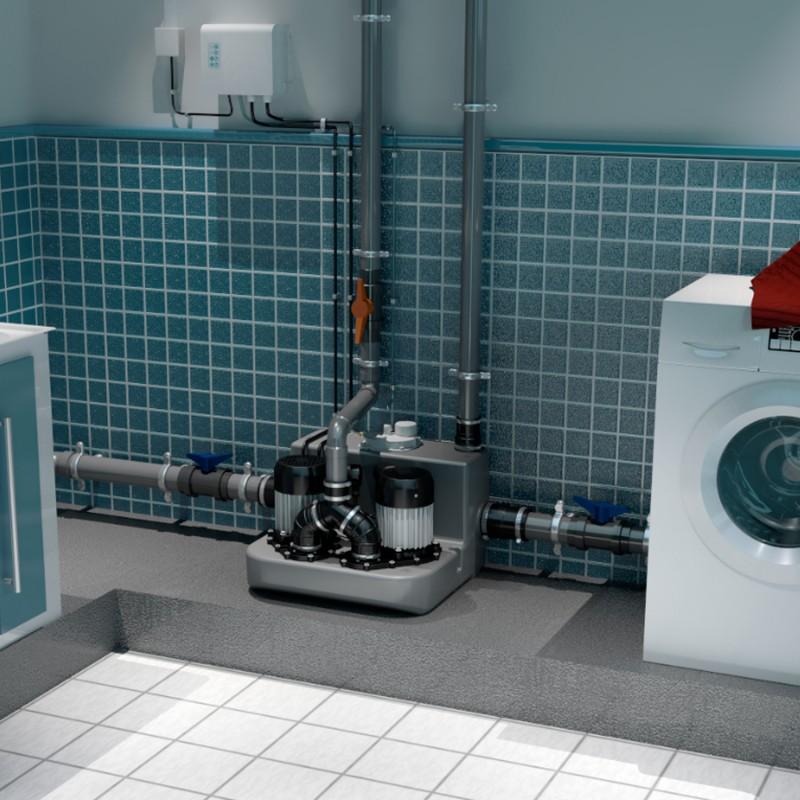

The pump has two low side inlets, designed to connect appliances such as dishwashers, sinks, washing machines, and glass washers, using 40 or 50 mm diameter pipes. This allows for simple and versatile installation, adapting to various equipment configurations in commercial kitchens or laundries. Additionally, it is fully capable of handling temperatures of up to 90°C, which is crucial in commercial environments where hot water and cleaning chemicals are used intensively.

The evacuation of wastewater is carried out through a 50 mm diameter pipe, equipped with a pre-installed elbow with a non-return valve, which prevents water from flowing back into the system, ensuring a constant and safe flow. To further optimize the installation, it is recommended to add shut-off valves on the inlet and outlet pipes, which facilitates maintenance and repair tasks.

One of the standout features of the SANICOM 2 is its focus on safety and reliability. The pump includes an external alarm system that allows monitoring of the device's operation, alerting the user to any failure or unusual situation. This alarm system provides greater peace of mind in continuous use environments, where an interruption in the evacuation of wastewater could cause significant operational issues.

Technical specifications of the SFA SANICOM 2:

• Number of motors: 2
• Power absorbed per motor: 1,500 W
• Power returned: 1,050 W
• Supply voltage: 230 V
• Frequency: 50-60 Hz
• Protection index: IPX4
• Maximum HMT (lifting height): 11 meters
• Maximum flow rate: 16 m³/h
• Diameter of inlets: 40 mm, 50 mm, 80 mm
• Diameter of outlet: 50 mm
• Maximum temperature of pumped liquid: 90°C (for 5 minutes)
• Total volume of tank: 34 L
• Usable volume: 13 L
• Activation level (ON/OFF): 145/60 mm
• Alarm level: 215 mm
• Gross weight: 26 kg
• EAN code: 3308815082868

The SANICOM 2 has been designed to provide high performance in collective and intensive use environments, where the evacuation of grey water is a constant necessity. With its ability to handle high temperatures, large volumes of water, and high flow rates, this pump is an excellent choice for commercial installations where efficiency and reliability are priorities.
