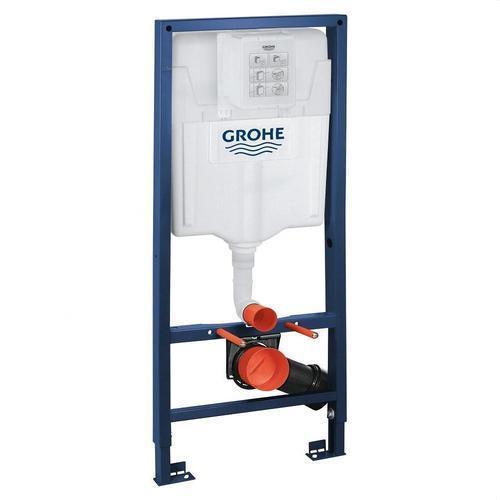

Grohe Rapid SL Frame for Wall-Hung Toilet at 1.13 Metres Height

The Grohe Rapid SL frame for wall-hung toilet, reference 38528001, is designed to provide a quick, stable, and efficient installation in any bathroom. With a height of 1.13 metres and a robust structure capable of supporting up to 400 kg, this system is ideal for those seeking a reliable and quality solution for installing wall-hung toilets. Additionally, its concealed GD2 cistern and advanced water-saving and noise reduction technologies make this frame a perfect choice for modern bathrooms.

Quick and flexible installation with GROHE QuickFix

The GROHE QuickFix system is designed to facilitate quick and hassle-free installation, whether on solid walls or hollow walls. This makes the frame highly versatile, allowing installation in various bathroom configurations. Furthermore, if wall mounting is required, wall anchors (38 558 00M) can be purchased separately. The frame comes completely pre-assembled, reducing installation time, and is compatible with the mounting of wall-hung toilets, which allow easier access for cleaning.

Certified stability and safety

This frame has been TÜV approved and has proven capable of supporting up to 400 kg of weight, ensuring a safe and durable installation for any wall-hung toilet. It includes 2 bolts with nuts allowing the toilet bowl to be hung, with an adjustable distance between the bolts of 180 to 230 mm, making it compatible with most toilets.

Concealed GD2 cistern with Dual Flush and water saving

The frame comes equipped with a concealed GD2 cistern with a flush adjustment of 6 to 9 litres, factory-set to provide a flush of 6 litres and 3 litres in Dual Flush mode. This function helps to reduce water consumption by up to 50%, improving efficiency without compromising performance. Additionally, the pneumatic discharge valve AV1 allows for Dual Flush or single flush options, depending on the user's needs.

GROHE Whisper technology for noise reduction

The Grohe Rapid SL frame is equipped with GROHE Whisper technology, ensuring extremely quiet operation. Thanks to the low-noise fittings and independent piping, the system minimises noise transmission to adjacent rooms, making it an excellent choice for installations in bathrooms near bedrooms or common areas.

Additional features

The cistern is insulated against condensation, preventing moisture build-up and dripping on the walls, ensuring a clean and trouble-free installation. Moreover, the cistern has 4 connection inlets that can be configured from the left, right, rear, or top, providing total flexibility during installation. The system allows for both vertical and horizontal mounting of the flush plate and is compatible with small flush plates with the additional accessory 40 911 000 (sold separately).

Technical product details:

• Manufacturer: Grohe
• Reference: 38528001
• Model: Grohe Rapid SL frame for wall-hung toilet (1.13 metres)
• Concealed cistern: GD2, 6-9 litres
  • Factory setting: 6 l and 3 l (Dual Flush)
  • Pneumatic discharge valve AV1
• Dimensions: 1.13 metres in height
• Load capacity: Supports up to 400 kg
• Additional components:
  • 2 bolts with nuts (adjustable distance of 180 to 230 mm)
  • PP outlet elbow Ø 90 mm with PP reducer Ø 90/110 mm
  • GROHE Whisper acoustic insulation system
  • Condensation insulation
  • Compatible with small flush plates (additional accessory 40 911 000)
