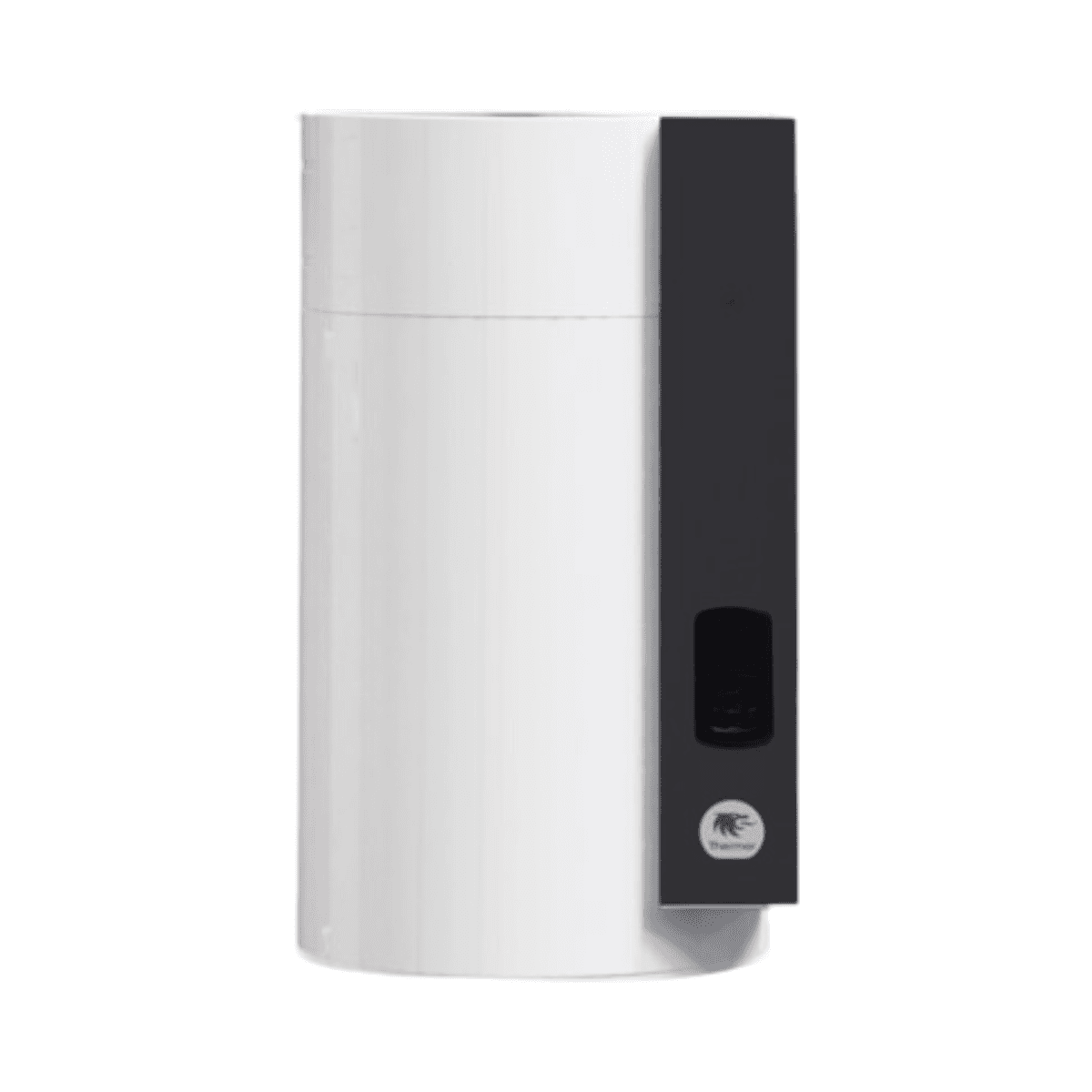

Thermor Aéromax VM R290 150-Liter Heat Pump for DHW

Heat Pump for DHW Thermor Aéromax VM R290 of 150 liters

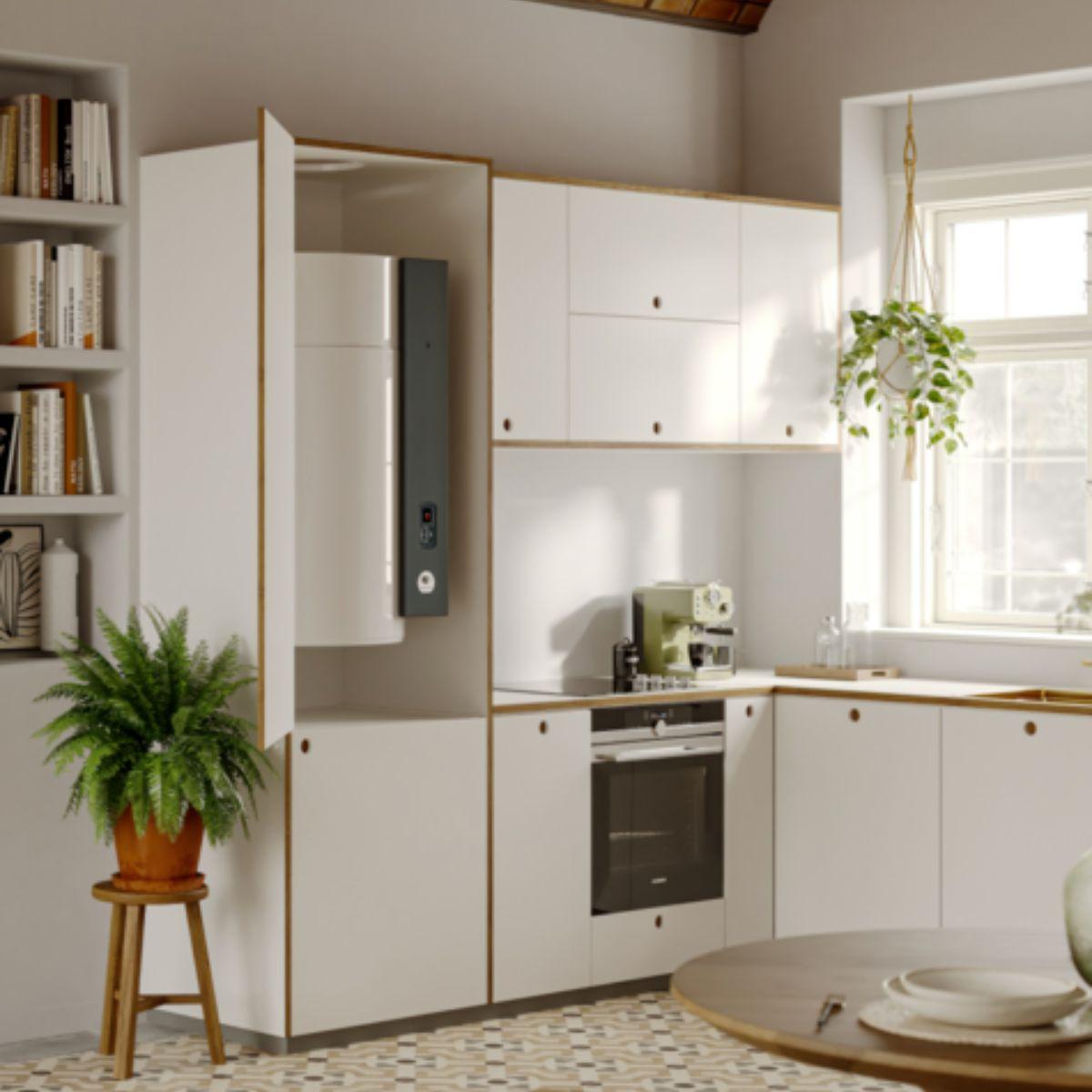

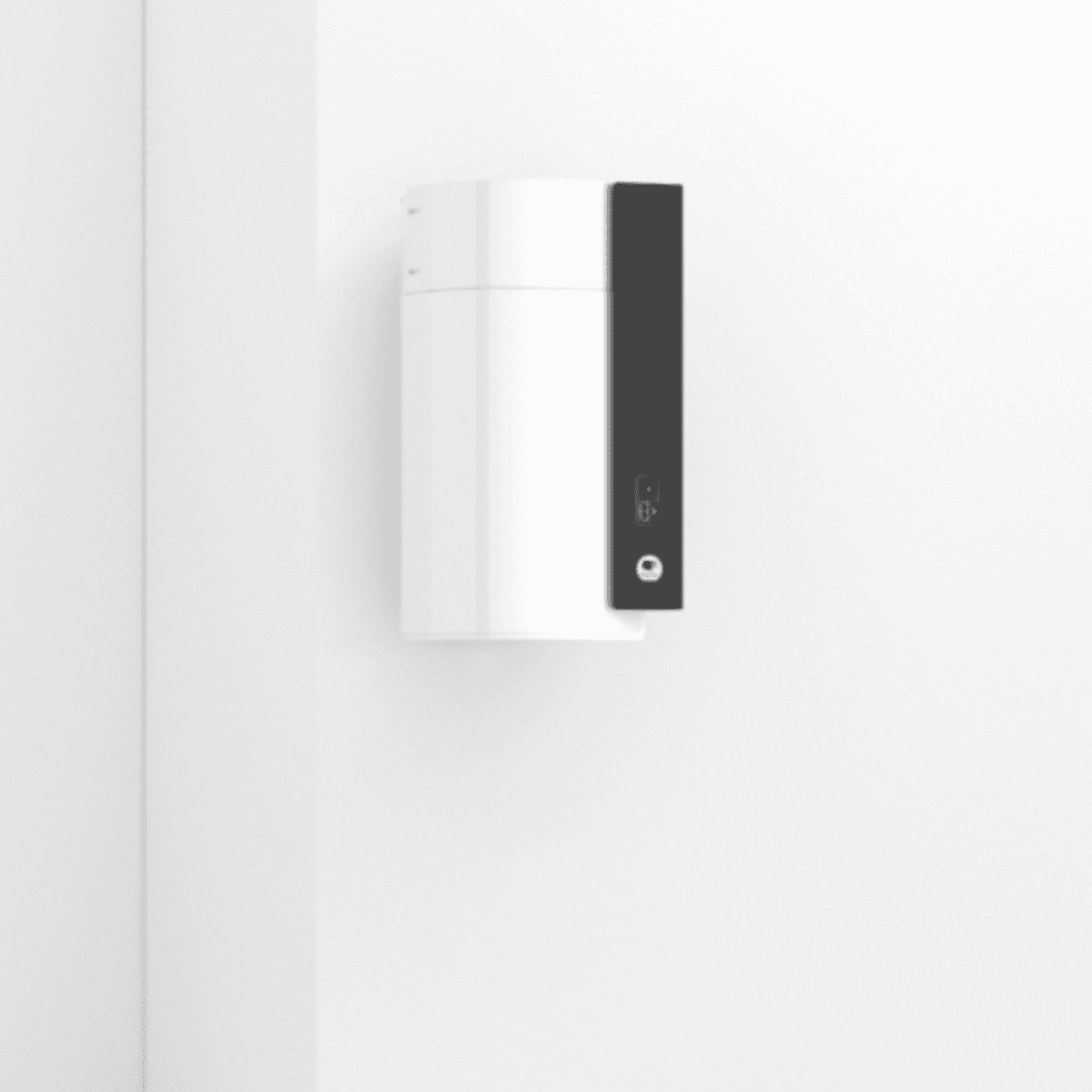

The Aéromax VM R290 is an aerothermal heat pump from Thermor's Premium series, designed for the efficient production of domestic hot water (DHW) in homes with up to five rooms. Thanks to its wall-mounted design, it can be installed both indoors and outdoors, occupying minimal space and even allowing placement over a washing machine. Its Smart system optimizes consumption by adapting to the user's lifestyle, while the compatibility with photovoltaic installations allows maximizing energy savings.

High efficiency and energy savings

This heat pump uses the refrigerant R290, a fluid with excellent thermal performance and low environmental impact. Its energy classification A+ ensures optimized consumption, with a SCOP of 3.80 at 14 °C and the ability to operate in an outdoor temperature range of -5 °C to 43 °C. Additionally, with only 38 dBA of acoustic power, it is one of the quietest options on the market.

Advanced regulation and WiFi connectivity

The Aéromax VM R290 model features four operating modes to suit any need:

• Eco: optimizes energy consumption.
• Manual: allows adjusting the temperature according to preferences.
• Turbo: accelerates DHW production when a higher supply is required.
• Absence: ideal for periods when hot water is not needed.

The integrated WiFi connectivity allows managing the equipment remotely without the need for additional accessories, offering complete control over consumption and performance.

Guaranteed durability and resistance

Thermor's ACI Hybrid system provides advanced anti-corrosion protection, ensuring the durability of the tank regardless of water quality. Its vitrified tank with liquid phase coating and stainless steel resistance guarantee a longer lifespan of the equipment. Additionally, the special high-density polyurethane foam insulation minimizes energy losses.

Easy installation and maintenance

Designed for easy and versatile installation, the Aéromax VM R290 adapts to any space. Its compact dimensions (576 mm wide, 1304 mm high, and 588 mm deep) allow installation in small spaces. Its front opening facilitates access to internal components for maintenance tasks, while its adjustable slats system prevents air bypass, ensuring optimal performance. It can be connected to an air duct up to 6 meters with two elbows for inlet and outlet.

Technical specifications

• Capacity: 150 L
• Installation: Wall-mounted
• Refrigerant: R290
• SCOP at 7 °C: 3.19 | SCOP at 14 °C: 3.80
• Acoustic power: 38 dBA
• Airflow: 150 m³/h
• Maximum duct length: 50 m
• Power supply: 230 V / 50 Hz
• Heat pump power: 300 W
• Electric support power: 1200 W
• Protection index: ACI Hybrid
• Water temperature: 50 °C - 62 °C
• Heating time at 14 °C: 3 h 40 min
• Volume of DHW at 40 °C in 8 h: 201 L
• Weight: 61 kg

The heat pump for DHW Thermor Aéromax VM R290 of 150 liters is the ideal choice for those seeking an efficient, connected, and compact system for the production of domestic hot water in larger homes.
